What is the Maximum Wall Thickness Allowed for Injection Molding?

Injection molding is a widely used manufacturing process for producing precise plastic parts, from small consumer goods to large industrial components. A critical factor in designing these parts is wall thickness¹, which impacts the part’s strength, functionality, and the efficiency of the molding process itself. Wall thickness influences cycle times, material costs, and the risk of defects like sink marks or warping. But what is the maximum wall thickness² allowed for injection molding³? The answer isn’t fixed—it varies by material, design, and application, typically ranging from 3 mm to 25 mm, with a general guideline of around 5 mm to minimize issues.

The maximum wall thickness for injection molding depends on material properties and part design, typically ranging from 3 mm to 25 mm, though most guidelines recommend staying below 5 mm to avoid defects.

This article explores these limits, material-specific recommendations, and practical considerations for thick-walled parts.

Why Does Wall Thickness Matter in Injection Molding?

Wall thickness is a cornerstone of injection molding design for several reasons:

• Cooling Efficiency⁴: Thicker walls take longer to cool, slowing production and raising costs.

• Defect Risk⁵: Thick or uneven walls can lead to sink marks, warping, or voids due to uneven cooling.

• Material Use: Thicker walls consume more material, increasing weight and expense.

• Part Performance⁶: While thicker walls can enhance strength, overdoing it can waste resources or create weak spots if not designed well.

Designers typically aim for the thinnest walls that meet functional needs, but some applications—like structural or insulated parts—require thicker walls, pushing the limits of what injection molding can achieve.

What Are the General Guidelines for Maximum Wall Thickness?

There’s no universal maximum wall thickness for injection molding—it varies based on material, part geometry, and molding conditions. However, industry standards provide a starting point:

• Typical Range: 3 mm to 5 mm for most thermoplastics⁷ to ensure efficient molding and defect-free parts.

• Upper Limits: Up to 25.4 mm for specialized materials like long-fiber reinforced plastics, though this requires advanced techniques.

A common recommendation is to keep walls below 5 mm to avoid common pitfalls like warping or prolonged cycle times. Exceeding 6 mm often introduces challenges that demand careful process optimization.

How Does Material Choice Affect Maximum Wall Thickness?

The material you choose significantly influences how thick your walls can be. Here’s why:

• Thermal Properties⁸: Materials that conduct heat well cool more evenly, supporting thicker walls.

• Shrinkage: Low-shrinkage materials reduce defect risks in thick sections.

• Flowability⁹: High-flow materials fill thick sections better, avoiding incomplete molding.

Here’s a table of maximum wall thicknesses for common injection molding materials, based on general guidelines:

Note: These are approximate ranges. Specific designs or process tweaks can push these limits higher or lower.

For instance, polycarbonate can handle up to 9.35 mm thanks to its strength and flow properties, while long-fiber reinforced plastics can reach 25.4 mm due to their enhanced stability—ideal for heavy-duty applications.

What Challenges Come with Molding Thick-Walled Parts?

Thick walls bring unique challenges to injection molding:

• Extended Cooling Times¹¹: Thicker sections retain heat longer, slowing production.

• Defect Risks¹²: Uneven cooling can cause sink marks, warping, or internal voids.

• Higher Costs: More material and longer cycles increase expenses.

• Filling Issues: Thick sections may not fill completely without adjustments to pressure or material.

Despite these hurdles, solutions exist:

• Uniform Thickness: Keeps cooling consistent.

• Ribs or Gussets: Boosts strength without adding bulk.

• Advanced Cooling¹³: Optimized mold channels reduce cycle times.

When Are Thick-Walled Parts Needed?

Thick walls are justified in specific scenarios:

• Structural Strength: Automotive parts like dashboards or door panels need rigidity.

• Insulation: Thick walls enhance thermal or acoustic insulation, as in construction components.

• Durability: Protective casings or heavy-duty parts benefit from added thickness.

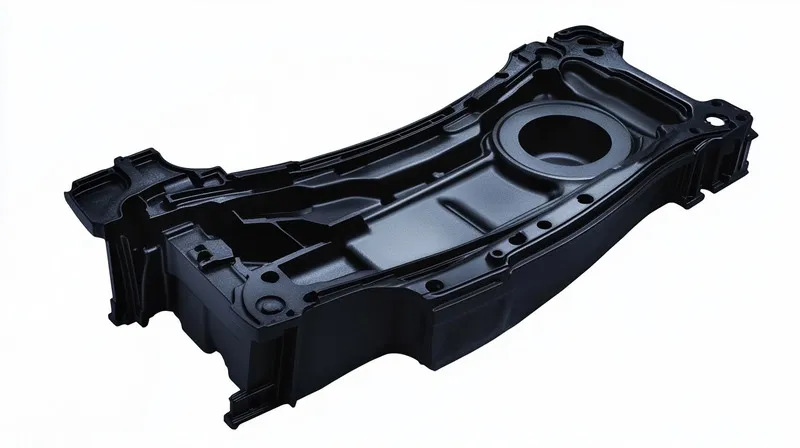

For example, in the automotive industry, thick-walled parts replace metal components, cutting weight while maintaining strength. In construction, they’re used for soundproofing or insulation.

How to Design Thick-Walled Injection Molded Parts?

If thick walls are necessary, follow these tips:

• Choose Wisely: Opt for materials like polycarbonate or reinforced plastics suited to thicker sections.

• Smooth Transitions: Avoid sharp thickness changes to prevent stress or cooling issues.

• Enhance Molds: Use efficient cooling channels or conformal cooling for even heat dissipation.

• Simulate First: Mold flow analysis can spot problems before production.

• Collaborate: Work with experienced molders to fine-tune parameters.

Are There Alternatives to Thick-Walled Injection Molding?

Sometimes, other processes suit thick parts better:

• Rotational Molding: Great for large, hollow, thick-walled items like tanks.

• Compression Molding: Works well for thermosets with thick sections.

• Casting: Offers flexibility for thick walls but lacks injection molding’s precision.

Still, injection molding excels for high-volume, complex parts, even with thicker walls, thanks to its speed and versatility.

Conclusion

The maximum wall thickness for injection molding isn’t a single number—it ranges from 3 mm to 25 mm, depending on material and design. While 5 mm is a practical guideline for most applications, advanced materials and techniques can push this limit higher. Designers must weigh the benefits of thicker walls (like strength or insulation) against challenges like defects and costs. By selecting the right material, optimizing designs, and partnering with skilled molders, thick-walled parts can be produced effectively.
