High-temperature injection molding is a specialized manufacturing process used to create parts that can withstand extreme heat, often above 300°F (149°C). This process is vital for industries like automotive, aerospace, and medical devices, where components must perform reliably under intense conditions. By leveraging advanced thermoplastics, manufacturers produce lightweight, durable parts that resist heat, chemicals, and mechanical stress.
High-temperature injection molding uses thermoplastics like PEEK, PEI, PPS, and PPSU to create heat-resistant parts for demanding applications in automotive, aerospace, and medical industries.
Understanding the best materials for this process is essential for engineers, designers, and manufacturers aiming to optimize performance and durability. Explore the properties, applications, and considerations for each material to make informed decisions for your projects.
High-temperature injection molding is only necessary for aerospace applications.False
While aerospace is a key industry, high-temperature injection molding is also critical in automotive, medical, and industrial sectors for parts exposed to extreme heat.
Materials like PEEK and PEI are cost-effective for all injection molding projects.False
These materials are more expensive than standard plastics and are typically reserved for applications where their unique properties are essential.
- 1. What Are the Common Materials Used in High-Temperature Injection Molding?
- 2. What Are the Steps in the High-Temperature Injection Molding Process?
- 3. What Are the Key Factors in Selecting High-Temperature Injection Molding Materials?
- 4. What Are the Applications of High-Temperature Injection Molding?
- 5. What Are the Differences Between High-Temperature and Standard Injection Molding?
- 6. Conclusion
What Are the Common Materials Used in High-Temperature Injection Molding?

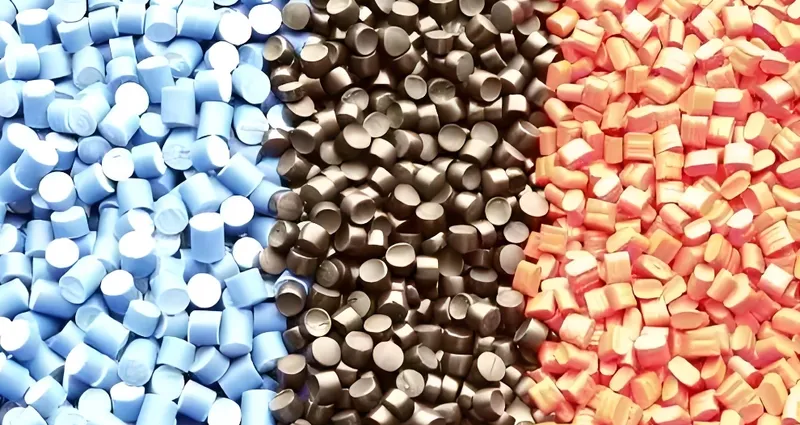

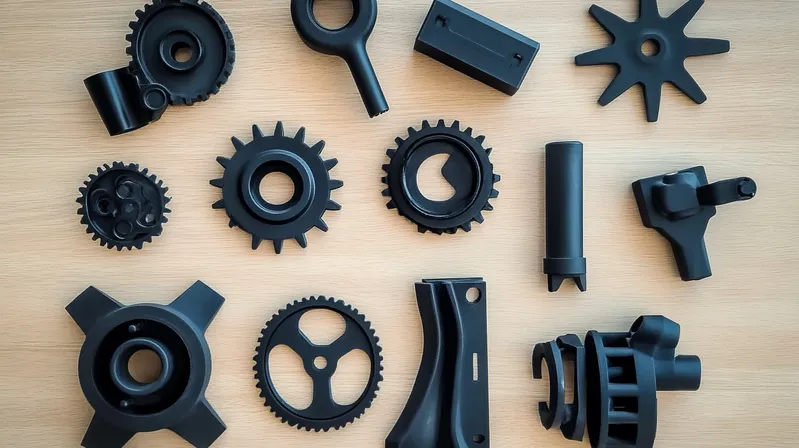

High-temperature injection molding materials are pivotal in industries requiring parts that can endure extreme heat without compromising strength or functionality. These materials offer a balance of thermal stability, mechanical performance, and chemical resistance.
The most common materials for high-temperature injection molding1 are PEEK, PEI (Ultem), PPS, and PPSU, each chosen for their ability to maintain integrity at temperatures above 150°C.
| Material | Melting Point (°C) | Continuous Service Temperature (°C) | Key Properties | Applications |
|---|---|---|---|---|
| PEEK2 | 343 | 260 | High strength, low smoke, flame retardant | Aerospace bearings, pumps |
| PEI (Ultem)3 | 218 | 170 | Ductile, chemical-resistant | Medical tools, automotive throttle bodies |
| PPS | Not specified | 220 | UV/chemical resistance | Electrical insulation, seals |
| PPSU | Not specified | 210 | Tough, sterilization-resistant | Medical trays, aircraft components |
Polyetheretherketone (PEEK)
PEEK is a high-performance thermoplastic4 renowned for its exceptional heat resistance, with a continuous service temperature of up to 260°C. It’s commonly used in aerospace for components like bearings and pumps due to its strength, low smoke emission, and flame retardancy. PEEK is also favored in medical applications for its biocompatibility5 and resistance to sterilization processes.
Polyetherimide (PEI)
PEI, often branded as Ultem, offers a balance of high heat resistance and ductility with a continuous service temperature of 170°C. It’s ideal for medical tools and automotive parts like throttle bodies, thanks to its chemical resistance6 and ease of processing, making it a versatile choice for demanding environments.
Polyphenylene Sulfide (PPS)
PPS withstands temperatures up to 220°C while offering excellent UV and chemical resistance. It’s frequently used in electrical insulation and outdoor seals, where exposure to harsh conditions is common. PPS also provides dimensional stability, making it suitable for precision parts.
Polyphenylsulfone (PPSU)
PPSU is a tough, heat-resistant material with a continuous service temperature of 210°C. It excels in medical applications, such as sterilization trays, due to its ability to endure repeated autoclaving. In aerospace, PPSU is used for components requiring both durability and heat resistance.
PEEK is the only material suitable for high-temperature injection molding.False
While PEEK is highly effective, materials like PEI, PPS, and PPSU also offer excellent heat resistance and are chosen based on specific application needs.
High-temperature materials are unsuitable for medical applications due to their rigidity.False
Materials like PEI and PPSU are specifically designed for medical use, offering both heat resistance and biocompatibility.
What Are the Steps in the High-Temperature Injection Molding Process?
The high-temperature injection molding process is critical for producing parts that endure extreme heat while maintaining structural integrity. It involves precise control of temperature, pressure, and cooling to meet stringent performance standards.
The high-temperature injection molding process includes material preparation, machine setup, injection, cooling, and ejection, with careful attention to temperature and pressure for optimal results.
Material Preparation
The process starts with drying the resin to remove moisture, which can cause surface defects or weaken the part. For instance, PEEK requires drying at 140-150°C for 2-4 hours to ensure quality.
Machine Setup
Specialized machines with high-temperature barrels and heater bands are essential. Materials like PEEK demand barrel temperatures above 400°C, requiring robust equipment to maintain consistent heat.
Injection
Molten plastic is injected into the mold under high pressure. Injection speed and pressure must be calibrated to fill the mold completely without causing defects like voids or sink marks.
Cooling
The part cools within the mold, with efficient cooling preventing warping or shrinkage. Molds often feature advanced cooling channels to optimize this step, given the high temperatures involved.
Ejection
After cooling, the part is ejected. Care is taken to avoid damage, as some high-temperature materials can be brittle when hot.
High-temperature injection molding always requires the same processing conditions for all materials.False
Each material has unique processing requirements, including specific temperatures, pressures, and cooling rates.
Proper material preparation is essential for defect-free parts.True
Drying the resin prevents moisture-related defects, ensuring the final part meets quality standards.
What Are the Key Factors in Selecting High-Temperature Injection Molding Materials?
Choosing the right material for high-temperature injection molding ensures the final part meets performance, cost, and manufacturing needs. Several factors influence this decision.
Key factors in selecting high-temperature injection molding materials include thermal stability7, mechanical strength8, cost, and compatibility with processing equipment.
Thermal Stability
The material must maintain integrity at the application’s operating temperature. PEEK, for example, withstands continuous exposure to 260°C, making it ideal for high-heat environments.
Mechanical Strength
Beyond heat resistance, the material must offer sufficient strength, stiffness, and impact resistance. PPS provides excellent rigidity, while PEI offers ductility.
Cost Considerations
High-temperature materials are pricier than standard plastics. Balancing performance with budget constraints is key, especially for large-scale production.
Processability
The material must suit the injection molding process, considering melt flow, shrinkage, and cooling rates. PEEK, for instance, requires specialized equipment and precise control.
Chemical and Environmental Resistance
Depending on the application, resistance to chemicals, UV, or moisture may be needed. PPS excels in chemically harsh environments.
Thermal stability is the only factor to consider when selecting a material.False
While crucial, mechanical strength, cost, and processability also play significant roles.
High-temperature materials are always more expensive than standard plastics.True
Engineered for extreme conditions, these materials typically cost more than commodity plastics.
What Are the Applications of High-Temperature Injection Molding?
High-temperature injection molding produces parts for extreme heat environments across multiple industries, each with unique demands.
High-temperature injection molding is used in automotive, aerospace, medical, and industrial applications for parts like engine components, bearings, and sterilization trays.
Automotive Industry
In automotive manufacturing, high-temperature plastics form under-hood components like air intake manifolds and throttle bodies, resisting engine heat while maintaining stability.
Aerospace Industry
Aerospace uses lightweight, heat-resistant materials for bearings, valves, and pumps. PEEK and PPSU reduce weight while withstanding high temperatures.
Medical Devices
Medical tools and sterilization trays require materials that endure repeated autoclaving. PEI and PPSU are favored for heat resistance and biocompatibility.
Industrial Equipment
Pumps, seals, and insulators in hot or chemically aggressive settings use high-temperature plastics. PPS is chosen for its durability and resistance.
High-temperature injection molding is primarily used in the automotive industry.False
While automotive is significant, aerospace, medical, and industrial applications also rely on this process.
Materials like PEEK and PEI are essential for medical applications due to their heat resistance.True
These materials withstand sterilization, making them ideal for medical devices.
What Are the Differences Between High-Temperature and Standard Injection Molding?
Understanding the distinctions between these processes helps in selecting the right approach for your project.
High-temperature injection molding uses specialized materials and equipment for extreme heat parts, while standard injection molding suits lower-temperature applications with commodity plastics.
Material Selection
High-temperature molding uses thermoplastics like PEEK and PEI9 with melting points above 300°C. Standard molding uses ABS, polypropylene, or nylon, melting at lower temperatures.
Equipment Requirements
High-temperature molding requires machines with enhanced heating, often exceeding 400°C, and heat-resistant molds like H13 steel10. Standard molding uses less specialized equipment.
Processing Conditions
High-temperature molding demands stricter control over temperature, pressure, and cooling. Standard molding operates under less extreme conditions.
Applications
High-temperature molding targets heat-exposed parts like engine components, while standard molding covers consumer goods and packaging.
Standard injection molding can be used for high-temperature applications with the right materials.False
Standard equipment isn’t designed for the extreme temperatures of high-temperature materials.
High-temperature injection molding requires more precise process control than standard molding.True
Extreme conditions necessitate careful management for part quality.
Conclusion
High-temperature injection molding is vital for producing heat-resistant parts in demanding environments. Materials like PEEK, PEI, PPS, and PPSU offer exceptional thermal stability and strength, though they require specialized equipment and careful consideration of cost and design. For deeper insights, consult material suppliers or injection molding experts tailored to your project.
-
