Injection molding is a cornerstone of modern manufacturing, producing precise plastic parts1 for industries ranging from automotive to consumer goods. At the heart of this process lies the cavity, a critical component that shapes the external form of the molded product. This blog dives deep into what the cavity2 is, how it functions, its importance, and its practical applications, offering a detailed yet accessible exploration for anyone looking to master this essential aspect of injection molding3.
The cavity in injection molding is the hollow space within the mold that defines the outer shape of a plastic part, working with the core to ensure precision, quality, and efficiency in high-volume production.
Understanding the cavity’s role can unlock insights into optimizing mold design and improving part quality. Let’s explore its mechanics, significance, and real-world uses.
The cavity solely determines the final shape of an injection-molded part.False
While the cavity shapes the external surface, it works in tandem with the core, which forms internal features, to define the complete part geometry.
What is the Cavity and How Does It Work?

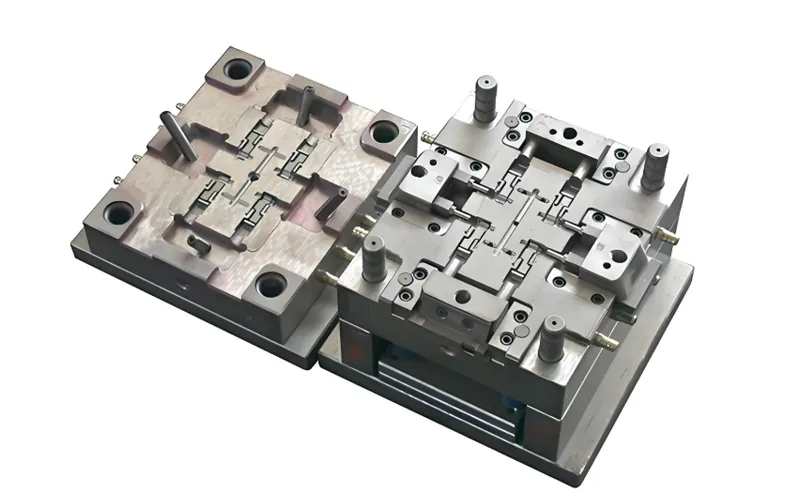

The cavity is the hollow section of an injection mold that molds the external surfaces of a plastic part. During the injection molding process4, molten plastic is injected under high pressure into this space, where it cools and solidifies into the desired shape. The cavity collaborates with the core, which shapes internal features like holes or recesses, to produce a fully formed part.
How It Works
-
Injection: Molten plastic is forced into the cavity through a nozzle at high pressure and velocity.
-
Cooling: The plastic cools within the cavity, often aided by cooling channels5, solidifying into the part’s final form.
-
Ejection: Once solidified, the mold opens, and the part is ejected using pins or strippers, leaving the cavity ready for the next cycle.
The cavity’s design—incorporating elements like draft angles and surface finishes—ensures the plastic flows smoothly, cools evenly, and releases without damage, making it a linchpin of quality production.
The cavity ensures easy part removal in injection molding.True
Proper cavity design, including draft angles and air vents, facilitates smooth ejection, preventing damage to the part.
Why is the Cavity Important?
The cavity is more than just a mold component—it’s a driver of precision, consistency, and efficiency. Here’s why it matters:
-
Precision and Quality6: The cavity dictates the external dimensions and surface finish, critical for parts like medical devices or automotive components where tolerances are tight.
-
Efficiency7: Well-designed cavities with cooling channels reduce cycle times by ensuring even cooling, boosting production rates.
- Part Integrity8: Features like draft angles and air vents prevent defects, ensuring parts eject cleanly without warping or sticking.
For example, in high-volume production of small parts like bottle caps, multi-cavity molds leverage the cavity’s design to produce multiple identical parts per cycle, enhancing cost-effectiveness.
The cavity’s design impacts production efficiency.True
Cooling channels and draft angles in the cavity reduce cycle times and ease ejection, streamlining the molding process.
Cavity design must account for material shrinkage.True
Shrinkage varies by plastic type, and cavities must be oversized accordingly to ensure dimensional accuracy.
What Are the Common Applications of the Cavity?
Cavities are integral across industries, adapting to diverse production needs:
Automotive Industry
-
Use Case: Dashboard components, trim, and exterior panels.
-
Why: Cavities ensure precision and durability for large, complex parts, often using single-cavity molds for extended cooling.
Consumer Goods
-
Use Case: Bottle caps, containers, and toys.
-
Why: Multi-cavity molds maximize output for small, high-volume items, reducing per-unit costs.
Medical Devices
-
Use Case: Syringes, surgical tools, and housings.
-
Why: Cavities ensure precision and durability for large, complex parts, often using single-cavity molds for extended cooling.
Electronics
-
Use Case: Smartphone and laptop housings.
-
Why: Complex cavities with detailed textures meet aesthetic and structural demands.
The choice between single-cavity (for larger, intricate parts) and multi-cavity (for high-volume, smaller parts) molds depends on production goals, showcasing the cavity’s versatility.
Multi-cavity molds are ideal for all production scenarios.False
While efficient for high-volume small parts, single-cavity molds are better suited for larger or complex parts needing longer cooling times.
What Are the Pros and Cons of Cavities in Injection Molding?
Injection molding with cavities offers distinct advantages and challenges:
Pros
-
High-Volume Efficiency: Multi-cavity molds produce multiple parts per cycle, slashing costs for large runs.
-
Complex Geometries: Cavities handle intricate designs unattainable by processes like 3D printing for mass production.
-
Consistency: Precise cavity design ensures uniform quality across thousands of parts.
Cons
- High Initial Cost: Complex or multi-cavity molds require significant upfront investment.
-
Maintenance Needs: Cavities wear under high pressure and heat, necessitating regular upkeep.
-
Material Challenges: High-shrinkage plastics can complicate design, risking defects if not addressed.
Compared to CNC machining, injection molding excels in volume but lacks prototyping flexibility. Against 3D printing, it offers superior finishes but less customization for small batches.
Injection molding cavities are cost-effective for all production scales.False
High mold costs make cavities less viable for low-volume runs, where alternatives like 3D printing may be cheaper.
Conclusion
The cavity in injection molding is a vital element that shapes the external form of plastic parts with precision and efficiency. From defining part geometry to ensuring smooth production, its design and function are pivotal across industries like automotive, medical, and electronics. By understanding its role—how it works with the core, its importance in quality control, and its practical applications—you can harness its potential for superior manufacturing outcomes.
-
