What Are Effective Solutions for Insufficient Mold Filling?

Do you ever think about why some products seem wrong? Products sometimes seem off. Design plays a big role. A strange shape or awkward color might cause confusion. Sometimes designers forget about the small details. These details truly matter. Bad lighting or strange textures can also create problems. People notice these issues. These things are important. Customers really deserve better designs.

Not enough mold filling damages products. Defects include short shots, rough surfaces and size problems. Adjustments solve these issues. Change the runner system. Modify injection settings. Pick suitable materials. This approach helps mold filling. Perfect mold fill is important.

I’ve experienced many headaches with this. Frustration hits when a product comes out of the mold and looks incomplete. Discovering the main reasons and exploring the details truly changes how you manufacture things. This journey really leads to perfect molded parts. Perfect parts.

How does insufficient mold filling impact product appearance?

Have you ever thought about how a small problem in mold filling might change your smooth design into something less attractive? Some details show why these flaws happen and how to solve them.

Not enough mold filling results in defects. Short shots, rough surfaces and size changes often occur. These problems spoil the look. They also weaken the product’s function.

The Effect on Looks

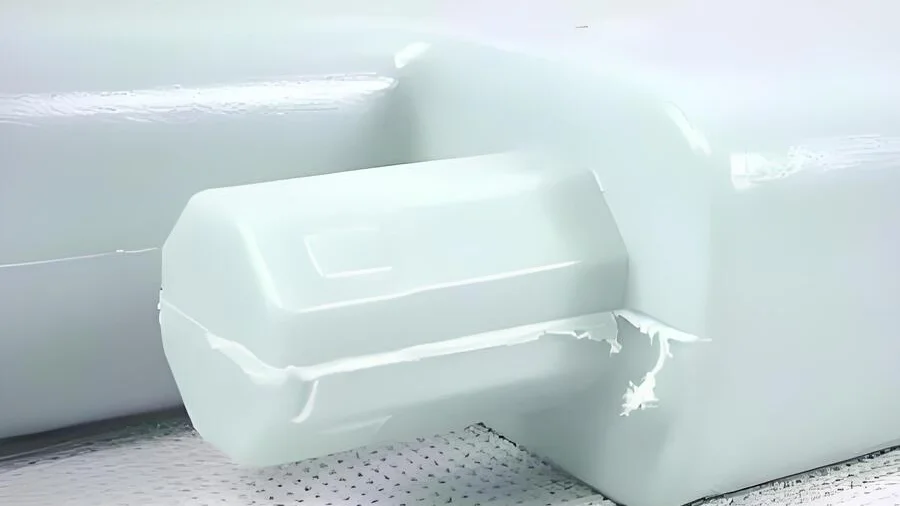

When mold cavities aren’t completely filled, several aesthetic problems can arise. The most notable is the short shot phenomenon, where sections of the product remain visibly incomplete. This often occurs in areas with complex shapes or thin walls, such as narrow handles. Parts of your creation end up incomplete, spoiling its smooth look.

Another common defect is increased surface roughness. Imagine expecting a smooth finish but getting texture like sandpaper. This happens when plastic doesn’t move well, leaving bad marks and ripples. In transparent products, this defect can significantly reduce transparency and gloss, making it a critical issue to address.

Moreover, insufficient mold filling can cause dimension deviation, where products end up smaller than their intended size. Have you ever dealt with parts that won’t fit, no matter how you twist them? This deviation is particularly problematic for parts that need to fit precisely with others.

Fixing Flaws

Optimizing Mold Design: Changing the runner system¹ greatly helps alleviate filling issues. Making the main and branch runners bigger enhances the flow of plastic melt into the cavity, reducing pressure loss and ensuring proper filling.

Adjusting gate design is also key. Picking the right gate type and positioning it appropriately allows for even filling. For instance, pin-point gates work well for thin-walled products due to their high-speed and high-pressure capabilities.

Improving Exhaust System: A well-designed exhaust is crucial for preventing defects. Adding exhaust grooves in places filled last helps air and gases escape, stopping back pressure that disrupts filling.

Process Tweaks

Injection Molding Settings: Raising injection pressure and speed helps overcome flow resistance, achieving full cavity fill; however, balance is key as too much speed might create issues like flashing.

Adjusting holding parameters by extending time and changing pressure ensures that the melt settles properly in the cavity, balancing cooling shrinkage.

Finally, adjusting barrel and mold temperatures² improves melt flow significantly aiding hard-to-handle plastics.
These strategies collectively enhance product appearance by ensuring consistent mold filling which reduces surface defects and dimensional inconsistencies.

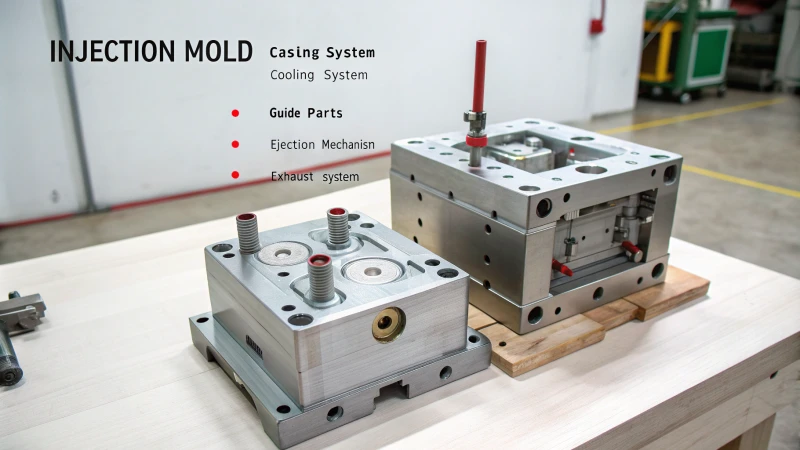

How Does Mold Design Ensure Complete Filling in Injection Molding?

Have you ever thought about how mold design affects the quality of your plastic products? It’s more important than you might realize!

Mold design is very important for full filling in injection molding. Good design reduces errors like short shots and size errors. It focuses on things like runner systems, gate location and exhaust features. This approach gives high-quality plastic parts.

Importance of Optimized Runner Systems

I remember my first struggle with bad mold filling – complete chaos. The problem? A bad runner system. A well-planned runner system allows plastic to flow smoothly into the mold. Changing the runner’s size and shape helps spread material evenly. I discovered increasing the main runner diameter from 3mm to 5mm really boosted flow efficiency.

Learn more about runner system adjustments³.

Strategic Gate Design

Designing gates is like planning a chess game. For thin products, a pin-point gate is best, moving material quickly and evenly. Big flat items might need side or fan gates, like your trusty rook or bishop.

• Gate Placement: Put them in thicker parts to use flow power.
• Number of Gates: Add more for tricky shapes.

Explore gate design strategies⁴ for top results.

Improving the Exhaust System

A good exhaust system feels like a breath of fresh air for your mold. It stops back pressure that slows down filling. Add exhaust grooves or use breathable materials, such as breathable steel, for great results.

• Exhaust Groove Depth: 0.02-0.04mm
• Positioning: At corners or ends of ribs

Find tips on exhaust system improvements⁵.

Impact on Product Appearance and Performance

I’ve seen poor mold filling cause problems like short shots and rough surfaces. Proper mold design reduces these issues, helping products meet dimensions. These designs very much matter for assembly.

Consider the consequences of insufficient mold filling⁶ to improve quality control.

Good mold design not only improves appearance but also product strength. Changing designs and parameters is crucial for injection molding success.

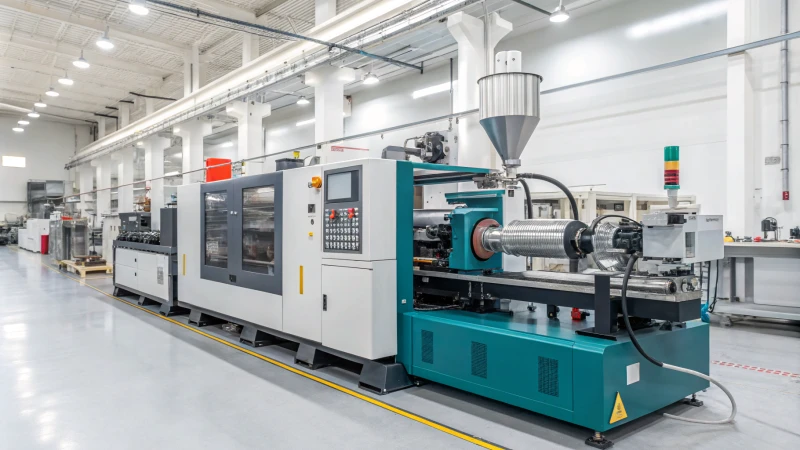

How Can Injection Molding Process Parameters Be Optimized?

Entering the world of injection molding resembles opening a complicated puzzle of factors. These factors affect product quality and efficiency. Product quality and efficiency depend on these factors.

To improve injection molding, I adjust settings such as pressure, speed and temperature. These alterations greatly help mold filling. They really decrease problems like incomplete parts and rough surfaces.

Optimizing Injection Pressure and Speed

When I first worked on improving injection molding, changing the injection pressure and speed really changed everything. Higher pressure helps the plastic liquid move smoothly, overcoming any blockage. Too much pressure, however, brings new issues. It’s all about balance.

For thin-walled products, higher speeds may be beneficial. However, for complex shapes, a moderate pace might be preferable. Testing variations is key to finding the optimal balance.

Adjusting Holding Parameters

Adjusting holding time and pressure was another lesson in patience. Extending the holding time from 5-10 seconds to 10-15 seconds let my plastic fit tightly in the mold, compensating for any shrinkage during cooling. Lowering the holding pressure to around half of the injection pressure kept the density uniform.

• Holding Time: Extend from 5-10s to 10-15s.
• Holding Pressure: Set at 40%-60% of injection pressure.

These changes really matter when I work on parts that need a perfect fit, like gears or buckles.

Temperature Control in Molding

Temperature changes were a big discovery. Raising barrel temperature improved melt fluidity, but too much heat leads to decomposition.

• ABS: Raise from 200°C to 220°C -240°C made a big difference.

For difficult materials like polycarbonate, changing mold temperatures from 80°C to 100°C -120°C makes them fill more cooperatively during molding.

Material Selection and Additives

Choosing the right materials or additives is like picking the right gear for a climb. Selecting materials with better fluidity, like switching from HDPE to PP, improved results significantly.

Adding zinc stearate to lower melt thickness was a trick I learned, though it’s really important to use the right amount – usually between 0.1%-0.5% of material weight.

By constantly trying these adjustments, I improved product quality while reducing defects. Monitoring systems became my helpers, providing real-time feedback that lets me shift dynamically, keeping the molding process accurate. Injection molding methods are complex but rewarding. With persistence and precision, reaching superior mold filling and high-quality products is entirely achievable.

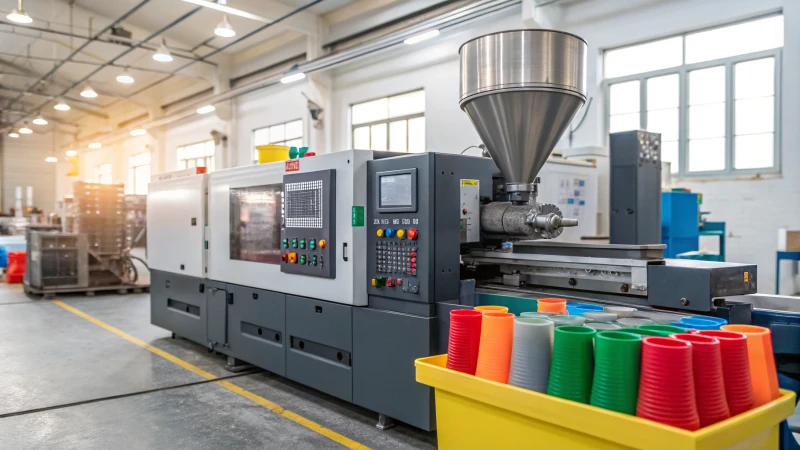

How Can I Improve Mold Filling Efficiency Through Material Choices?

Ever wondered if there’s something missing in your injection molding?

Selecting materials with high flowability, such as polypropylene (PP), improves mold filling efficiency in injection molding. Additives like zinc stearate help. These choices lower melt viscosity. Complete cavity filling occurs. Defects decrease.

Understanding Material Flow Properties

I recall when I first understood the importance of material flow properties in my work. It felt like wearing glasses for the first time, seeing everything clearly. Materials that flow well fill mold spaces more efficiently, reducing the chance of defects like the short shot phenomenon⁷. I often picked polypropylene (PP) over high-density polyethylene (HDPE) because PP flows better.

The Role of Additives

Adding the right additives is like adding a special ingredient to a dish. Suddenly, everything works better. For example, zinc stearate changes melt viscosity. This discovery was a turning point. Adding 0.1%-0.5% by weight allows the plastic to flow really well into complex molds, minimizing issues like increased surface roughness⁸. It really helps.

Impact on Product Appearance

Efficient mold filling significantly impacts product appearance. I have faced many troubles with molds not filling properly; incomplete products were always a reminder of mistakes. Filling molds efficiently uses less material and greatly improves how a product looks. Choosing the right material ensures that even intricate parts of the design are fully formed, avoiding dimension deviation⁹ and improving aesthetics.

Moreover, consistent quality in production batches is vital. Matching thermal properties with molding conditions leads to better outcomes; it’s important.

Exploring Material Innovations

Discovering new materials in polymer science brings unique excitement. Bio-based polymers improve material flow and offer environmental benefits—a win for both performance and nature. These insights into choosing and improving materials have led to big improvements in mold filling efficiency, resulting in higher product quality and lower production costs.

Conclusion

Insufficient mold filling leads to defects like short shots, rough surfaces, and dimension deviations. Optimizing design and process parameters can enhance product quality in injection molding.
