What Are Effective Solutions for Short Shot Issues in Injection Molding?

Have you ever felt the frustration of inspecting a product only to find it marred by incomplete fills? It’s a common challenge in injection molding—short shots. Let’s dive into understanding this issue and uncover effective solutions together.

Short shots occur when the plastic melt does not fully fill the mold cavity, often due to poor plastic fluidity, insufficient drying, or improper machine settings. Solutions include selecting better materials, optimizing mold design, and adjusting process parameters like temperature and pressure.

But don’t worry! While it may seem daunting, addressing short shots requires a balance of different factors. Let’s explore expert recommendations and best practices that can elevate your injection molding operations.

How Do Material Properties Affect Short Shots?

Material properties play a crucial role in determining the success of the injection molding process, impacting both fluidity and defect rates.

Material properties influence short shots primarily through fluidity and moisture content. Poor fluidity restricts the melt flow, while excess moisture leads to bubbles, both resulting in incomplete mold filling. Opting for materials with superior fluidity and ensuring thorough drying can significantly reduce short shots.

The Role of Material Fluidity

Material fluidity is a critical factor in the injection molding process, dictating how well a plastic can fill a mold cavity. Poor fluidity means that the plastic melt struggles to reach all areas of the mold, often leading to short shots. Materials like Polypropylene (PP) and Acrylonitrile Butadiene Styrene (ABS) offer varying fluidity levels, affecting their suitability for complex molds.

• Example: A high-fluidity material, such as PP, can effortlessly fill intricate molds without requiring excessive pressure or temperature adjustments.

Choosing a plastic with adequate fluidity ensures that the melt flows uniformly, reducing the chances of short shots. For products with detailed geometries, selecting materials with higher fluidity can prevent defects and improve overall quality.

Importance of Material Drying

Material drying is essential for removing excess moisture from plastics before they undergo the injection molding process. Moisture trapped in the material can turn into steam during heating, creating bubbles and voids that disrupt the flow of the melt, causing short shots.

• Solution: Utilize specialized drying equipment to maintain ideal moisture levels and prevent flow interruptions.

Thorough drying not only minimizes defects but also enhances the mechanical properties of the final product. Incorporating pre-molding drying processes is particularly crucial for hygroscopic materials like Nylon and Polycarbonate.

Selecting the Right Material

The choice of material significantly affects short shots. Selecting plastics known for their excellent flow characteristics can reduce the occurrence of these defects.

Ensuring that your selected material aligns with the product’s requirements and design complexities is crucial. Consideration of both fluidity and drying needs will lead to fewer short shots and higher production efficiency.

By understanding how material properties impact short shots, manufacturers can make informed decisions that lead to superior product quality and reduced defect rates. For further guidance on material selection, consult resources on choosing materials for injection molding¹.

What Mold Design Changes Can Prevent Short Shots?

Mold design plays a crucial role in preventing short shots, a common defect in injection molding. What are the key design changes to consider?

To prevent short shots, mold design should focus on enlarging gate sizes, optimizing runner design, and improving exhaust systems. These changes facilitate better plastic flow, reduce resistance, and ensure proper venting, which collectively prevent incomplete filling of mold cavities.

Importance of Gate Size

A critical aspect of mold design is the gate size, which determines the flow speed and volume of the plastic entering the cavity. Small gate sizes can restrict this flow, leading to short shots. By increasing the gate size, manufacturers can ensure more efficient filling of the mold, reducing the chances of defects.

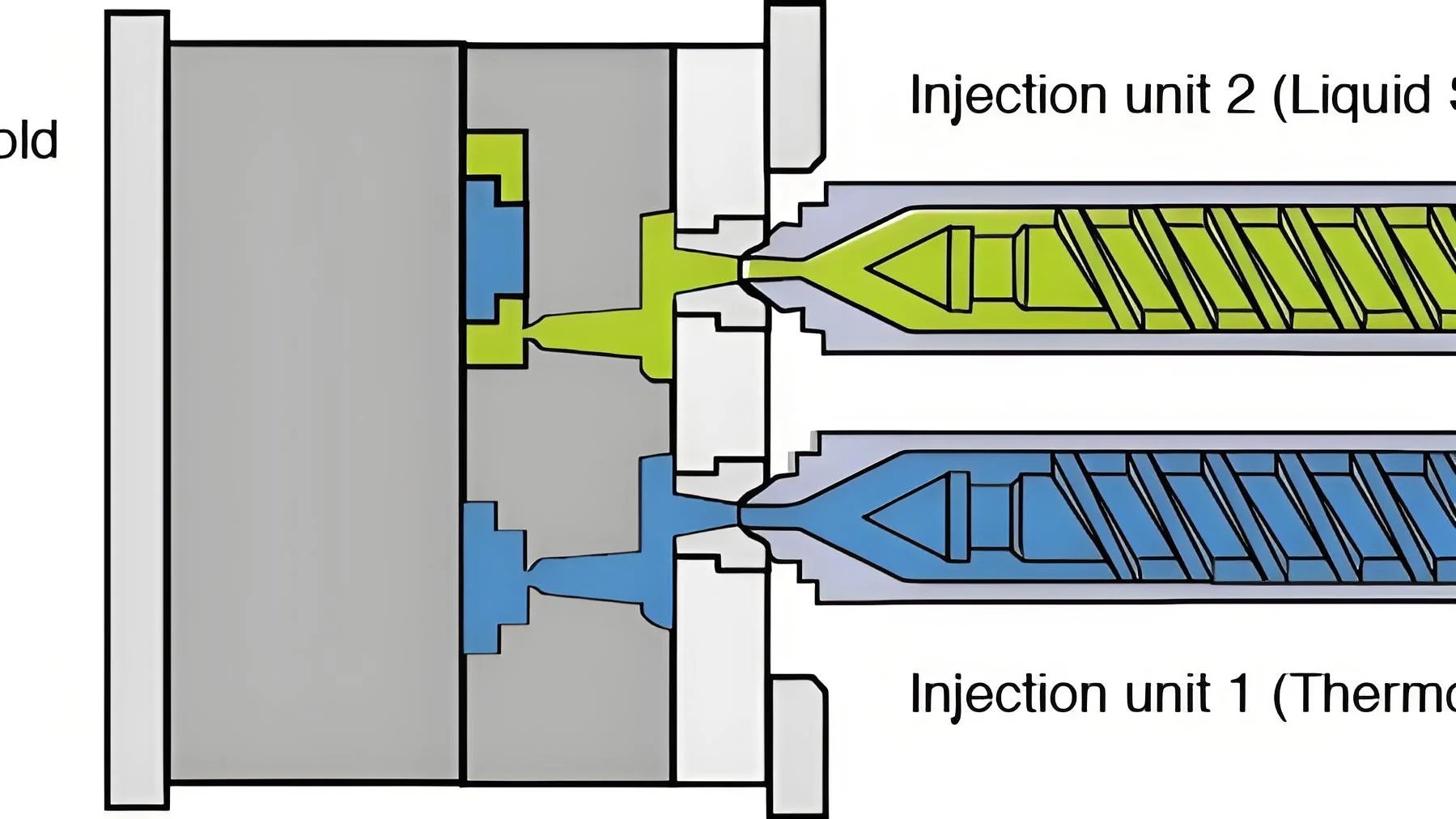

Optimizing Runner Design

The runner system is like a highway for plastic melt. If it’s too narrow, long, or curved, it can significantly increase resistance against the flowing plastic. An optimized runner design minimizes this resistance by ensuring that the path is as direct and smooth as possible. This not only helps in achieving complete mold filling but also enhances overall cycle time.

For further insights on runner design optimization², you may want to explore how engineering best practices can be applied to improve production efficiency.

Enhancing Exhaust Systems

Proper venting is essential in mold design to prevent air traps which can cause short shots. Implementing effective exhaust grooves or holes helps in releasing trapped gases during the injection process. This improvement ensures that air does not block the path of the plastic melt, allowing for complete filling of the cavity.

To delve deeper into exhaust system improvements³, understanding various techniques for optimizing air release can prove beneficial.

Integrating Advanced Features

Some advanced molds incorporate features like collapsible cores and hot runner systems that further refine the molding process by enhancing plastic flow and reducing cooling time. These technologies can be particularly useful when dealing with complex part geometries or high-volume production requirements.

Learning more about advanced mold features⁴ can provide innovative solutions that address short shot issues effectively.

By focusing on these key aspects of mold design—gate size, runner optimization, and effective venting—manufacturers can significantly reduce the occurrence of short shots, leading to improved product quality and operational efficiency.

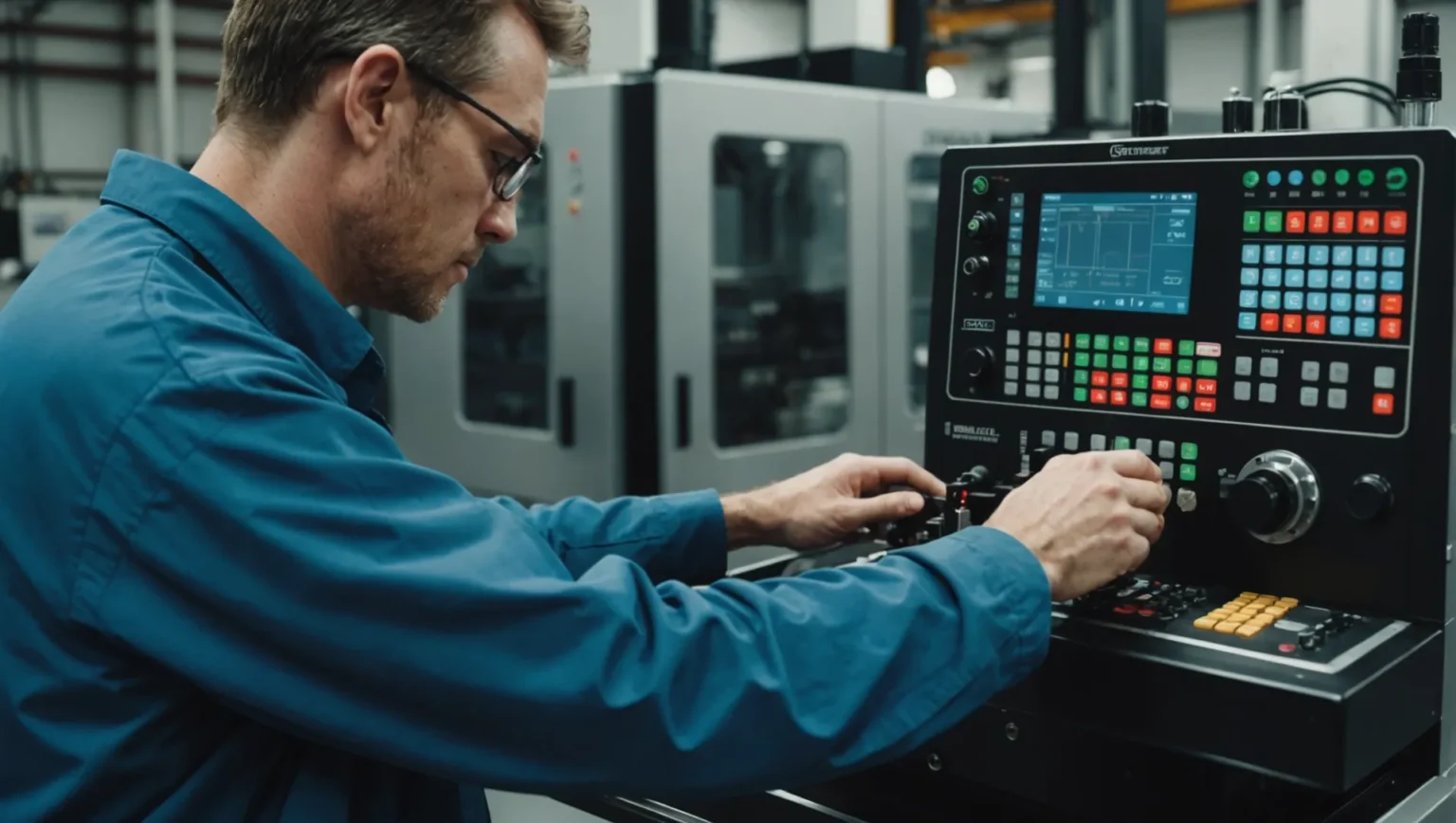

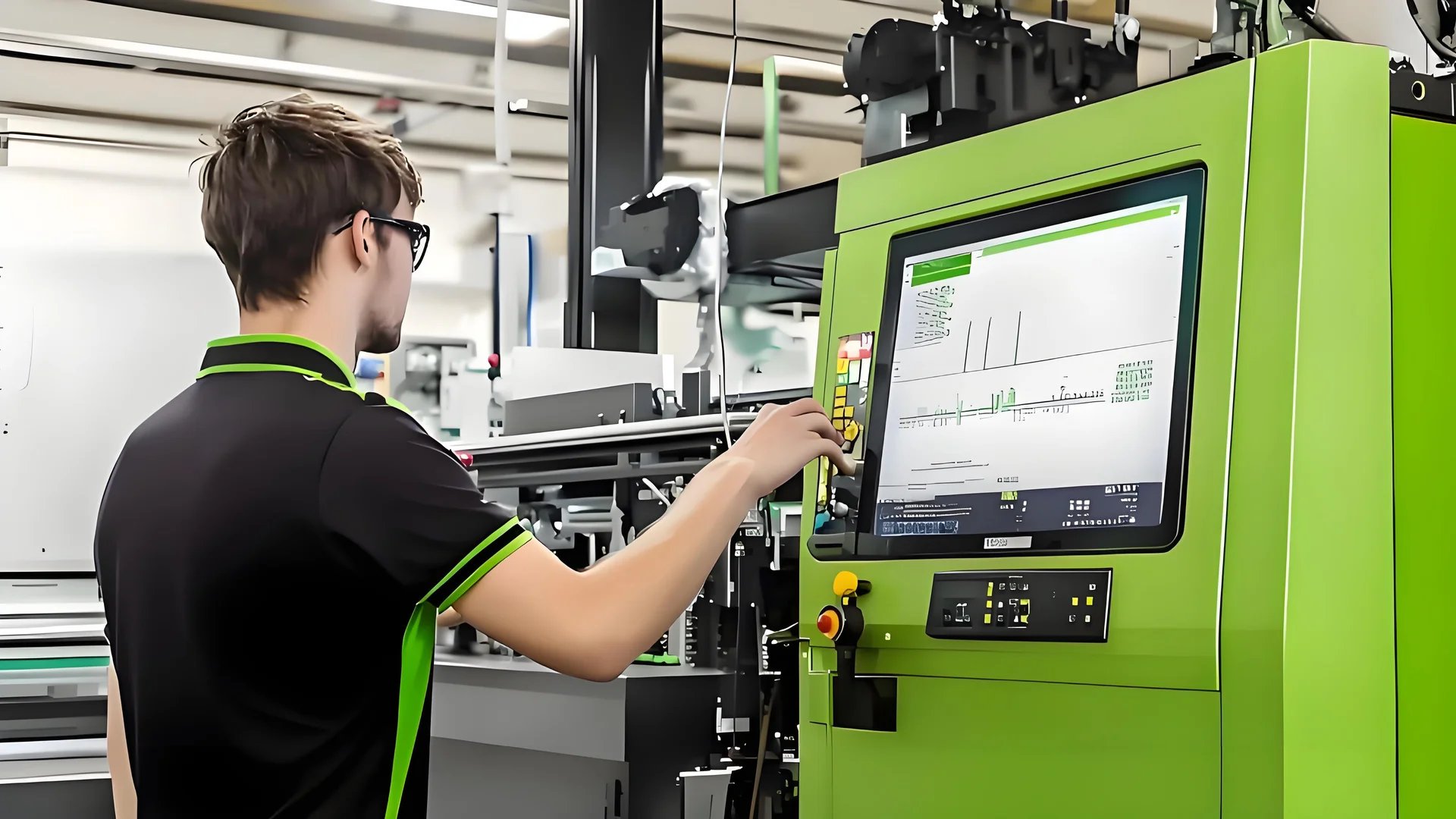

How Can Adjusting Machine Settings Reduce Short Shots?

Fine-tuning machine settings can play a crucial role in eliminating short shot defects in injection molding.

Adjusting machine settings such as injection pressure, speed, and temperature can significantly reduce short shots by ensuring the plastic melt flows smoothly and fills the mold cavity completely.

Understanding the Role of Machine Settings

Machine settings are pivotal in determining how efficiently the plastic melt flows into and fills the mold cavity. By modifying specific parameters, you can effectively address the issues leading to short shots.

Injection Pressure

One of the primary factors contributing to short shots is insufficient injection pressure. The pressure needs to be adequately high to push the plastic melt through the mold cavity completely. Increasing the injection pressure⁵ helps in overcoming resistance within the mold and ensures that even intricate areas are filled.

Injection Speed

Speed plays a crucial role, particularly when dealing with complex molds. A low injection speed can cause the plastic melt to cool down prematurely, which reduces its fluidity and results in short shots. By increasing the injection speed⁶, the melt remains at a high enough temperature to fill the cavity more efficiently.

Temperature Settings

Both mold and barrel temperatures are significant contributors to the occurrence of short shots. A lower-than-optimal mold temperature can cause rapid cooling of the melt, whereas a low barrel temperature may result in improper melting. Adjusting these temperatures to suit the specific plastic material used can enhance fluidity and reduce short shot occurrences. Check and adjust the mold temperature⁷ and barrel temperature⁸ according to the material’s properties and desired product specifications.

By focusing on these critical settings, manufacturers can significantly reduce instances of short shots and improve overall product quality. Balancing these factors requires careful analysis and adjustments tailored to each specific situation.

Are There Innovative Technologies Addressing Short Shot Issues?

Emerging technologies are revolutionizing how manufacturers tackle short shot issues in injection molding, offering innovative solutions to enhance product quality.

Innovative technologies such as advanced simulation software, smart sensors, and AI-driven predictive maintenance are transforming how short shot issues are identified and resolved in injection molding processes.

Advanced Simulation Software

The use of advanced simulation software⁹ enables manufacturers to predict potential short shot issues before production begins. By creating digital twins of molds and processes, these tools can simulate various scenarios to identify optimal settings and design improvements. This proactive approach helps in making necessary adjustments before encountering real-world problems.

Smart Sensor Technology

Smart sensors are becoming a crucial component in detecting and resolving short shots. These sensors monitor critical parameters such as pressure, temperature, and flow rates in real time. By providing immediate feedback, they help operators make quick adjustments to prevent short shots from occurring.

For instance, pressure sensors installed at key points within the mold can detect deviations that might lead to incomplete filling. Operators can then respond by adjusting injection speed or pressure to ensure complete cavity filling.

AI-Driven Predictive Maintenance

Artificial Intelligence (AI) is playing a pivotal role in minimizing short shot occurrences through predictive maintenance. AI algorithms analyze historical data from injection molding machines to predict when a component might fail or require maintenance. This foresight allows manufacturers to address issues before they affect production quality.

AI can also optimize the injection process by continuously learning from past cycles to adjust parameters dynamically, ensuring consistent product quality and reducing the chances of short shots.

Additive Manufacturing for Prototyping

Additive manufacturing, or 3D printing, assists in prototyping molds quickly and cost-effectively. By testing these prototypes with different materials and designs, manufacturers can identify potential short shot risks and rectify them before committing to expensive, large-scale mold production.

Integrating IoT in Injection Molding

The Internet of Things (IoT)¹⁰ provides a connected ecosystem where machines communicate seamlessly. IoT-enabled devices can share data across systems to provide comprehensive insights into the entire production process. This integration allows for real-time adjustments and alerts, significantly reducing the risk of short shots.

These innovative technologies offer promising solutions to the persistent problem of short shots in injection molding. By leveraging advancements such as simulation software, smart sensors, AI, and IoT, manufacturers can not only enhance their production efficiency but also achieve higher quality standards.

Conclusion

Understanding short shots is crucial for enhancing product quality. By implementing these solutions, you’ll not only improve efficiency but also reduce defects.
