Have you ever worked hard on a project and then faced annoying technical problems?
Study detailed product and mold analyses to deal with technical challenges in multi-stage injection molding machines. Use simulation tools. Use precise control systems. Tune speed algorithms carefully. Maintain machines regularly. Upkeep is vital.
I remember the first time I had the tough job of improving a tricky injection molding process. It felt like solving a big puzzle, with every piece showing tiny details of products and molds. First, I carefully looked at the shape and structure. It was like putting together an automotive part with thin and thick walls. Past experiences and simulation software gave me a glimpse into the future. This saved time and resources.
Step-by-step fixing became my routine. Each small change and observation felt like a success, slowly making things perfect. Using advanced control systems was like moving from a bike to a finely crafted race car. Every part, from proportional valves to servo valves, helped achieve smooth speed changes.
A material property database helped me stay flexible with new materials. Online checking and smart changes became my trusty partners, ready to handle any changes in material properties or mold shapes. Regular equipment maintenance prevented sudden problems in my workflow.
These strategies might sound complex, but they come from real-world practice. Just like yours. With consistent work and a careful plan, solving these challenges is not only possible but also quite satisfying.
Simulation analysis reduces errors in injection molding.True
Simulation analysis helps predict potential issues, minimizing errors.
Regular maintenance is unnecessary for injection machines.False
Regular maintenance prevents breakdowns and ensures machine efficiency.
- 1. How Can We Simplify Complex Parameter Settings?
- 2. How Can High Process Control Precision Be Achieved?
- 3. Why is adaptability to material properties and mold structure crucial?
- 4. How Can I Ensure My Equipment Stays Reliable and Stable?
- 5. How does simulation analysis improve multi-stage injection molding?
- 6. Conclusion
How Can We Simplify Complex Parameter Settings?
Handling complicated parameter settings often resembles solving a difficult puzzle. This is particularly true in fields such as injection molding. Simple strategies turn this overwhelming task into a manageable one. They do. These strategies can help. Very practical.
Effective solutions for dealing with tricky parameter settings include detailed studies, using lessons from before, step-by-step debugging, using smart control systems and adjusting adaptively. These strategies deliver precise management. They bring top performance in different areas.
In-Depth Analysis of Products and Molds
Understanding the intricate details of products and molds is fundamental to setting precise parameters. For instance, analyzing automotive parts requires identifying thin and thick walls’ distribution and internal structures. By doing so, one can determine injection positions and speeds.
Aspect | Considerations |
---|---|
Shape | Complexity and symmetry |
Structure | Internal features |
Size | Scale and dimensions |
The first time I set parameters for a car part with a complex shape, the task felt mysterious. Carefully checking thin and thick walls took time. Every internal part needed a close look before picking injection spots and speeds. It’s like solving a puzzle where each piece must fit just right.
Learning from Experience and Simulation Analysis
Thinking back to my early days, I see how valuable experience truly is. Each project taught me what worked and what didn’t. Using injection molding simulation software1 helps predict melt flow, offering a more accurate parameter setting foundation. It’s like seeing the future, saving much time and guesswork.
Step-by-Step Debugging and Optimization
Setting parameters without a plan can be a mess. Start with a basic range, then iteratively observe injection effects like filling conditions and surface quality to fine-tune parameters for optimal results. Slowly find the best mix, like adding spices to food until it tastes perfect.
Advanced Control Systems
One exciting update was using high-tech control systems—like proportional valves—that enable quick, accurate responses. This technology ensures precise speed and pressure control, crucial for maintaining high process control precision2. Technology truly brings both precision and efficiency.
Adaptive Adjustment through Online Monitoring
Real-time monitoring is a great help; it’s like having someone watch things for you. Adjust temperatures and pressures quickly through real-time monitoring of parameters like temperature and pressure, ensuring that multi-stage injection parameters are tailored to material properties or mold structure changes.
Everything stays in top shape.
Regular Maintenance and Equipment Upgrades
Regular maintenance is key—similar to changing your car’s oil—which is crucial for smooth performance. Routine checks ensure equipment reliability by implementing strict maintenance schedules that include regular inspections, cleanings, and component upgrades to improve equipment performance while avoiding unexpected problems.
By integrating these strategies into practice, professionals can tackle the challenges associated with complex parameter settings efficiently and effectively. Explore more resources on parameter optimization3 for deeper learning and skill improvement.
Simulation software predicts melt flow in molding.True
Simulation software accurately forecasts melt flow patterns, aiding parameter settings.
Regular maintenance has no impact on equipment performance.False
Regular maintenance ensures equipment reliability and prevents production disruptions.
How Can High Process Control Precision Be Achieved?
Have you ever been amazed by how things become so perfect? Behind every flawless item hides the magic of precise control. Technology and strategy work together like a dance.
High process control precision needs advanced control systems, careful adjustment of algorithms and real-time monitoring. These methods hold variables in tight control, which heightens product quality and operational efficiency. Quality soars high. Efficiency climbs up.
Advanced Control Systems
During my journey in mold design, I realized that using advanced control systems changes everything. Picture a control system that is so accurate it feels like it is part of your own body, offering immediate feedback and changes. High-precision systems with parts like proportional or servo valves allow for instant adjustments to injection speed and pressure. This is very important for keeping high quality standards4 in our products. Very important.
Solutions for Parameter Settings
One thing I really enjoy is mastering complex parameter settings. It is like puzzling out a riddle, with each piece reflecting a part of the product’s design or the mold’s complexity. For example, making automotive parts with their complex shapes often requires careful checking of wall thicknesses and internal structures. I recall a project where determining the perfect injection spots was both a science and a bit of art.
Parameter | Description |
---|---|
Shape & Structure | Analyze product geometry for better mold performance |
Runner System | Assess gate form for efficient flow |
Optimizing Speed Switching Algorithms
Speed switching algorithms are crucial for smooth transitions between different injection speeds. Techniques like linear or parabolic gradients help avoid disruptions in melt flow, similar to gently shifting a car into gear. These methods keep the injection steady, protecting the integrity5 of our products.
- Linear Gradient: Keeps a constant change rate.
- Parabolic Gradient: Offers smooth speed changes.
Accurate Pressure Holding Control
Creating accurate pressure holding control is like walking a tightrope. Material properties and wall thickness need consideration. Monitoring cavity pressure and temperature in real-time lets us adjust automatically, which improves dimensional accuracy. It’s like having an invisible guard to keep products within our standards.
Real-Time Monitoring
Real-time monitoring tools are crucial. They continuously provide data on temperature, pressure, and viscosity, allowing us to make quick changes as needed. This readiness is essential for keeping production quality6 high, making sure every product is as perfect as the last. Essential.
Advanced control systems improve process precision.True
Advanced control systems enable quick and accurate responses, enhancing precision.
Linear gradients cause abrupt changes in melt flow.False
Linear gradients provide a constant rate of change, minimizing abruptness.
Why is adaptability to material properties and mold structure crucial?
When I first discovered injection molding, I quickly learned the importance of adapting to keep everything running well. It resembles baking a flawless cake. Getting the right ingredients and timing changes everything!
Adaptability in molding processes holds great importance. It permits easy changes for different material types and mold designs. This flexibility very often improves product quality. Less defects appear. Production runs more smoothly.
Understanding Material Properties
Think about working with various types of dough for baking. They all act differently. In the same way, plastics have special qualities like thickness, heat resistance, and flow. Establishing a material property database7 helps me change molding settings fast to fit these qualities. Every product turns out perfect.
Mold Structure Dynamics
The mold is like the cake pan you pick – it affects how batter or plastic fills inside. Checking parts of the mold like gates and runners helps stop problems like bending or incomplete filling.
Mold Component | Influence on Material Flow |
---|---|
Gate Design | Controls entry speed |
Runner System | Affects distribution |
Technical Solutions for Adaptability
- Deep Analysis: Imagine solving a puzzle; I study product and mold shapes closely. For complex parts like car pieces, looking at wall thickness and inside structures helps find the best injection levels.
- Simulation Software: Injection molding simulation software acts like a crystal ball for me. It predicts how material moves and cuts down on trial-and-error costs by providing an accurate basis for parameter settings.
- Stage-by-Stage Improvement: Start with base settings and adjust them based on what happens during production. It’s like a chef tasting food and adjusting spices.
Improving Process Control Precision
Advanced control systems are essential, like owning the right kitchen tools. Using special valves8 helps in exact speed and pressure changes. This smooths shifts between injection phases and lessens stress on materials.
Real-Time Monitoring and Adaptive Adjustment
Real-time monitoring tools are my eyes and ears. They give instant data on temperature, pressure, and thickness, enabling automatic adaptive adjustments to maintain optimal conditions.
Collaborative Design and Process Optimization
Designing molds requires thinking of multi-stage injection needs. Adjusting gate shapes and runner layouts boosts product quality through collaborative optimization.
Using these strategies in my work allows me to face technical challenges directly, raising molding flexibility to handle different material and structure demands. What’s the reward? Greater precision, fewer errors, and much more production success.
Different plastics have unique viscosity and thermal stability.True
Each plastic type has distinct characteristics affecting molding.
Simulation analysis increases trial-and-error costs.False
Simulation reduces costs by predicting outcomes, minimizing errors.

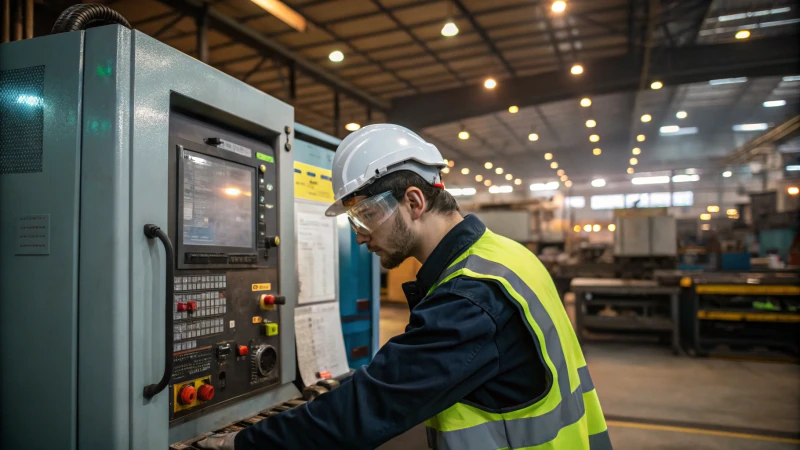

How Can I Ensure My Equipment Stays Reliable and Stable?
Some machines work perfectly, while others constantly break down. The secret is good maintenance. Good maintenance is very important.
To keep equipment working very well, use preventive, predictive and reliability-centered maintenance plans. Regular inspections help a lot. Real-time monitoring really matters. Timely upgrades are crucial.
Preventive Maintenance: A Proactive Plan
Preventive maintenance involves regular inspections and servicing of equipment to avoid unexpected breakdowns. By scheduling periodic checks, such as lubrication and calibration, organizations can identify potential issues early on. This approach not only extends the equipment’s lifespan9 but also ensures operational efficiency.
Predictive Maintenance: Using Technology
Predictive maintenance uses advanced technologies like IoT sensors and data analytics to monitor equipment conditions in real-time. This strategy predicts potential failures before they occur by analyzing operating parameters10 such as temperature and vibration levels. As a result, it reduces downtime and maintenance costs.
Reliability-Centered Maintenance: Focusing on Critical Assets
This strategy involves prioritizing maintenance tasks based on the criticality of assets to production. It combines aspects of both preventive and predictive maintenance to optimize resources. A detailed analysis helps determine which components require more frequent attention11, ensuring stability in operations.
Strategy | Key Focus | Advantages |
---|---|---|
Preventive | Regular checks | Extended lifespan |
Predictive | Real-time monitoring | Reduced downtime |
Reliability-Centered | Critical assets | Resource optimization |
Case Study: Injection Molding Machines
In the case of injection molding machines, adopting an advanced control system with precise components like servo valves ensures accurate responses to control instructions. Step-by-step debugging and simulation analysis help fine-tune parameter settings for complex product designs12, optimizing both process precision and material adaptability.
Implementing these maintenance strategies can significantly enhance the performance and stability of equipment across various industries. By combining technology with detailed analysis, companies can ensure their machinery operates at peak efficiency while minimizing disruptions.
Preventive maintenance extends equipment lifespan.True
Regular inspections help identify potential issues early, prolonging equipment life.
Predictive maintenance increases downtime costs.False
Predictive maintenance reduces downtime by anticipating failures before they occur.

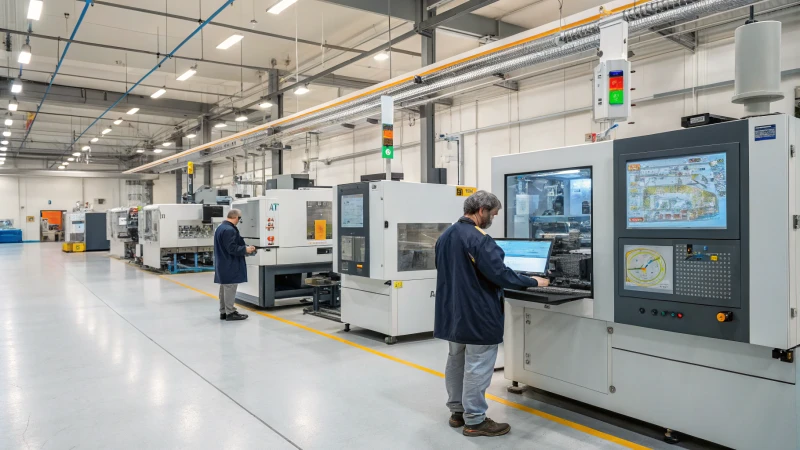

How does simulation analysis improve multi-stage injection molding?
Have you ever felt like handling too many factors with multi-stage injection molding? You’re really not the only one.
Simulation analysis changes multi-stage injection molding by predicting melt flow accurately. It reduces expensive trial-and-error. It adjusts settings finely. Complex setups become simpler. Production efficiency increases a lot.
Understanding Multi-Stage Injection Molding
Multi-stage injection molding works like a well-orchestrated symphony. Each layer of injected material requires careful control over injection parameters13 such as speed, pressure, and temperature. Early in my career, I found these details intimidating. Simulation analysis then emerged as an essential ally.
Benefits of Simulation Analysis
-
Predictive Modeling
Picture seeing issues before they arise. That’s the power of simulation software. It predicts how the melt will flow in the mold, like having a crystal ball that spots potential problems early.
Parameter Simulation Insights Speed Identifies optimal injection speed for each stage. Pressure Helps in pressure holding control strategy. -
Cost Reduction
Long ago, I poured hours and lots of money into trial-and-error testing. Those days are over. Using simulation can significantly cut down on trial-and-error cycles by providing a more accurate basis for parameter settings, cutting waste and saving money.
-
Enhanced Precision
With real-time adjustments enabled by simulations, precision control systems14 become more effective, allowing for adjustments that improve product quality.
Solutions to Technical Difficulties
Complex Parameter Settings
- In-depth Analysis: Deep examination of designs helps understand product needs like wall thickness distribution, thanks to simulation.
- Learning from Experience: Merging past experiences with new data is like a guide to refining settings efficiently.
High Process Control Precision
- Advanced Control Systems: Precise controls swiftly adjust injection settings based on simulated insights.
- Speed Switching Algorithms: These algorithms, built from simulation knowledge, allow smooth changes in injection speeds.
Material Properties Adaptability
- Material Database Integration: Connecting material data with tools allows quick changes in settings efficiently.
- Online Monitoring: Watching in real-time adjusts to shifts in material traits, guided by simulation results.
Simulation analysis unlocks the secrets of multi-stage injection molding15 and offers a strong basis to solve technical issues. Manufacturers who adopt these advancements see growth in production success and product quality. Those eager to learn more might find additional resources helpful.
Simulation analysis reduces trial-and-error in molding.True
Simulation provides accurate parameter settings, cutting down trial cycles.
Multi-stage injection molding uses a single injection stage.False
It involves several stages to inject material into the mold.
Conclusion
This article outlines strategies to overcome technical challenges in multi-stage injection molding, emphasizing detailed analysis, simulation tools, advanced control systems, and regular maintenance for optimal performance.
-
