Injection molding is a versatile manufacturing process, but when it comes to producing parts that must withstand extreme heat, the stakes are higher. High-temperature plastics like PEEK, PEI, and PPS are essential in industries such as aerospace, automotive, and electronics, where parts are exposed to temperatures exceeding 150°C. However, designing for these materials requires careful attention to material properties1, mold design2, and process parameters.
Injection molding high-temperature parts demands precise material selection, robust mold design, and meticulous process control to ensure durability and performance in extreme conditions.
Understanding the nuances of this process is crucial for engineers and designers aiming to produce reliable, high-performance components. This guide will walk you through the essential considerations, from material selection to process optimization, ensuring your high-temperature parts meet the demands of their applications.
High-temperature plastics are essential for parts exposed to extreme heat.True
Materials like PEEK and PEI maintain their mechanical properties at temperatures above 150°C, making them ideal for demanding environments.
Injection molding is the only viable method for producing high-temperature plastic parts.False
While injection molding is highly effective, alternatives like CNC machining or 3D printing can be used for prototyping or low-volume production.
- 1. What Are High-Temperature Plastics and Why Are They Important?
- 2. What Are the Key Steps in the Injection Molding Process for High-Temperature Parts?
- 3. What Are the Critical Design Considerations for High-Temperature Injection Molding?
- 4. How Do You Choose Between Injection Molding and Other Manufacturing Methods?
- 5. What Are the Common Challenges in Injection Molding High-Temperature Parts?
- 6. Conclusion
What Are High-Temperature Plastics and Why Are They Important?
High-temperature plastics are engineered to maintain their structural integrity and performance in environments where standard plastics would fail. These materials are crucial for applications requiring heat resistance, chemical stability, and mechanical strength.
High-temperature plastics, such as PEEK, PEI, and PPS, are vital for parts in aerospace, automotive, and electronics due to their ability to withstand temperatures above 150°C while offering excellent mechanical and chemical properties.
| Material | Max Service Temperature | Key Properties | Common Applications |
|---|---|---|---|
| PEEK | 260°C | High strength, chemical resistance | Aerospace engine parts, medical implants |
| PEI | 170°C | Flame retardant, electrical insulation | Electronics, automotive interiors |
| PPS | 220°C | Dimensional stability, low moisture absorption | Automotive sensors, electrical connectors |
Polyetheretherketone (PEEK)
PEEK is a standout material for high-temperature applications. With a melting point of 343°C, it can operate continuously at 260°C while maintaining excellent mechanical strength and chemical resistance. Its low flammability and high wear resistance make it ideal for aerospace and medical applications. However, PEEK requires precise processing due to its high melting temperature and sensitivity to cooling rates.
Polyetherimide (PEI)
PEI, often known by its trade name ULTEM, offers a balance of heat resistance, flame retardancy, and electrical insulation. With a continuous service temperature of 170°C, it’s commonly used in electronics and automotive interiors. PEI is easier to process than PEEK but still demands careful temperature control to avoid defects.
Polyphenylene Sulfide (PPS)
PPS is valued for its dimensional stability and resistance to chemicals and moisture. It can withstand temperatures up to 220°C, making it suitable for automotive and electrical applications. PPS is prone to flash during molding, so precise control of injection pressure and mold design is essential.
PEEK is the most versatile high-temperature plastic.True
PEEK’s combination of heat resistance, strength, and chemical stability makes it suitable for a wide range of demanding applications.
High-temperature plastics are always more expensive than standard plastics.False
While often pricier, the cost is justified by their superior performance in extreme conditions, and material selection depends on specific application needs.
What Are the Key Steps in the Injection Molding Process for High-Temperature Parts?
Injection molding high-temperature parts involves a series of carefully controlled steps to ensure the material’s properties are preserved and the part meets design specifications.
The injection molding process for high-temperature parts includes material selection3, mold design, machine setup, injection, cooling, and ejection, each requiring precise control to handle the unique challenges of high-temperature plastics.

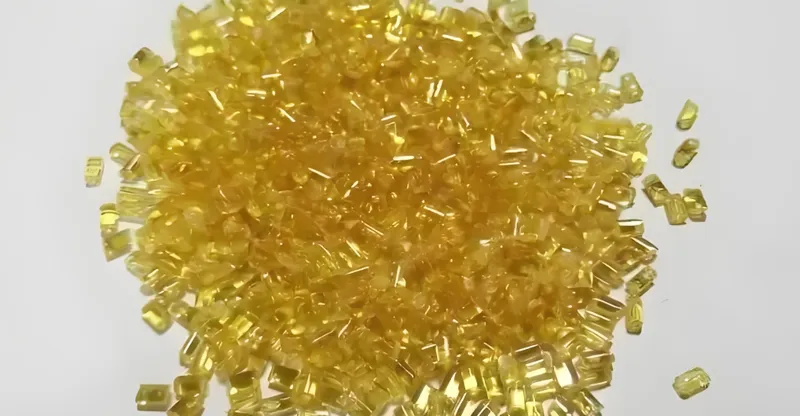

Material Selection
Choosing the right material is the foundation of successful high-temperature injection molding4. Factors like operating temperature, chemical exposure, and mechanical stress must guide the selection process. For instance, PEEK is ideal for extreme heat, while PEI offers better electrical insulation.
Mold Design
Molds for high-temperature plastics must withstand elevated temperatures and pressures. Materials like H-13 steel are commonly used for their durability. Additionally, the mold must incorporate features like uniform wall thickness and adequate draft angles to prevent warping and ensure easy ejection.
Machine Setup
Injection molding machines must be configured to handle the high processing temperatures required for materials like PEEK (up to 400°C). Barrel and nozzle temperatures, as well as mold temperatures, need precise calibration to avoid material degradation or incomplete filling.
Injection
During injection, the molten plastic is forced into the mold cavity. For high-temperature plastics, controlling injection speed and pressure is critical to prevent defects like flash or voids. Slower injection speeds are often necessary to manage the material’s viscosity.
Cooling
Cooling must be carefully managed to prevent warping or internal stresses. High-temperature plastics often have poor thermal conductivity, so cooling channels or thermal pins are used to ensure even heat dissipation. Cooling times may be longer than for standard plastics.
Ejection
Parts must be ejected carefully to avoid damage. Draft angles of at least 1° per inch of cavity depth are recommended to facilitate smooth ejection without stressing the part.
Cooling is the most critical step in injection molding high-temperature parts.False
While cooling is important, material selection and mold design are equally crucial for ensuring part quality and performance.
High-temperature plastics require longer cooling times than standard plastics.True
Due to their poor thermal conductivity, high-temperature plastics often need extended cooling periods to solidify properly.
What Are the Critical Design Considerations for High-Temperature Injection Molding?
Designing parts for high-temperature injection molding requires attention to detail to avoid common pitfalls like warping, sink marks, or poor dimensional stability.
Key design considerations include uniform wall thickness5, draft angles6, gate location, venting, and cooling channels7, all of which are essential for producing defect-free high-temperature parts.
Uniform Wall Thickness
Maintaining consistent wall thickness (typically 1.5-2.5 mm) is crucial to prevent warping and ensure even cooling. Variations in thickness can lead to differential shrinkage, causing internal stresses or dimensional inaccuracies.
Draft Angles
Draft angles of at least 1° per inch of cavity depth are necessary to facilitate part ejection. For high-temperature plastics, which can be more brittle, proper draft angles reduce the risk of part damage during removal.
Gate Location
Gates should be placed in areas where flow is optimized and stress is minimized. For high-temperature parts, gates are often located in thicker sections to ensure complete filling before the material cools.
Venting
Adequate venting is essential to allow trapped gases to escape, preventing defects like burns or voids. Vents should be strategically placed along the parting line or in areas prone to gas accumulation.
Cooling Channels
Efficient cooling is critical for high-temperature plastics. Cooling channels should be designed to provide uniform heat dissipation, often requiring conformal cooling or thermal pins for complex geometries.
| Design Feature | Recommendation | Purpose |
|---|---|---|
| Wall Thickness | 1.5-2.5 mm, uniform | Prevents warping, ensures even cooling |
| Draft Angles | ≥1° per inch of depth | Facilitates ejection |
| Gate Location | Thicker sections, away from critical areas | Optimizes flow, reduces stress |
| Venting | Along parting line, 0.02-0.05 mm depth | Allows gas escape |
| Cooling Channels | Equidistant or conformal | Ensures uniform cooling |
Uniform wall thickness is the most important design consideration.True
It directly impacts cooling rates and part integrity, making it a fundamental aspect of design.
Draft angles are unnecessary for high-temperature plastics.False
Draft angles are essential for all injection-molded parts to ensure smooth ejection and prevent damage.
How Do You Choose Between Injection Molding and Other Manufacturing Methods?
Selecting the right manufacturing process depends on factors like production volume, part complexity, and material requirements. Injection molding8 is often the best choice for high-volume, complex parts, but alternatives exist for different scenarios.
Injection molding is ideal for high-volume production of complex high-temperature parts, while CNC machining9 or 3D printing may be better for prototyping or low-volume runs.
Production Volume
For large production runs, injection molding is cost-effective due to its high repeatability and low per-part costs. However, the initial tooling investment is high, making it less suitable for small batches.
Part Complexity
Injection molding excels at producing intricate geometries with tight tolerances. For simpler parts, CNC machining might be more economical, especially for low volumes.
Material Compatibility
Not all manufacturing methods can handle high-temperature plastics. Injection molding is well-suited for materials like PEEK and PEI, while 3D printing10 options are limited and often lack the necessary heat resistance.
| Factor | Injection Molding | CNC Machining | 3D Printing |
|---|---|---|---|
| Volume | High | Low | Low |
| Complexity | High | Medium | High |
| Material Options | Wide range | Limited | Very limited |
| Tooling Cost | High | Low | None |
| Per-Part Cost | Low (high volume) | High | High |
Injection molding is always the best choice for high-temperature parts.False
While effective for many applications, other methods like CNC machining can be more cost-effective for prototyping or small production runs.
3D printing is unsuitable for high-temperature plastics.False
Some 3D printing technologies can process high-temperature materials, but they may not match the performance of injection-molded parts.
What Are the Common Challenges in Injection Molding High-Temperature Parts?
Injection molding high-temperature plastics presents unique challenges that require careful management to avoid defects and ensure part quality.
Common challenges include material degradation11, warping12, flash, and poor dimensional stability13, all of which can be mitigated through proper design and process control.
Material Degradation
High processing temperatures can cause thermal degradation if not managed properly. This can lead to discoloration, reduced mechanical properties, or even part failure. Using the correct barrel and nozzle temperatures is essential.

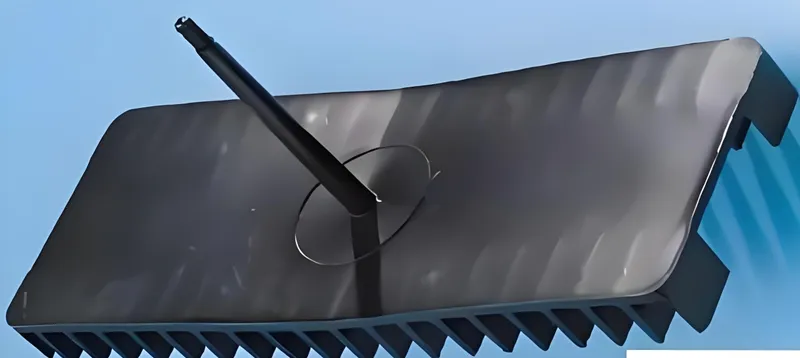

Warping
Due to the high shrinkage rates of some high-temperature plastics, warping is a common issue. Ensuring uniform wall thickness and optimizing cooling can help minimize this problem.

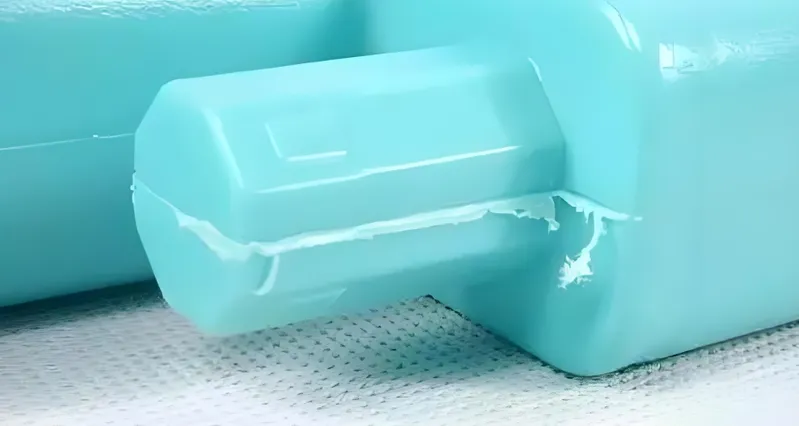

Flash
Materials like PPS are prone to flash, where excess material escapes the mold cavity. Precise control of injection pressure and mold clamping force is necessary to prevent this.
Dimensional Stability
High-temperature plastics can exhibit significant shrinkage, affecting dimensional accuracy. Accounting for shrinkage in the mold design and using materials with low shrinkage rates, like PPS, can help maintain tolerances.
Warping is unavoidable in high-temperature injection molding.False
With proper design and process control, warping can be minimized or eliminated.
Flash is more common in high-temperature plastics than in standard plastics.True
Materials like PPS have lower viscosity at high temperatures, increasing the risk of flash if not properly managed.
Conclusion
Injection molding high-temperature parts is a complex but rewarding process when done correctly. By focusing on material selection, mold design, and process optimization, manufacturers can produce parts that excel in the most demanding environments. Whether you’re working in aerospace, automotive, or electronics, understanding these key considerations will help you achieve success in your next project.
-
