Injection Molding1 and Rotational Molding are two distinct plastic manufacturing processes, each with unique advantages and applications. While both are used to create plastic parts, they differ significantly in their methods, materials, and ideal use cases. This article provides a detailed comparison of Injection Molding and Rotational Molding, covering their definitions, classifications, applications, technical workflows, and practical considerations. Whether you’re a manufacturer, designer, or engineer, understanding these differences will help you choose the right process for your project.
Injection Molding injects molten plastic into a mold under high pressure to create small, complex parts, while Rotational Molding2 uses heat and rotation to coat the inside of a mold, ideal for large, hollow items.
Injection Molding is better for large, hollow parts.False
Injection Molding is actually better for small, complex parts, while Rotational Molding is ideal for large, hollow items.
Rotational Molding uses high pressure to shape plastic.False
Rotational Molding uses low pressure and rotation, unlike Injection Molding, which uses high pressure.
- 1. What are the Key Definitions and Classifications?
- 2. What are the Typical Applications for Each Process?
- 3. What are the Pros and Cons of Each Process?
- 4. What are the Technical Workflows for Each Process?
- 5. What Materials are Compatible with Each Process?
- 6. What are the Design Considerations for Each Process?
- 7. How to Choose Between Injection Molding and Rotational Molding?
- 8. What are the Related Technologies?
- 9. Conclusion
What are the Key Definitions and Classifications?
Understanding the core principles and classifications of Injection Molding and Rotational Molding is essential for grasping their differences.
Injection Molding, or Plastic Injection Molding3, uses high pressure to inject molten plastic into a mold, while Rotational Molding, also known as Roto Molding, uses heat and rotation to coat a mold with plastic powder, forming hollow parts.
| Aspect | Injection Molding | Rotational Molding |
|---|---|---|
| Process | High-pressure, closed-mold | Low-pressure, open-mold with rotation |
| Materials | Wide range (e.g., PP, ABS, PC, Nylon) | Mostly polyethylene, some silicone, ABS |
| Applications4 | Small, complex parts (e.g., electronics) | Large, hollow parts (e.g., tanks, kayaks) |
Injection Molding
Injection Molding is a high-pressure process where molten plastic is injected into a closed mold. It’s ideal for producing small, intricate parts with tight tolerances. The process is fast and efficient for high-volume production but requires expensive molds.
Rotational Molding
Rotational Molding involves rotating a mold filled with plastic powder in an oven. The plastic melts and coats the mold’s interior, forming a hollow part. This process is slower but excels at creating large, seamless items with uniform wall thickness.
Injection Molding can use a wider range of materials than Rotational Molding.True
Injection Molding supports various thermoplastics like PP, ABS, and PC, while Rotational Molding is primarily limited to polyethylene.
Rotational Molding is faster than Injection Molding.False
Rotational Molding has longer cycle times, often up to 3 hours per part, compared to Injection Molding’s rapid production.
What are the Typical Applications for Each Process?
The choice between Injection Molding and Rotational Molding often depends on the size, complexity, and volume of the parts being produced.
Injection Molding is ideal for small, complex parts like electronics and automotive components, while Rotational Molding is suited for large, hollow items such as tanks and playground equipment.

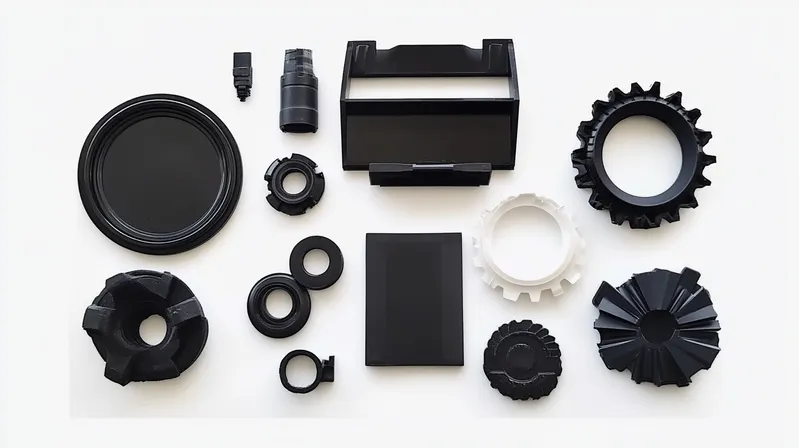

Injection Molding Applications
Injection Molding is commonly used in industries requiring precision and high production volumes. Typical applications include:
-
Electronics: Housings, connectors, and small components.
-
Automotive: Dashboards, bumpers, and interior parts.
-
Medical Devices: Casings and disposable items.

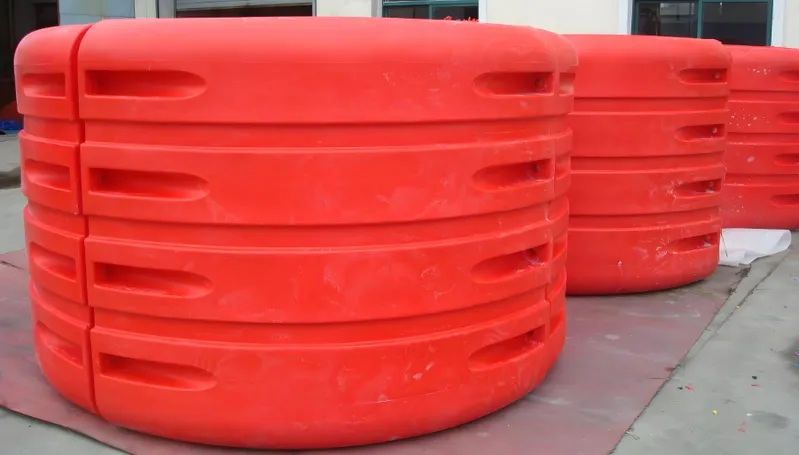

Rotational Molding Applications
Rotational Molding is preferred for large, hollow parts that need durability and seamless construction. Common applications include:
-
Marine: Kayaks, canoes, and pontoons.
-
Agriculture: Water and chemical tanks.
-
Recreation: Playground equipment and coolers.
Injection Molding is better for high-volume production.True
Injection Molding can produce thousands of parts per day, making it ideal for large-scale manufacturing.
Rotational Molding is only used for small parts.False
Rotational Molding is better for large, hollow parts, not small items.
What are the Pros and Cons of Each Process?
Both processes have strengths and weaknesses that influence decisions based on cost, production speed5, and design flexibility.
Injection Molding offers fast production and precision but has high initial costs, while Rotational Molding has lower tooling costs but slower cycle times.
| Aspect | Injection Molding | Rotational Molding |
|---|---|---|
| Pros | Fast production, high precision, complex shapes | Lower tooling costs, even wall thickness, one-piece construction |
| Cons | High initial tooling costs, less suitable for large parts | Longer cycle times, limited material options |
Injection Molding Pros and Cons
-
Pros: Short cycle times, high precision, and ability to produce complex shapes.
-
Cons: High mold creation costs (20+ weeks) and less efficiency for large parts.
Rotational Molding Pros and Cons
-
Pros: Lower tooling costs, uniform wall thickness, and seamless large parts.
-
Cons: Longer production times and limited material choices.
Rotational Molding has lower initial costs than Injection Molding.True
Rotational Molding requires less expensive molds, making it cost-effective for small runs.
Injection Molding is better for large, hollow parts.False
Injection Molding is less efficient for large parts due to high costs and pressure requirements.
What are the Technical Workflows for Each Process?
Understanding the step-by-step workflows highlights their differences in complexity and speed.
Injection Molding involves melting plastic pellets, injecting them into a mold, cooling, and ejecting the part, while Rotational Molding includes filling a mold with powder, heating, rotating, cooling, and removing the part.
Injection Molding Workflow
-
Feeding: Thermoplastic pellets are fed into a hopper.
-
Melting: Pellets are melted in a heated barrel.
-
Injecting: Molten plastic is injected into a mold under high pressure.
-
Cooling: The part cools and hardens.
-
Ejecting: The finished part is ejected.
Key parameters include mold temperature (e.g., 100–120°C for PP) and holding pressure.
Rotational Molding Workflow
-
Filling: The mold is filled with plastic powder (usually polyethylene).
-
Heating and Rotating: The mold is heated and rotated to coat the interior.
-
Cooling: The mold is cooled to harden the plastic.
-
Removing: The solid part is removed.
Key parameters include rotation speed (around 8 RPM) and wall thickness (0.125–0.25 inches).
Injection Molding requires high pressure to shape the plastic.True
High pressure ensures quick filling and precise details.
Rotational Molding uses a closed mold under high pressure.False
Rotational Molding uses an open mold and relies on rotation, not pressure.
What Materials are Compatible with Each Process?
Material selection6 is critical in choosing between these processes.
Injection Molding supports a wide range of thermoplastics like PP, ABS, and PC, while Rotational Molding is primarily used with polyethylene.
Injection Molding Materials
-
Polypropylene (PP): Melting point 100–120°C.
-
ABS: Melting point 100–110°C.
-
Polycarbonate (PC): Melting point ~135°C.
-
Nylon: Melting point 120°C.
Rotational Molding Materials
Primarily polyethylene, with some use of silicone and ABS.
Rotational Molding can use the same materials as Injection Molding.False
Rotational Molding is limited to polyethylene, unlike Injection Molding’s broader range.
Material choice impacts the strength and thermal properties of the final part.True
Different plastics offer varying strengths and thermal stabilities.
What are the Design Considerations for Each Process?
Designing parts requires attention to process-specific limitations.
For Injection Molding, uniform wall thickness and proper gating are crucial, while Rotational Molding requires draft angles and avoidance of sharp corners.
Injection Molding Design Checklist
-
Ensure uniform wall thickness.
-
Design proper gating and venting.
-
Include draft angles for ejection.
-
Validate with molders.
Rotational Molding Design Checklist
-
Include draft angles.
-
Maintain wall thickness (0.125–0.25 inches).
-
Avoid sharp corners.
-
Add steps to large flat surfaces.
Uniform wall thickness is important in both processes.True
It ensures even cooling and prevents defects.
Sharp corners are acceptable in Rotational Molding.False
Sharp corners lead to uneven coating and weak points.
How to Choose Between Injection Molding and Rotational Molding?
Choose Injection Molding for small, complex parts with high volumes, and Rotational Molding for large, hollow parts with lower volumes.
-
Small and complex? → Injection Molding.
-
Large and hollow? → Rotational Molding.
-
Material variety? → Injection Molding.
-
Low initial cost? → Rotational Molding.
Injection Molding is always the best choice for plastic parts.False
It’s not ideal for large, hollow parts.
Rotational Molding is more cost-effective for small production runs.True
Lower tooling costs benefit small batches.
Related processes include:
-
Blow Molding: For hollow, thin-walled parts.
-
Extrusion: For continuous shapes.
-
3D Printing: For prototyping.
Conclusion
Injection Molding excels in precision and speed for small, complex parts, while Rotational Molding is ideal for large, hollow items with lower tooling costs. By evaluating your project’s needs—size, complexity, volume, and budget—you can select the best process for optimal results.
-
