Injection molding machines are vital in producing bottle caps1, transforming molten plastic into precise, durable components used across multiple industries. This process ensures high efficiency and consistency, making it a cornerstone of modern manufacturing2.
Injection molding machines produce bottle caps by melting plastic, injecting it into a mold, cooling it, and ejecting the finished cap, offering high precision and efficiency for large-scale production.
Understanding how injection molding works for bottle caps can help manufacturers optimize production, reduce costs, and enhance product quality. This article explores the process, materials, applications, and practical tools to guide you in leveraging this technology effectively.
Injection molding is the most cost-effective method for producing bottle caps in small quantities.False
While injection molding excels in large-scale production due to its efficiency, the high initial tooling costs make it less economical for small runs compared to alternatives like compression molding.
Injection molding allows for the creation of complex bottle cap designs, such as tethered caps.True
The process supports intricate designs, including hinges and undercuts, essential for advanced cap functionalities like tethered caps mandated by regulations.
- 1. What is Injection Molding for Bottle Caps?
- 2. What are the Typical Applications of Injection Molding for Bottle Caps?
- 3. What are the Steps in the Injection Molding Process for Bottle Caps?
- 4. What are the Key Factors in the Injection Molding Process for Bottle Caps?
- 5. What are the Advantages and Disadvantages of Injection Molding for Bottle Caps?
- 6. How Does Injection Molding Compare to Compression Molding for Bottle Caps?
- 7. What are the Practical Tools for Optimizing Injection Molding for Bottle Caps?
- 8. What are the Related Technologies in Injection Molding for Bottle Caps?
- 9. Conclusion

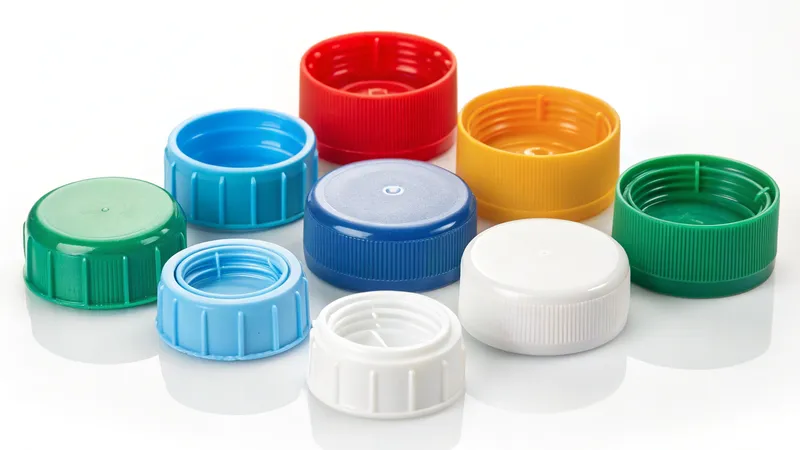

What is Injection Molding for Bottle Caps?
Injection molding for bottle caps is a manufacturing process that creates uniform, high-quality caps for various industries, ensuring durability and precision.
Injection molding for bottle caps3 involves melting plastic, injecting it into a mold, cooling it, and ejecting the cap, ideal for high-volume production with complex designs.
| Material Type | Common Applications | Notes |
|---|---|---|
| Polypropylene (PP)4 | Beverage caps, pharmaceutical caps | Durable, chemical-resistant |
| Polyethylene Terephthalate (PET)5 | Water and soft drink caps | Clear, lightweight |
| High-Density Polyethylene (HDPE) | Durable, recyclable caps | Tough, stiff |
Definition and Core Principles
Injection molding involves heating plastic granules, such as polypropylene (PP) or polyethylene terephthalate (PET), to a molten state (e.g., PP at 200–250°C). The molten plastic is then injected into a mold under high pressure, cooled, and ejected as a finished bottle cap. The process leverages thermoplastics6’ ability to be shaped under heat and pressure, ensuring precision and repeatability.
Classification of Injection Molding for Bottle Caps
This process can be categorized by:
-
Process Type: Standard injection molding for simple caps versus advanced techniques for complex designs like tethered caps.
-
Material:
-
PP: Durable and chemical-resistant.
-
PET: Lightweight and transparent.
-
HDPE: Tough and recyclable.
-
-
Application: Beverage, pharmaceutical, and cosmetic caps.
- Design Complexity: Flat caps, threaded caps, or tethered caps with hinges.
These classifications help manufacturers select the appropriate method based on production needs and cap specifications.
Injection molding is only suitable for simple bottle cap designs.False
The process can produce complex designs, including tethered caps with hinges, thanks to precise mold engineering.
Polypropylene is the most commonly used material for bottle caps due to its durability.True
PP’s strength and resistance to chemicals make it a top choice for caps, especially in hot-fill applications.

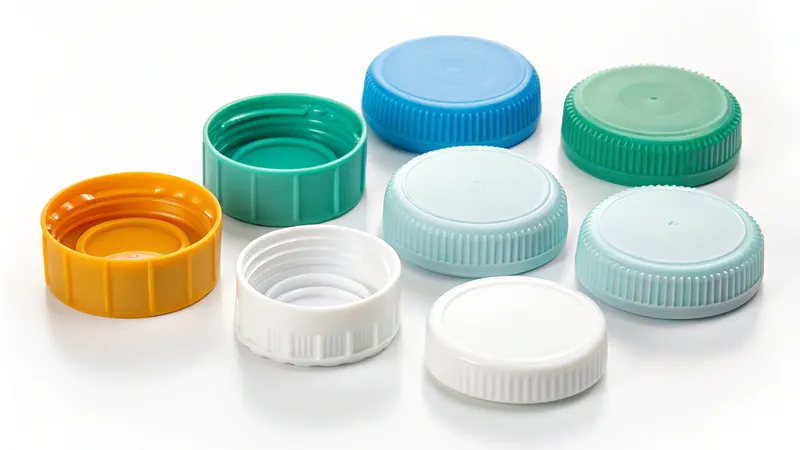

What are the Typical Applications of Injection Molding for Bottle Caps?
Injection molding is essential for producing bottle caps across industries requiring precision and scalability.
Injection molding is commonly used for bottle caps in the beverage, pharmaceutical, and cosmetic industries, offering uniformity and high-volume output.
Beverage Industry
In beverages, injection molding creates caps for water, soda, and juice bottles. Machines can produce up to 52,000 caps per hour, ensuring tight seals and meeting high demand with consistent quality.
Pharmaceutical Industry
For pharmaceuticals, the process manufactures tamper-evident and child-resistant caps, adhering to strict safety standards. Precision in threading and sealing maintains product integrity.
Cosmetic and Personal Care Industry
In cosmetics, injection molding produces caps for lotion, shampoo, and perfume bottles. It supports aesthetic features like embossed logos and functional designs like easy-open mechanisms.
Injection molding is only used in the beverage industry for bottle caps.False
It’s widely applied in pharmaceuticals and cosmetics too, thanks to its versatility and precision.
Injection molding ensures consistent quality across large production runs.True
The process minimizes dimensional variations, ensuring uniformity in every cap.

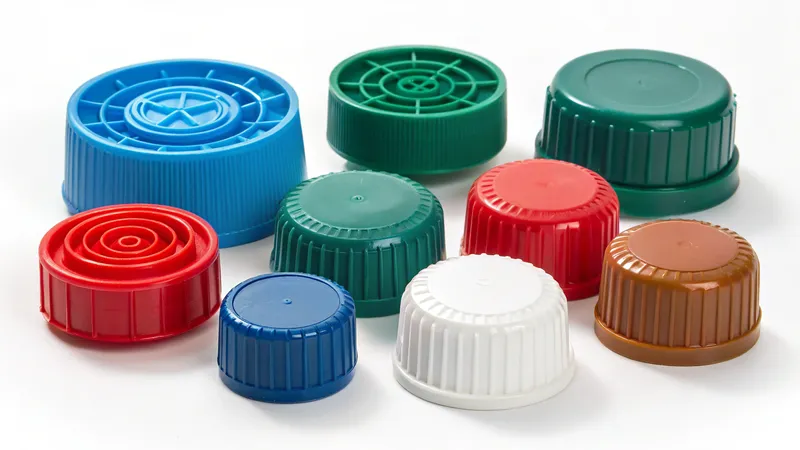

What are the Steps in the Injection Molding Process for Bottle Caps?
The injection molding process7 for bottle caps is a multi-step, precise method ensuring high-quality output.
The injection molding process for bottle caps includes material preparation, heating and melting, injection, cooling, and ejection, each step critical for quality and efficiency.
Material Preparation
Plastic granules (e.g., PP) are loaded into the machine’s hopper, selected based on the cap’s intended use, such as durability or clarity.
Heating and Melting
Granules are melted in the barrel at temperatures like 200–250°C for PP, creating a uniform molten state for injection.
Injection
Molten plastic is injected into a mold cavity8 under high pressure (e.g., 0.8 MPa), with clamping forces of 60–450 tons ensuring complete filling.
Cooling
The plastic cools and solidifies in the mold, typically taking 15–120 seconds, preventing defects like warping.
Ejection
The mold opens, and ejector pins remove the finished cap, often aided by advanced features like pin-valve gate systems.
The injection molding process always requires the same cooling time for all materials.False
Cooling times vary by material, mold design, and part thickness, requiring optimization per run.
Proper mold design is crucial for preventing defects in bottle caps.True
Mold design impacts dimensions, surface finish, and functionality, reducing defect risks.

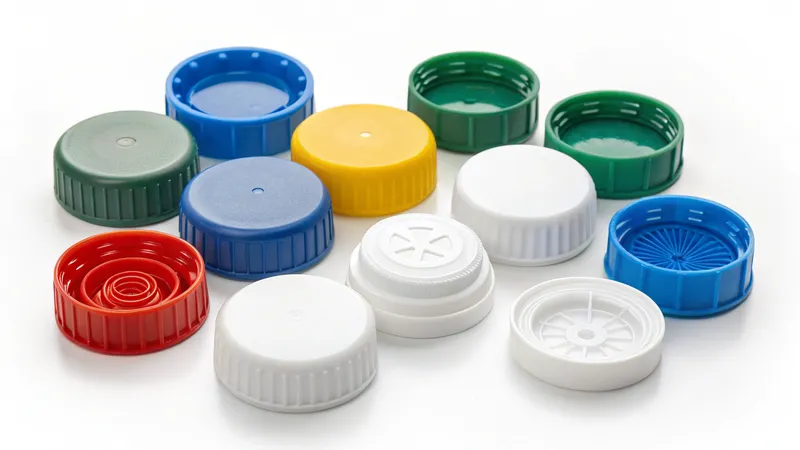

What are the Key Factors in the Injection Molding Process for Bottle Caps?
Several factors determine the success of injection molding for bottle caps, affecting quality and efficiency.
Key factors in injection molding for bottle caps include material selection9, mold design10, injection pressure, and cooling time, each influencing the cap’s performance.
Material Selection
Choosing materials like PP for durability or PET for clarity is vital, aligning with application needs like food safety.
Mold Design
Precision molds, often made from Stavax steel (HRC 43–52), accommodate features like threads or hinges, preventing defects.
Injection Pressure
Optimized pressure ensures complete mold filling without defects like flash (too high) or short shots (too low).
Cooling Time
Balanced cooling prevents warping while maintaining efficiency, varying with material and design.
Material selection has no impact on the injection molding process.False
Materials’ melting points and flow properties significantly affect the process.
Optimizing injection pressure is essential for producing defect-free bottle caps.True
Correct pressure ensures proper filling and avoids common issues.

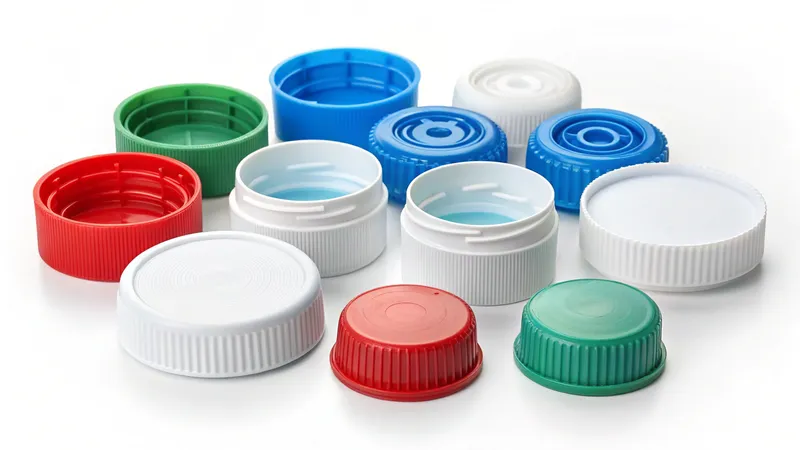

What are the Advantages and Disadvantages of Injection Molding for Bottle Caps?
Injection molding offers unique benefits and challenges for bottle cap production.
Injection molding for bottle caps provides high precision, efficiency, and design flexibility but involves high initial costs and is less suitable for small runs.
Advantages
-
High Precision: Tight tolerances for threading and sealing.
-
Efficiency: Up to 52,000 caps/hour for large-scale production.
-
Design Flexibility11: Supports tethered caps and undercuts.
-
No Post-Processing: Reduces labor and quality risks.
Disadvantages
-
High Tooling Costs12: Expensive molds, especially for complex designs.
-
Not Ideal for Small Runs: High setup costs outweigh benefits for low volumes.
-
Material Limits: Restricted to thermoplastics.
Injection molding is always the cheapest option for producing bottle caps.False
It’s cost-effective for large runs but not small batches due to tooling costs.
Injection molding allows for the production of caps with intricate designs.True
It excels at creating complex features like hinges.

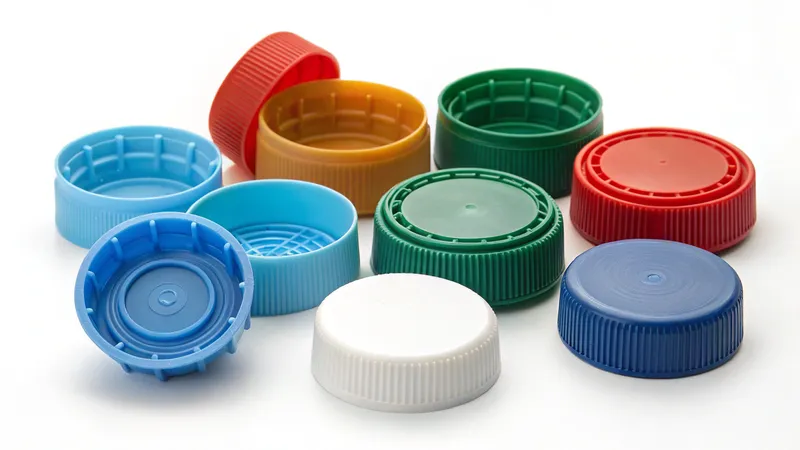

How Does Injection Molding Compare to Compression Molding for Bottle Caps?
Comparing these methods helps determine the best fit for bottle cap production.
Injection molding offers higher precision and design flexibility but is costlier than compression molding, which suits simpler designs and smaller runs.
Process Differences
-
Injection Molding: Melts and injects plastic into a mold, ideal for complex designs.
-
Compression Molding: Compresses pre-measured plastic in a heated mold, better for basic caps.
Cost and Efficiency
- Injection Molding: High initial costs, low per-unit costs for large runs.
- Compression Molding: Lower tooling costs, ideal for small to medium batches.
Quality and Design
-
Injection Molding: Smoother finishes and precise dimensions.
-
Compression Molding: Sharper edges, less precision.
Compression molding is better for producing complex bottle cap designs.False
Injection molding excels at complex designs.
Injection molding is more efficient for large-scale production than compression molding.True
Faster cycles and automation favor high volumes.

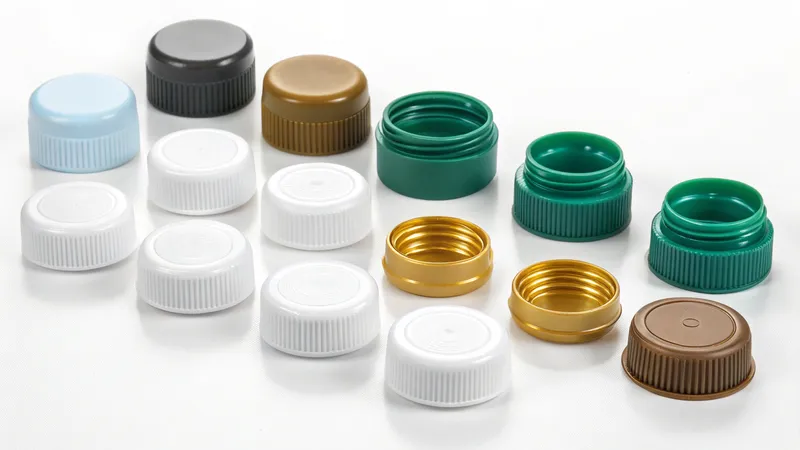

What are the Practical Tools for Optimizing Injection Molding for Bottle Caps?
Optimizing this process requires practical tools to enhance efficiency and quality.
Practical tools for optimizing injection molding include a design checklist and process selection guide, aiding in avoiding pitfalls and choosing the right method.
Design Checklist
-
Shape/Size: Fits machine capacity (e.g., 200-ton for 2-inch caps).
-
Wall Thickness: Uniform (0.5–2 mm) to avoid warping.
-
Draft Angles: 1–2° for easy ejection.
-
Text/Logos: Mold-compatible embossing.
-
Functionality: Ensures threading or safety features.
-
Material: Matches application (e.g., PP for durability).
Process Selection Decision-Making
-
Volume: High volumes suit injection molding; small runs favor compression.
-
Complexity: Complex designs need injection molding.
-
Material: Must be thermoplastic-compatible.
-
Cost: Balances tooling vs. per-unit costs.
A design checklist is unnecessary for experienced manufacturers.False
It ensures all factors are considered, reducing errors.
Process selection should prioritize production volume and design complexity.True
These drive method suitability and cost-effectiveness.
Injection molding integrates with a broader manufacturing ecosystem.
Related technologies include plastic extrusion for material production and automated packaging assembly, enhancing the bottle cap production network.
Upstream Technologies
-
Plastic Extrusion: Produces granules like PP pellets for consistent quality.
-
Mold Manufacturing: Uses CNC or EDM for precision molds (e.g., P20 steel).
Downstream Technologies
- Packaging Assembly: Automates cap attachment to bottles.
- Recycling: Processes end-of-life caps, especially bio-based plastics.
Plastic extrusion is unrelated to injection molding.False
It supplies the raw materials for molding.
Automated packaging assembly enhances the efficiency of bottle cap production.True
It streamlines capping and sealing.
Conclusion
Injection molding is a powerful method for producing precise, durable bottle caps, excelling in high-volume production for beverages, pharmaceuticals, and cosmetics. While its high tooling costs make it less ideal for small runs, its ability to create complex designs like tethered caps ensures its relevance. By mastering the process, material choices, and related technologies, manufacturers can boost efficiency and quality.
-
