What Are the Standard Steps in the Injection Mold Acceptance Process?

Moving through the world of mold acceptance feels like starting a trip toward flawlessness.

The standard steps in the injection mold acceptance process include mold inspection, trial runs, sample evaluation, quality testing, and final approval to ensure the mold meets design specifications and quality standards.

This overview offers the basics. Learning more shows each stage is crucial for shaping success. Picture each step as a puzzle piece. When finished, we get a perfect product ready for production. These procedures not only improve skills. They also create a strong base for making flawless molded parts.

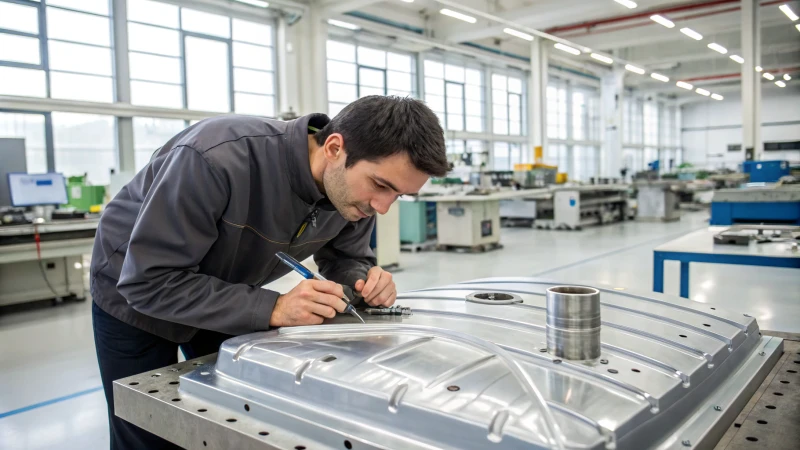

How is Surface Quality Inspected in Mold Acceptance?

Ever thought about what creates the perfect surface of molds? Discover the detailed process that delivers flawless products every time.

To inspect mold surface quality, focus on surface roughness. Look for defects like scratches or rust. Check for damage on parting surfaces. These steps help avoid defects in molded products. Molded products probably benefit from careful inspection.

Surface Roughness Assessment

When I began working in the mold industry, I felt very surprised by the detailed work involved in checking molds. Surface quality is not just about looks; it’s about the strength and function of the final product. Every scratch or bump might cause big problems later, so paying close attention to details is necessary.

I remember my first time using a roughness meter¹. It felt like a special moment. We used it to measure the roughness of the mold cavity and core, trying to reach a precision range between Ra0.2 to Ra0.8μm. Achieving this level of precision helps the molded parts look good and work perfectly. We always added a visual inspection to find any tiny scratches or defects that the meter might miss.

Parting Surface Inspection

The flatness of the parting surface is also really important. We used a knife edge gauge and a feeler gauge to check the flatness error, which should generally remain within 0.01 to 0.03mm for high-precision molds. This prevented problems such as loose mold closures or unwanted flash.

Rust and Corrosion Checks

I learned that rust is a sneaky enemy of molds, especially for those stored long-term or in humid places. Rust spots harm a mold’s accuracy and life; minor rust can be treated, but severe rust needs serious actions. Detailed guidelines on rust management are linked here².

Visual Inspection for Defects

Checking visually for scratches, bumps, or pits on the mold surface is very important since even small imperfections can grow in the final product, leading to expensive defects.

Mold Identification Verification

Checking for correct and clear identification marks on molds is key for managing and tracing production. I always look for details like mold number, part number, and production date—this makes mold management³ more reliable and smooth.

All these methods together offer a complete inspection of mold surface quality, which is vital for maintaining top product manufacturing standards. It’s a precise dance between tools and careful eyes that I’ve grown to really appreciate in my career.

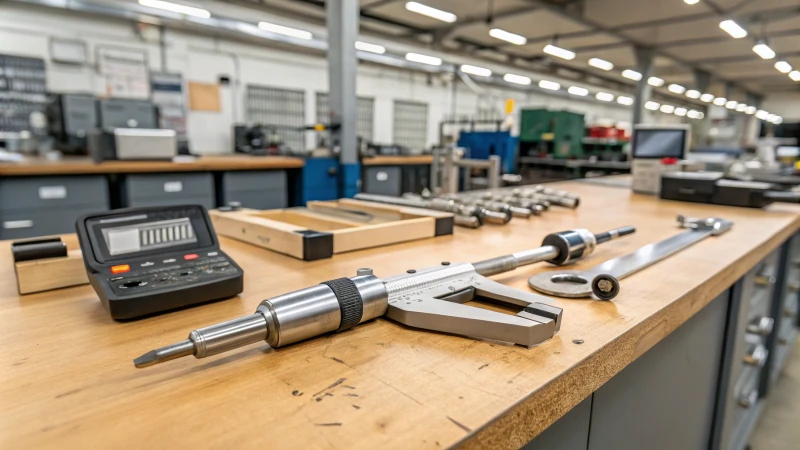

What Tools Are Used for Measuring Mold Size Accuracy?

Have you ever tried to put something together and discovered that the parts don’t fit? This is why accurate mold size measurement is necessary. Let’s explore the tools that help everything fit perfectly together.

Calipers, micrometers and Coordinate Measuring Machines (CMM) are important tools for checking mold size accuracy. They give very exact measurements of straight lengths and geometric limits. These measurements are crucial for producing high-quality molds.

Essential Tools for Measuring Mold Size

1. Calipers and Micrometers

   Calipers reminded me of a high-tech ruler. They gave quick readings. When I needed more detailed measurements, micrometers helped a lot. They offered extra precision for crucial design details. Micrometers were my best friends for fine measurements.

   Tool	Precision	Best For
   Calipers	±0.02 mm	Quick measurements
   Micrometers	±0.01 mm	Fine details

2. Coordinate Measuring Machine (CMM)

   The CMM felt like magic. It collected 3D data from different mold surface points with great accuracy, ideal for high-precision requirements, capable of reaching micron-level accuracy.

3. Roughness Meter

   Surface quality required a roughness meter, which was very important for precision injection molds⁴. Achieving the right surface texture between Ra0.2 – Ra0.8μm was essential to meet design specifications.

Techniques for Accurate Measurements

• Geometric Tolerance Detection

  Detecting geometric tolerances like roundness and cylindricity was crucial—it was like fitting puzzle pieces together accurately. Tools like roundness meters helped align everything properly.

• Parting Surface Inspection

  Knife edge gauges with feeler gauges checked flatness, maintaining a flatness error within 0.01 – 0.03mm is critical for high-precision molds.

• Hole Spacing and Wall Thickness Measurement

  Precision was very important here; exact cooling channel dimensions mattered significantly as they influenced the quality and efficiency of the final product.

Mold Appearance Acceptance

• Surface Quality Inspection

  Surface issues like scratches or rust were problematic; even tiny blemishes led to costly rejections, making thorough inspection necessary to avoid issues.

• Mold Identification Inspection

  Clear mold identification was important for traceability during production processes, serving as a very detailed roadmap.

These tools and techniques changed my work significantly by allowing my designs to reach high aesthetic and functional standards while controlling costs.

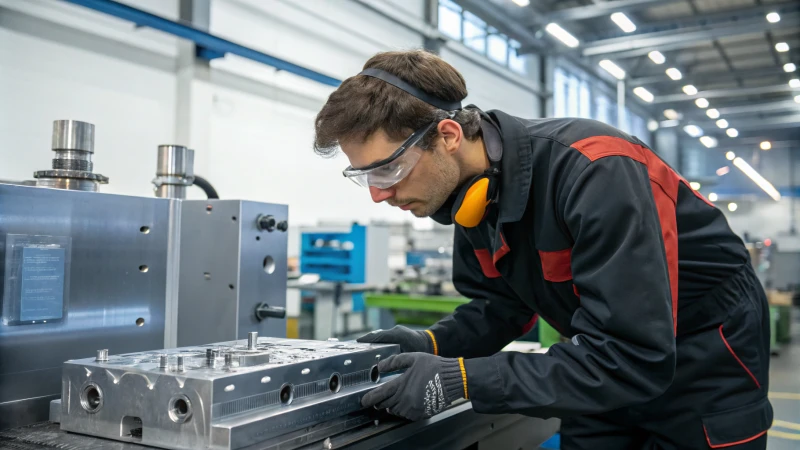

How Do We Verify Precision in Mold Assembly?

Did you ever think about how each molded piece turns out perfect? Precision is the key.

Precision in mold assembly is verified through detailed surface checks, careful measurements and strict trials. These steps guarantee that molds consistently follow design standards. Meeting design standards is crucial for high-quality production. High-quality production is very important.

Surface Quality Inspection

Think of holding a shiny, polished gem. That is the detail we need for our molds. I remember my first project where I learned about surface roughness. Using a roughness meter, I checked important areas like the mold cavity and core. They needed to meet our design standards – usually between Ra0.2 and Ra0.8μm for precision injection molds⁵. Visual checks are really important too. Even a tiny scratch can cause problems later.

Linear Dimension Measurement

Accuracy cannot be guessed. Calipers and micrometers are my main tools for measuring dimensions such as length, width, and depth of the cavity. For very precise accuracy, the three-coordinate measuring machine (CMM) is invaluable. It measures feature points with micron-level precision, ensuring that cavity dimensions and cooling channels match the design specifications⁶.

Geometric Tolerance Detection

Checking geometric tolerances is crucial, even if it seems tedious. I learned this when a guide pin issue nearly ruined a project. Tools like roundness meters help find errors in cylindricity and flatness using instruments such as a flatness measuring instrument⁷. These checks ensure each part fits perfectly when the mold closes.

Mold Closing Accuracy Inspection

Mold closing accuracy is essential. I use feeler gauges to measure gaps, ideally under 0.03-0.05mm for high-precision molds. Misalignments or gaps are checked using feeler gauges or gap gauges to ensure proper mold closure⁸. Numbers are important, but watching manual operations also confirms smooth movement between guide pins and sleeves.

Ejector Mechanism Accuracy Inspection

I once faced a jamming ejector mechanism due to a small alignment issue that caused it to jam or skew during manual operations. Ensuring smooth movement of ejector pins is vital to avoid product deformation; their extension length must align with design specifications.

Mold Trial Acceptance

The trial phase brings everything together like a dress rehearsal for the final product before full-scale production begins. Watching this process helps find defects early, such as flash or short shots, so dimensions and quality meet expectations and adhere to design requirements.

Inspecting each aspect of mold assembly precision is essential to maintaining quality and meeting industry standards by incorporating these thorough inspections and measurements.

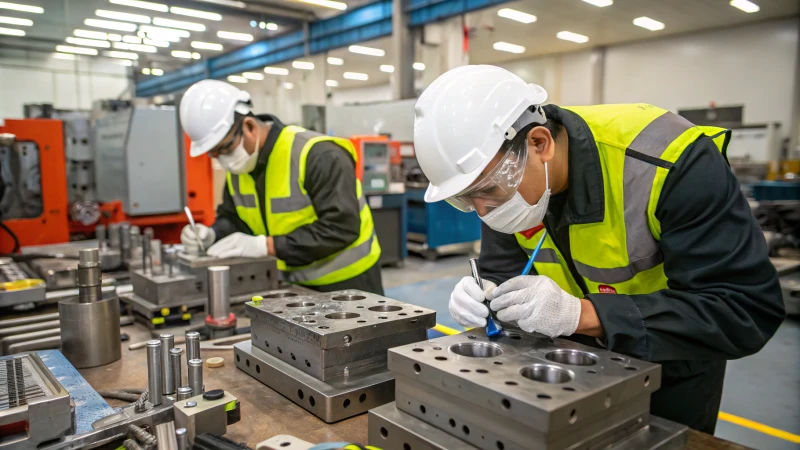

What Performance Checks Are Conducted During Mold Acceptance?

Ever wondered what prepares a mold for production? It’s like a symphony of checks and balances. Everything must work perfectly together.

During mold acceptance, we perform important checks. These include surface quality inspection. We also verify size accuracy. Assembly accuracy testing follows next. Then, we evaluate action performance. Finally, we conduct trial acceptance. Each step checks molds properly. It confirms they meet industry standards. High-quality production needs this process.

Surface Quality Inspection

I remember the first time I had to check a mold’s surface quality. Anxiety filled me as I tried not to miss even a small scratch. The surface quality inspection⁹ ensures that the mold’s appearance meets design specifications. Key factors include:

• Surface Roughness: Measured using a roughness meter. For precision molds, the cavity roughness typically ranges between Ra0.2 – Ra0.8μm.
• Rust Check: Rust is a major concern, especially if the mold sits in storage. Look for rust and address minor rust promptly to prevent dimensional inaccuracies.
• Parting Surface Inspection: Use a knife edge gauge and feeler gauge to measure flatness errors, usually kept within 0.01 – 0.03mm.

Size Accuracy Verification

Inspecting size accuracy feels like solving a puzzle. Size accuracy involves measuring the linear dimensions¹⁰ of the mold:

Geometric Tolerances: Ensure aspects like cylindricity and flatness adhere to stringent standards to avoid production issues.

Assembly Accuracy Testing

Imagine putting together furniture from scratch. In assembly accuracy, focus on the mold closing¹¹ accuracy:

• Mold Closing Gap: Should be minimal (less than 0.03-0.05mm) to prevent product flash.
• Guide Pin & Sleeve Fit: Smooth operation without jamming ensures long-term functionality.
• Ejector Mechanism Accuracy: Ejector pins should move smoothly without skewing to prevent product deformation.

Action Performance Evaluation

Evaluating action performance is like checking the mold’s heartbeat:

• Opening/Closing Actions: The opening and closing actions should be noiseless and smooth, resembling a well-oiled machine without noise or vibration.
• Demolding Action: Watching the demolding action work seamlessly is satisfying; ensure lifters/sliders work properly during demolding for smooth product ejection.

Trial Acceptance

Trial acceptance is where everything comes together in real-world performance:

• Preparation & Observation: Adjusting machine settings and choosing materials feel like preparing for a great performance; select appropriate materials and adjust injection molding machine settings.
• Test Product Inspection: During test runs, measuring dimensions is crucial; measure dimensions and conduct performance tests to ensure compliance with design requirements.

These checks are not just simple steps but stories of careful work and strong attention to detail with the goal of producing quality molds for production.

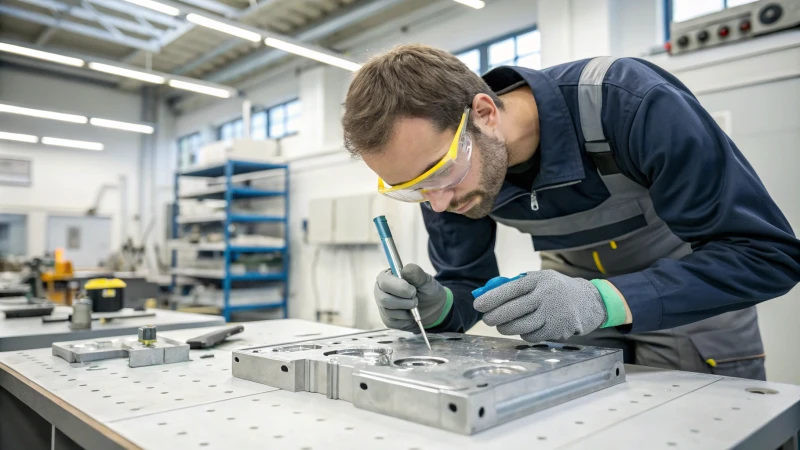

Why are mold trials crucial before production?

Do you ever ask yourself why mold trials matter so much in manufacturing? These test runs hold high importance before the real production begins.

A mold trial before production is essential. This confirms that the mold works well. It checks the quality of the product. The trial catches problems early. It delivers accuracy. Costs decrease. Product reliability is really important and increases.

Understanding Mold Trials

When I first began in manufacturing, I saw mold trials as just another task on a long list of pre-production duties. Later, I discovered their real importance. A mold trial is more than a simple test. Here, theory meets practice. It helps prove that a detailed design turns into a real product. This step fixes any problems before full production starts.

Important Parts of a Mold Trial

1. Surface Quality Check

I recall my first time with a roughness meter, standing with my mentor, checking the mold cavity’s surface. Our goal was the perfect Ra0.2 – Ra0.8μm range. Even a tiny error could change the product’s appearance and texture. We examined each piece under light, searching for any scratches or rust from storage.

2. Mold Size Precision

Precision matters greatly. We spent hours with calipers and CMMs, making sure every millimeter matched the blueprints—crucial for the mold’s functionality¹². My heart would race a bit when the numbers lined up exactly; this meant we succeeded with the mold’s precision.

Reasons for Mold Trials

Avoiding Expensive Mistakes

Mold trials help catch mistakes early, saving us trouble later by allowing adjustments to mold design¹³ or process settings—vital for smooth production.

Guaranteeing Product Excellence

We have all experienced those bad moments—spotting short shots or weld marks in the wrong places during trials guarantees each part meets top standards in both look and function because high standards matter.

Mold Trial Challenges

Honestly, mold trials can feel overwhelming; they need time and resources and sometimes several attempts are necessary to achieve the best results. However, these efforts are valuable to confirm the final product’s quality.

Reviewing trial outcomes involves watching how well the plastic fills the cavity and looking closely for insufficient fill, flash or weld marks—defects indicating issues with injection pressure or gate layout but understanding them helps improve.

Mastering mold trials advances production methods and confirms that every product made is something we can really be proud of.

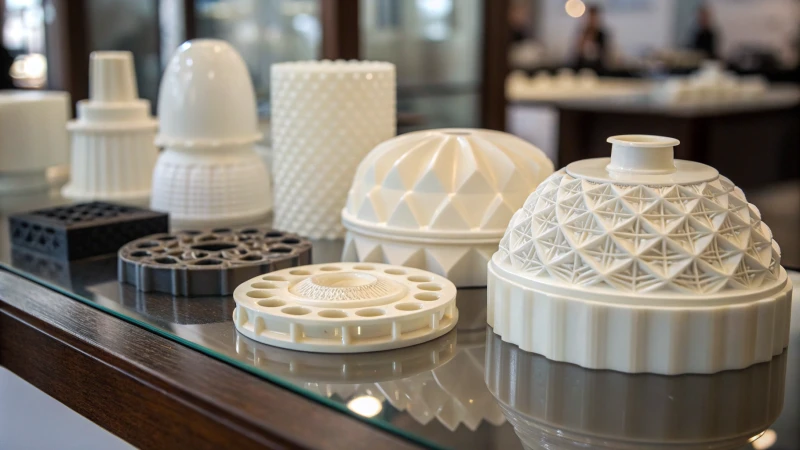

How Can Mold Acceptance Impact Product Quality?

Do you ever think about how the hidden process of mold approval influences the quality of everyday products? Let’s explore this process and see how it functions.

Mold acceptance affects product quality by checking the surface and size of the mold. This makes sure they match design plans. Good molds reduce defects like flashes and misalignments. Products then become reliable and appealing.

The Importance of Surface Quality Inspection

When I began working with molds, I noticed how surface quality greatly improves product appearance. Imagine holding a newly molded piece. It looks perfect – no scratches, no rust. This perfection results from careful surface inspections. We use a roughness meter to verify every cavity and core meet specific standards, usually Ra0.2 – Ra0.8μm for high-precision jobs. Even a tiny defect could ruin not only the look but also the product’s lifespan. It’s really important.

Precision in Dimensional Accuracy

Precision matters greatly in mold making. I remember seeing a three-coordinate measuring machine¹⁴ (CMM) for the first time. This machine was amazing, like something from a sci-fi film. Its ability to measure down to microns is invaluable. We use it with calipers and micrometers to check every dimension, from cavity depth to hole spacing.

It’s like solving a complex puzzle where every piece must fit perfectly.

Evaluating Mold Assembly Accuracy

Assembling molds is like directing an orchestra; every part must work in harmony. I’ve seen how a perfectly fitted guide pin can mean the difference between smooth operations and frustrating misalignments. The key is fitting every part seamlessly so all parts close tightly without gaps.

Performance of Mold Action

Running mold action poorly feels like running a marathon with a stone in your shoe. The opening and closing should be very smooth, with no unexpected sounds or vibrations. Testing at multiple speeds helps confirm everything works well, preventing expensive delays or defects.

Conducting a Successful Mold Trial

There is nothing like the crucial moment during a mold trial; it tests all our efforts. I watch carefully for problems like short shots or flashes, as they signify issues with pressure or clamping.
Precise adjustments here greatly improve product quality.
Adjustments matter a lot.
For more on how these factors connect, see injection molding parameters¹⁵. Every step we take shows our very strong commitment to quality and reliability in everything we produce.

Conclusion

The injection mold acceptance process involves thorough inspections of surface quality, size accuracy, assembly precision, and performance evaluation to ensure molds meet design specifications for high-quality production.
