How Efficiently Can Injection Molding Machines Produce Toolboxes?

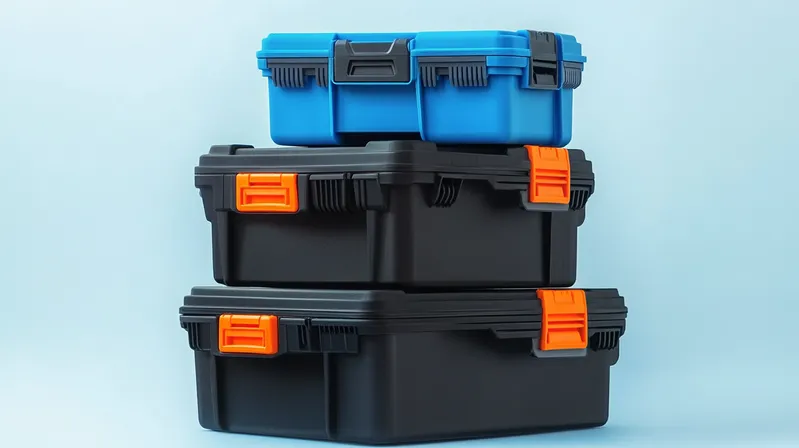

Injection molding is a cornerstone of modern manufacturing, renowned for its efficiency, precision, and ability to produce complex plastic parts like toolboxes. This article delves into the efficiency of injection molding machines¹ in toolbox production², exploring the process, materials, applications, and technical details. Whether you’re a DIY enthusiast or a manufacturing professional, understanding this process can help you optimize production and reduce costs.

Injection molding machines efficiently produce toolboxes by leveraging high-speed, automated processes that create durable, complex designs with minimal material waste, making them ideal for mass production.

Injection molding stands out for its ability to deliver consistent quality and high output, but its efficiency depends on factors like machine type, mold design, and material selection. Let’s explore how this process transforms raw plastic into functional toolboxes.

What is Injection Molding and How Does It Relate to Toolbox Production?

Injection molding is a manufacturing technique³ where molten plastic is injected into a mold cavity under high pressure, cooled, and ejected as a finished part. For toolboxes, this process is particularly efficient due to its capacity to produce large quantities of identical, durable items with intricate features.

Injection molding involves melting plastic, injecting it into a mold, cooling it, and ejecting the finished toolbox, offering a streamlined approach to producing lightweight, robust storage solutions.

Definitions and Key Concepts

• Injection Molding: A process that injects molten plastic into a mold, cools it, and ejects it as a solid part, prized for its precision and versatility.

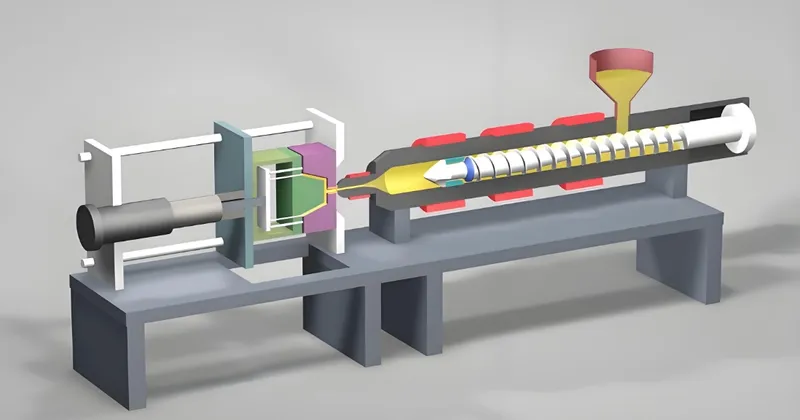

• Injection Molding⁴ Machines: Known as injection presses, these consist of an injection unit (melts and injects plastic) and a clamping unit (secures the mold). They vary by type: hydraulic, hybrid, or all-electric.

• Toolboxes⁵: Plastic containers for tool storage, often made from materials like polypropylene (PP) or acrylonitrile butadiene styrene (ABS) for durability and lightweight properties.

Classification of Injection Molding for Toolbox Production

• By Machine Type:

  • Hydraulic Machines: High clamping force, energy-intensive, suited for larger toolboxes.

  • Hybrid Machines: Blend hydraulic and electric features for balanced efficiency.

• All-Electric Machines⁶: Up to 50% energy savings and faster cycles, perfect for high-volume runs (ENGEL Injection Molding Machines).

• By Mold Type:

  • Single-Cavity Molds: One part per cycle, great for prototyping.

  • Multi-Cavity Molds⁷: Multiple parts per cycle, boosting output.

• Stack Molds: Layered molds for maximum production efficiency.

• By Materials:

  • Polypropylene (PP)⁸: Fast-cooling, cost-effective, impact-resistant.

  • ABS: Strong, aesthetically pleasing, slower to cool.

  • Polyvinyl Chloride (PVC): Flexible, less common due to flow challenges.

What Are the Typical Applications of Injection Molding for Toolboxes?

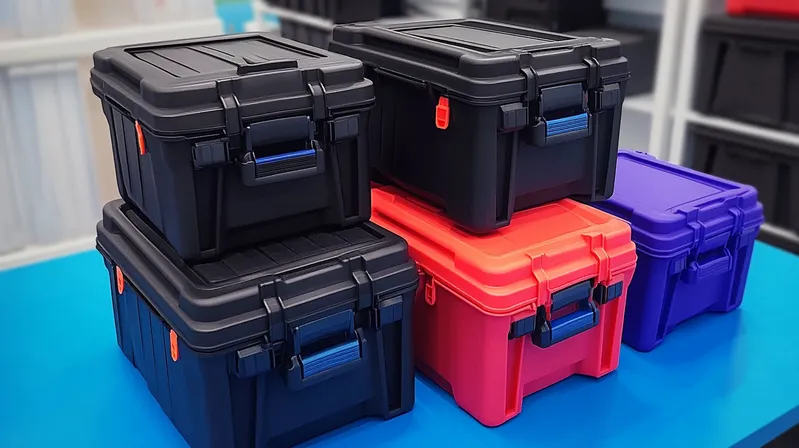

Injection molding shines in producing toolboxes for diverse industries, thanks to its ability to craft durable, lightweight, and feature-rich parts at scale.

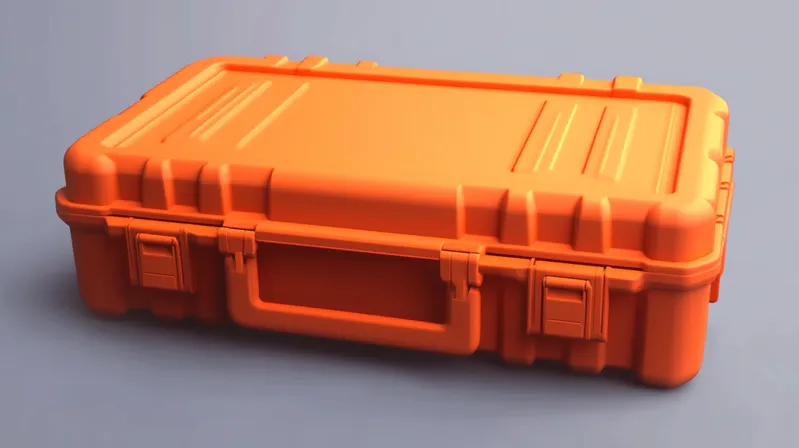

Injection molding is ideal for mass-producing toolboxes⁹ with complex designs¹⁰, such as integrated hinges and compartments, serving automotive, industrial, and household needs.

Application Scenarios

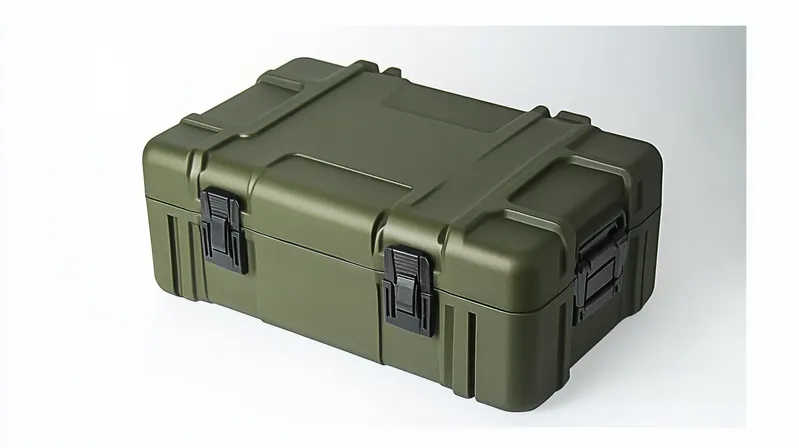

• Automotive: Durable toolboxes for mechanics, built to withstand tough conditions.

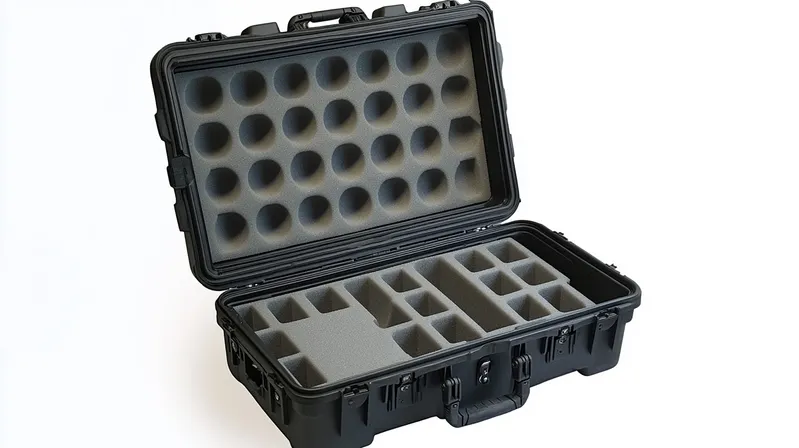

• Industrial: Large, custom-compartment toolboxes for professional workshops.

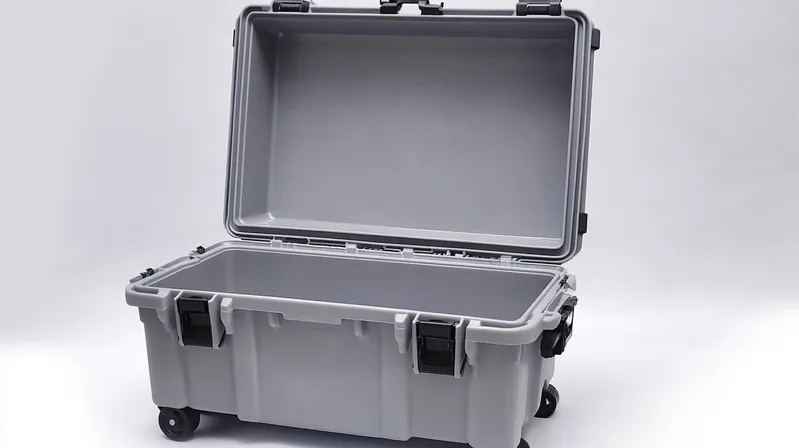

• Household: Portable, lightweight toolboxes for home DIY projects.

Companies like ARBURG leverage their ALLROUNDER series to automate toolbox production, demonstrating efficiency in high-volume settings (ARBURG Solutions).

Pros and Cons of Injection Molding for Toolbox Production

What Are the Key Steps in the Injection Molding Process for Toolboxes?

The injection molding process¹¹ for toolboxes is a multi-step workflow, each stage fine-tuned to maximize efficiency and quality.

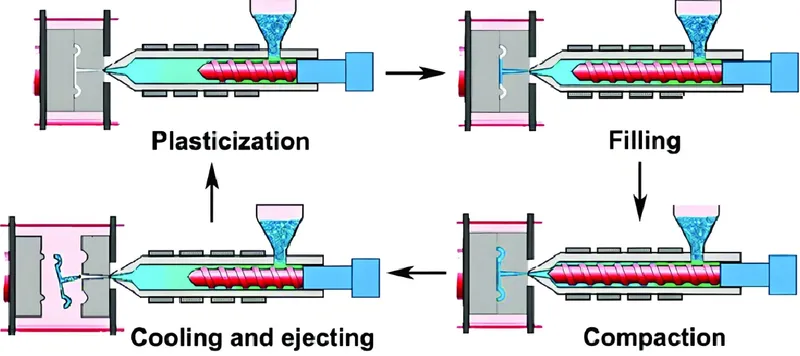

The process includes design, mold creation, machine setup, material feeding¹², injection, cooling, ejection, and post-processing, with cycle times typically ranging from 10-60 seconds.

Process Workflow Breakdown

1. Design Phase: CAD software designs the toolbox, ensuring uniform wall thickness (1-3 mm) and minimal undercuts.

2. Mold Creation: Steel molds for high-volume runs or aluminum for prototyping; multi-cavity options enhance output.

3. Machine Setup: Set injection pressure (500-1500 bar), cooling time¹³ (10-60 seconds), and mold temperature.

4. Material Feeding: Plastic granules (e.g., PP, ABS) are melted in the hopper.

5. Injection: Molten plastic fills the mold cavity under high pressure.

6. Cooling: The part solidifies, with cooling time varying by material (PP cools faster than ABS).

7. Ejection: The finished toolbox is removed from the mold.

8. Post-Processing: Trimming or adding components like handles, if required.

Material Compatibility and Efficiency

What Factors Influence the Efficiency of Injection Molding for Toolboxes?

Efficiency in injection molding hinges on several interdependent factors, each critical to optimizing production speed and quality.

Key factors include machine type, mold design, material selection, and process parameters like injection pressure and cooling time, all shaping production outcomes.

Machine Type

• All-Electric Machines: Faster cycles, lower energy use, ideal for high volumes.

• Hydraulic Machines: High force, energy-heavy, suited for larger parts.

Mold Design

• Multi-Cavity Molds: Multiple parts per cycle, increasing throughput.

• Stack Molds: Layered design for maximum output in limited space.

Material Selection

• PP: Quick cooling, high-speed production.

• ABS: Detailed designs, slower cycles.

Process Parameters

• Injection Pressure: Ensures mold filling, but excess can wear equipment.

• Cooling Time: Optimized systems cut cycle times significantly.

How Can You Optimize Injection Molding for Toolbox Production?

Optimization requires strategic choices in design, materials, and equipment to maximize efficiency and minimize costs.

Use multi-cavity molds, fast-cooling materials like PP, and all-electric machines to enhance energy efficiency and production speed.

Design Checklist for Efficient Toolbox Production

• Maintain uniform wall thickness (1-3 mm) to avoid defects.

• Reduce undercuts to simplify molds and cut costs.

• Integrate hinges and latches into the mold to skip post-processing.

• Match size, weight, and durability to intended use.

Process Selection Decision-Making

What Are the Related Technologies to Injection Molding for Toolbox Production?

Injection molding doesn’t exist in isolation—its efficiency ties into a network of related technologies.

Upstream processes like mold design and material production, downstream steps like assembly, and alternatives like blow molding or 3D printing all connect to injection molding.

Upstream Technologies

• Plastic Material Production: Supplies PP, ABS, and other raw materials.

• Mold Design: Precision molds via CNC machining (Injection Mold Tooling Guide).

Downstream Technologies

• Assembly: Adding handles or reinforcements post-molding.

• Packaging: Preparing toolboxes for distribution.

Alternative Processes

• Blow Molding: For hollow parts, less precise than injection molding.

• Rotational Molding: Slow, suited for large, hollow items.

• 3D Printing: Great for prototypes, not mass production (Injection Molding Design Guide).

Conclusion

Injection molding machines excel at producing plastic toolboxes efficiently, particularly for high-volume needs, thanks to their speed, automation, and ability to craft complex designs with minimal waste. Advances like all-electric machines and multi-cavity molds amplify this efficiency, cutting energy use and boosting output. However, high initial tooling costs and material constraints require careful planning.

By aligning machine type, mold design, material choice, and process parameters, manufacturers can tailor toolbox production to specific goals—balancing cost, quality, and speed effectively.
