The injection mold guide system1 ensures precise alignment of mold halves during production, reducing defects and wear while maintaining high-quality plastic parts.
The injection mold guide system uses guide pins and bushings2 to align mold halves accurately, ensuring consistent part quality in industries like automotive, medical, and electronics.
Understanding the intricacies of the injection mold guide system is key to optimizing your injection molding process. Delve deeper to explore how different types of guide systems and materials affect the final part quality and mold longevity3.
The injection mold guide system is crucial for producing defect-free plastic parts.True
Proper alignment prevents defects like flash and warpage, ensuring parts meet design specifications.
Guide systems are only necessary for large molds.False
Even small molds benefit from guide systems to maintain alignment and part quality, especially in high-precision applications.
- 1. What is the Injection Mold Guide System?
- 2. How Does the Injection Mold Guide System Work?
- 3. What are the Different Types of Guide Systems?
- 4. What are the Applications of the Injection Mold Guide System?
- 5. What are the Benefits and Costs of Using a Guide System?
- 6. What are the Technical Details of the Guide System?
- 7. What are the Practical Tips for Designing and Maintaining a Guide System?
- 8. What are the Related Technologies to the Guide System?
- 9. Conclusion
What is the Injection Mold Guide System?
The injection mold guide system is a vital component in the injection molding process, ensuring that the two halves of the mold—the stationary side (A-side) and the moving side (B-side)—align perfectly during production. This alignment is essential for creating high-quality plastic parts and preventing defects such as flash, warpage, or incomplete filling. In this blog post, we’ll explore how the guide system works, its different types, applications, benefits, technical details, practical tips, and related technologies.

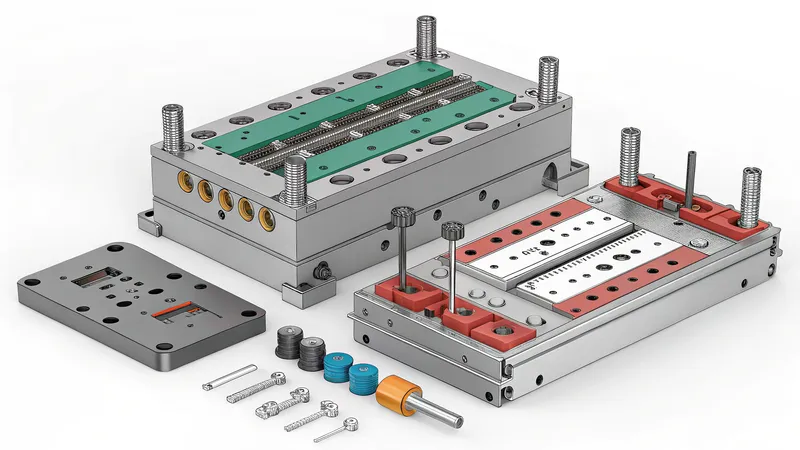

Overview of the Guide System
The guide system typically consists of guide pins and guide bushings. Guide pins are cylindrical rods installed on the moving half of the mold, while guide bushings are corresponding sleeves on the stationary half. As the mold closes, the pins slide into the bushings, ensuring precise alignment before molten plastic is injected into the mold cavity. This system not only enhances part quality but also protects the mold from wear and damage over repeated cycles.
Guide pins and bushings are the core components of the injection mold guide system.True
These components work together to ensure the mold halves align correctly during the injection molding cycle.
How Does the Injection Mold Guide System Work?
The guide system ensures the mold halves4 align correctly during the injection molding cycle5, preventing defects and maintaining consistent part quality.
During molding, guide pins6 on the moving mold half slide into bushings on the stationary half, ensuring precise alignment before plastic injection.
The Mechanism of Alignment
-
Mold Closing7: As the mold closes, guide pins on the B-side slide into guide bushings on the A-side, aligning the two halves with pinpoint accuracy.
-
Injection8: Once aligned, molten plastic is injected into the mold cavity, filling it uniformly without gaps or overlaps caused by misalignment.
- Cooling and Ejection9: After the plastic cools and solidifies, the mold opens, and the guide pins facilitate smooth separation, maintaining alignment for the next cycle.
This process is critical for parts requiring tight tolerances, such as medical devices or automotive components, where misalignment can compromise functionality or aesthetics.
Proper alignment reduces the risk of defects in injection molded parts.True
Misalignment can cause issues like flash, warpage, or incomplete filling, affecting part quality.
Guide systems are only used in high-precision molds.False
While essential for high-precision molds, guide systems are also used in standard molds to ensure consistent quality and reduce wear.

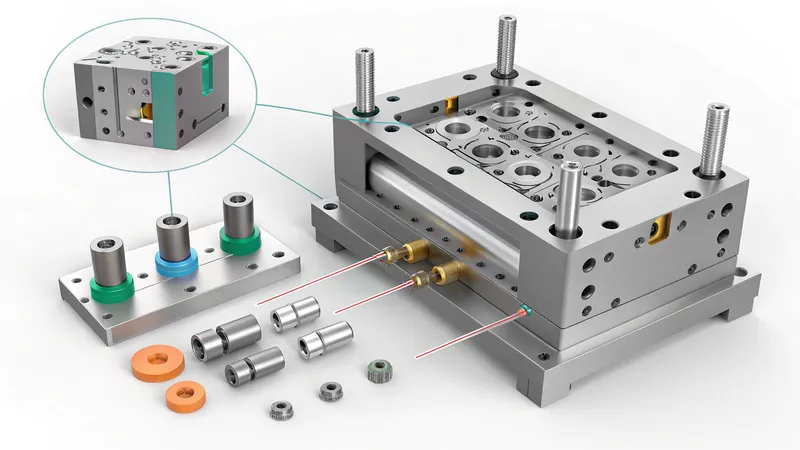

What are the Different Types of Guide Systems?
Injection mold guide systems come in various forms, each designed to meet specific alignment needs based on mold size, pressure, and precision requirements.
Common types include standard, stepped, shoulder, and dowel guide pins, each offering unique benefits for alignment and stability.
| Type | Function | Typical Use Case |
|---|---|---|
| Standard Guide Pins10 | General alignment of mold halves | Small to medium molds, low precision |
| Stepped Guide Pins11 | Increased stability under high pressure | Large molds, high clamping force |
| Shoulder Guide Pins12 | Precise positioning, prevents over-compression | High-precision molds, strict tolerances |
| Dowel Pins | Alignment during assembly, frequent disassembly | Molds requiring regular maintenance |
| Guide Bushings | Reduce friction, house guide pins | All mold types, wear-resistant materials |
Standard Guide Pins
Standard guide pins are the go-to choice for general alignment in small to medium-sized molds. They’re cost-effective and sufficient for applications with moderate precision needs.
Stepped Guide Pins
Stepped guide pins feature a larger diameter at the base, providing enhanced stability. They’re ideal for larger molds or those subjected to high clamping forces.
Shoulder Guide Pins
Shoulder guide pins include a shoulder that acts as a stop, ensuring precise positioning and preventing over-compression. They’re perfect for high-precision molds with strict tolerance requirements.
Dowel Pins
Dowel pins are used primarily during mold assembly or for molds that need frequent disassembly. They ensure accurate alignment during setup and maintenance.
Stepped guide pins are better for large molds than standard guide pins.True
The stepped design provides additional stability, which is necessary for larger molds or those under high pressure.
All guide pins are made from the same material.False
Guide pins are typically made from hardened steel or high-strength alloys, but the specific material can vary based on the application and wear requirements.
What are the Applications of the Injection Mold Guide System?
The injection mold guide system is indispensable across industries that demand high-precision plastic parts, ensuring quality and efficiency.
It is widely used in automotive, medical, and electronics industries for parts like dashboards, syringes, and smartphone casings.
Automotive Industry
In automotive manufacturing, guide systems are used to mold components like dashboards, interior trim, and connectors. These parts require exact alignment to ensure proper assembly and durability.
Medical Industry
For medical devices such as syringes, surgical tools, and implants, precision is non-negotiable. The guide system ensures these parts meet stringent dimensional and safety standards.
Electronics Industry
In electronics, guide systems help mold casings, connectors, and small components for devices like smartphones and computers, where precise alignment is critical for functionality.
The guide system is only used in high-volume production.False
While beneficial for high-volume production, guide systems are also used in low-volume or prototype molds to ensure part quality.
Guide systems reduce mold wear in all applications.True
By maintaining alignment, guide systems minimize friction and stress on mold components, extending the mold’s lifespan.
What are the Benefits and Costs of Using a Guide System?
The guide system offers significant advantages despite adding to initial mold costs, making it a worthwhile investment for long-term production.
Benefits include consistent part quality, reduced mold wear, and increased production efficiency, outweighing the initial investment.
Benefits
-
Consistent Part Quality: Precise alignment reduces defects, ensuring parts meet design specifications.
-
Reduced Mold Wear: Proper alignment minimizes friction and stress, extending mold life
-
Increased Efficiency: Fewer adjustments and less downtime boost production throughput.
Costs
-
Initial Investment: Designing and fabricating the guide system increases upfront costs.
-
Maintenance: Worn guide pins and bushings require periodic replacement.
The long-term savings from reduced defects and extended mold life often offset these costs, especially in high-volume production.
The initial cost of a guide system is outweighed by its long-term benefits.True
Reduced wear and downtime lead to cost savings over time, making the guide system a worthwhile investment.
Guide systems eliminate the need for mold maintenance.False
While they reduce wear, guide systems still require regular inspection and maintenance to ensure optimal performance.
What are the Technical Details of the Guide System?
The guide system’s effectiveness hinges on material selection and key engineering parameters tailored to the molding process.
Guide pins are typically made of hardened steel, while bushings use bronze or self-lubricating materials to reduce friction.
Materials Used
-
Guide Pins: Crafted from hardened steel (e.g., H13) or high-strength alloys to resist wear, pressure, and temperatures up to 600°C.
-
Guide Bushings: Made from bronze or self-lubricating materials like PTFE-impregnated bronze to minimize friction and wear.
Key Parameters
-
Clamping Force: Measured in tons, it must secure the mold without damaging the guide system.
-
Wear Resistance: Materials must endure thousands of cycles under high heat and pressure.
Material and parameter choices depend on factors like the plastic type, mold size, and production volume.
Guide pins must be made from the hardest possible material.False
While hardness is important, the material must also be tough and resistant to wear and heat, balancing durability with performance.
Self-lubricating bushings reduce the need for maintenance.True
Self-lubricating materials minimize friction, reducing wear and the frequency of maintenance.

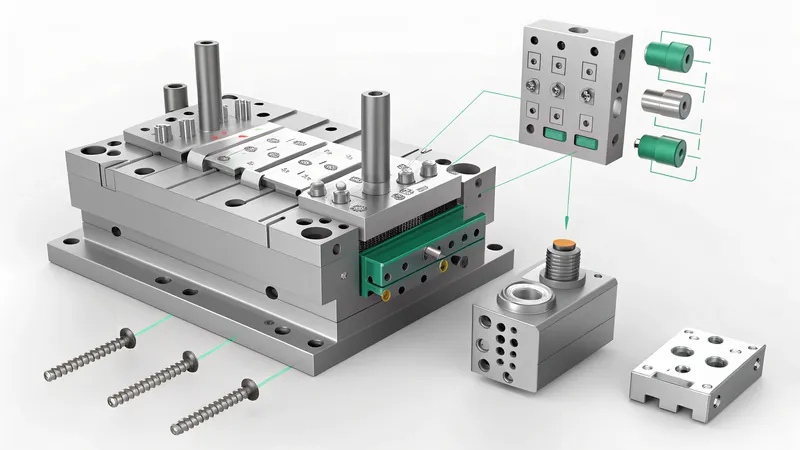

What are the Practical Tips for Designing and Maintaining a Guide System?
Effective design and maintenance are key to maximizing the guide system’s performance and lifespan.
Key tips include sizing guide pins correctly, incorporating vent holes, and regularly inspecting for wear.
Design Checklist
-
Ensure guide pins are sized and positioned based on mold size and weight (e.g., at least two pins for small molds, more for larger ones).
-
Incorporate vent holes in bushings to release trapped air during mold closing.
-
Use thrust pads for molds with large lateral pressures to protect the guide system.
Maintenance Tips
-
Inspect guide pins and bushings regularly for wear or damage.
-
Replace worn components promptly to prevent misalignment.
-
Lubricate bushings if not using self-lubricating materials.
Regular maintenance of the guide system is unnecessary if high-quality materials are used.False
Even with high-quality materials, regular inspection and maintenance are essential to ensure long-term performance.
Vent holes in bushings improve mold performance.True
Vent holes prevent air pockets that could affect alignment and part quality.
The guide system integrates with other technologies in injection molding to deliver high-quality results.
Related technologies include CNC machining for mold fabrication, material science for component selection, and quality control systems for part verification.
CNC Machining
CNC machining ensures precision in fabricating mold cavities, cores, and guide system components, critical for accurate alignment.
Material Science
Material science guides the selection of durable materials for guide pins, bushings, and plastics, impacting the system’s longevity and performance.
Quality Control Systems
Post-ejection quality control verifies part dimensions, ensuring the guide system’s alignment translates to accurate parts.
CNC machining is only used for creating mold cavities.False
CNC machining is also used for fabricating guide pins, bushings, and other mold components.
Material selection affects the performance of the guide system.True
The choice of materials for guide pins and bushings directly impacts their wear resistance and longevity.
Conclusion
The injection mold guide system is a cornerstone of injection molding, ensuring high-quality plastic parts with precision and consistency. By mastering its operation, types, applications, and maintenance, manufacturers can enhance their processes, reduce costs, and extend mold life. Whether you’re in automotive, medical, or electronics manufacturing, the guide system is a critical tool for success.
-
