Injection molding is a cornerstone of modern manufacturing, renowned for its ability to produce precise, high-quality plastic parts in large volumes. Among its many applications, creating button molds stands out due to the demand for durable, consistent buttons across industries like fashion, electronics, and automotive. This blog post dives into the fascinating process of how an injection molding machine crafts button molds1, offering insights for beginners and experts alike.
Injection molding machines create button molds by melting plastic, injecting it into a precisely designed mold, cooling it to form the button shape, and ejecting the finished product, making it ideal for high-volume production of consistent, durable buttons.
Understanding this process can empower manufacturers to optimize production, select the right materials, and design effective molds. Let’s explore the journey from raw plastic to finished button, step by step.
Injection molding is the most cost-effective method for producing button molds in large quantities.True
The process enables high-volume production with minimal material waste and consistent quality, reducing overall costs.
Injection molding can only be used for simple button designs.False
Advanced mold designs and techniques allow for the creation of complex button shapes and features.
- 1. What is Injection Molding and How Does it Work for Button Molds?
- 2. What are the Typical Applications of Button Molds Created by Injection Molding?
- 3. How Does Injection Molding Compare to Other Methods for Creating Button Molds?
- 4. What is the Full Workflow of the Injection Molding Process for Button Molds?
- 5. How Do Different Materials Affect the Injection Molding Process for Button Molds?
- 6. What are the Key Design Considerations for Button Molds in Injection Molding?
- 7. What are the Related Technologies in the Injection Molding Process for Button Molds?
- 8. Conclusion
Injection molding2 is a manufacturing technique where molten plastic is injected into a mold cavity, cooled, and solidified to form a specific shape. For button molds, this method excels due to its precision and efficiency, producing uniform buttons for various applications.
Injection molding for button molds involves melting plastic, injecting it into a mold, cooling it to form the button, and ejecting the finished product, ensuring precision and efficiency in mass production3.
| Aspect | Details |
|---|---|
| Process | Melting plastic, injecting into a mold, cooling, and ejecting the button. |
| Materials | Common plastics include ABS, polypropylene (PP), and polycarbonate (PC). |
| Applications | Used in clothing, electronics, automotive, and more for durable buttons. |

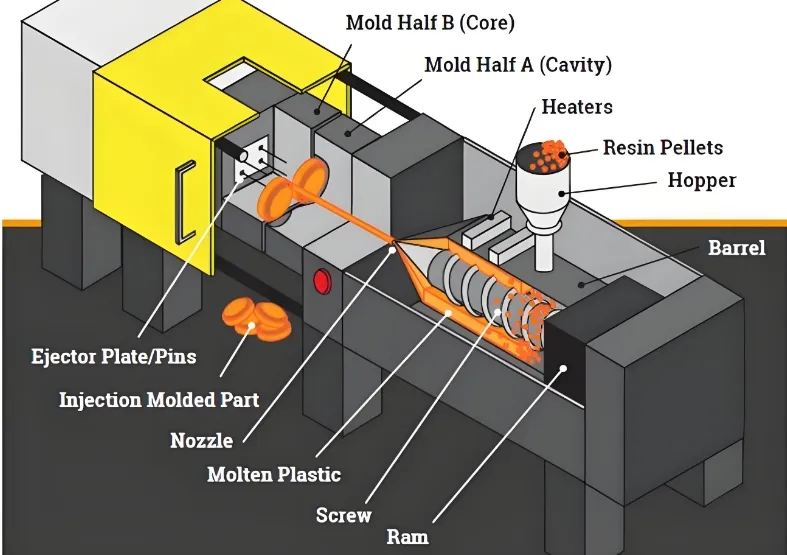

Basic Principles of Injection Molding

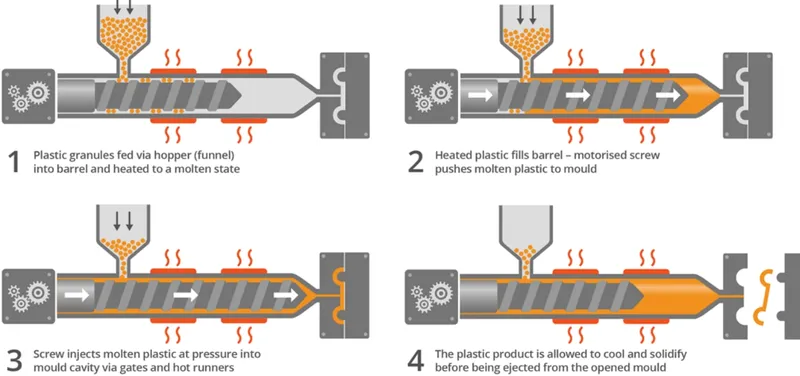

The process unfolds in four key stages:
-
Clamping: The mold is securely closed by the machine’s clamping unit.
-
Injection: Plastic pellets are melted and injected into the mold under high pressure.
-
Cooling: The plastic cools and hardens into the button’s shape.
-
Ejection: The mold opens, and the finished button is ejected.
This cycle is fast and repeatable, making it perfect for mass-producing buttons.
Classification of Injection Molding for Button Molds
Injection molding varies based on mold type, material, and application:
| Classification | Details |
|---|---|
| By Mold Type | Single-cavity for small runs; multi-cavity for high-volume production. |
| By Material | Thermoplastics like ABS, PP, and PC4 are common for buttons. |
| By Application | Buttons for clothing, electronics, automotive, and decorative items. |
These classifications guide manufacturers in tailoring the process to their needs.
Multi-cavity molds increase production efficiency for button molds.True
They allow multiple buttons to be produced in one cycle, cutting down production time.
Injection molding is only suitable for plastic materials.False

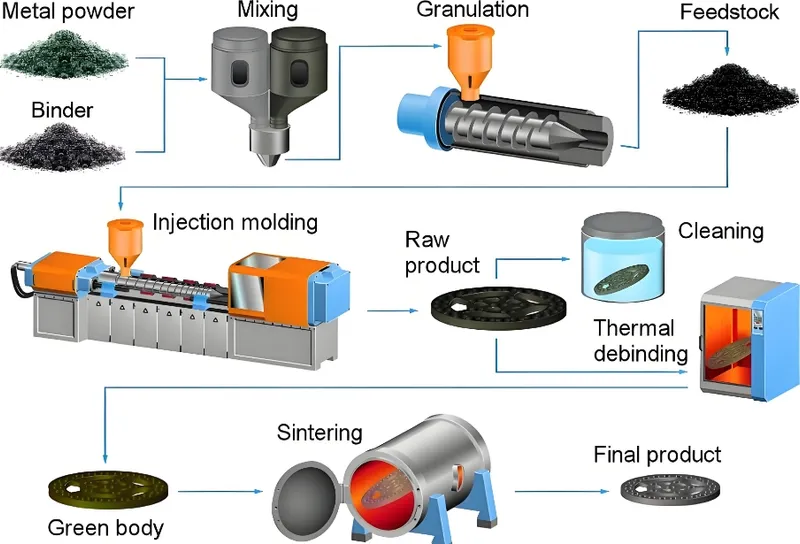

While plastics dominate, the process can also handle metals and other materials with adaptations.

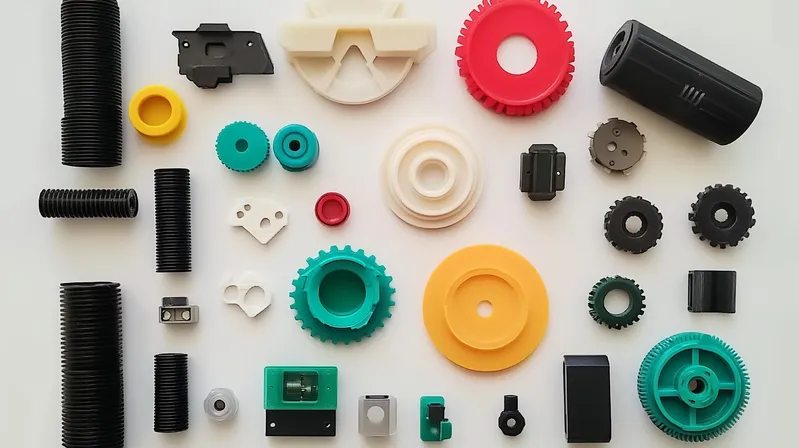

Injection-molded button molds serve a wide range of industries, thanks to their precision and durability.

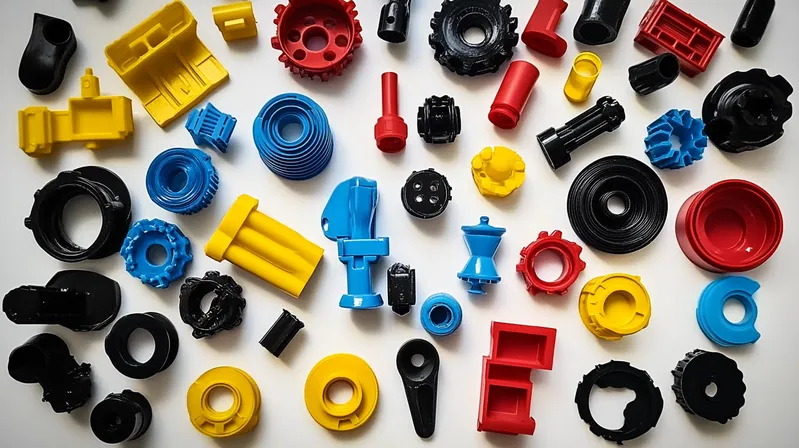

Typical applications include clothing fasteners, electronic device buttons, automotive controls5, and decorative buttons, where consistency and strength are key.
Clothing Industry
Buttons for shirts, jackets, and other garments are often injection-molded from flexible, durable materials like polypropylene (PP).
Automotive Industry
Dashboard switches and controls use polycarbonate (PC) buttons for their heat resistance and strength.
Electronics Industry
Buttons on keyboards and remote controls benefit from ABS’s impact resistance and smooth finish.
Decorative Applications
Intricate, high-quality decorative buttons for fashion and accessories showcase the process’s versatility.
Injection-molded buttons are only used in low-cost products.False
They’re also found in high-end products like luxury clothing and electronics due to their precision.
Injection molding is the preferred method for producing buttons in the clothing industry.True
It delivers the high precision and consistency needed for clothing fasteners.
Injection molding isn’t the only game in town—3D printing6 and casting7 also produce button molds. Each method has its strengths and trade-offs.
Injection molding excels in high-volume production with consistent quality, while 3D printing suits prototyping, and casting works for small runs with intricate details.
| Method | Pros | Cons |
|---|---|---|
| Injection Molding | High precision, cost-effective for large runs, consistent quality. | High initial mold cost, long setup time. |
| 3D Printing | Flexible for prototyping, quick design changes, good for small batches. | Slower for volume, visible layer lines. |
| Casting | Ideal for small runs, intricate details, high surface finish for prototypes. | Less precise for high volume, complex setup. |
When to Choose Injection Molding
Opt for injection molding when:
- You need high-volume production.
-
Precision and consistency are non-negotiable.
-
The design is finalized.
When to Choose Alternatives
-
3D Printing: Great for prototyping or small batches with frequent design tweaks.
-
Casting: Best for small runs requiring detailed finishes.
Injection molding offers the best cost-efficiency for large-scale button production.True
It minimizes waste and speeds up production, lowering per-unit costs.
Injection molding is always the fastest method for producing button molds.False
For small runs or prototypes, 3D printing or casting can be quicker due to shorter setup times.

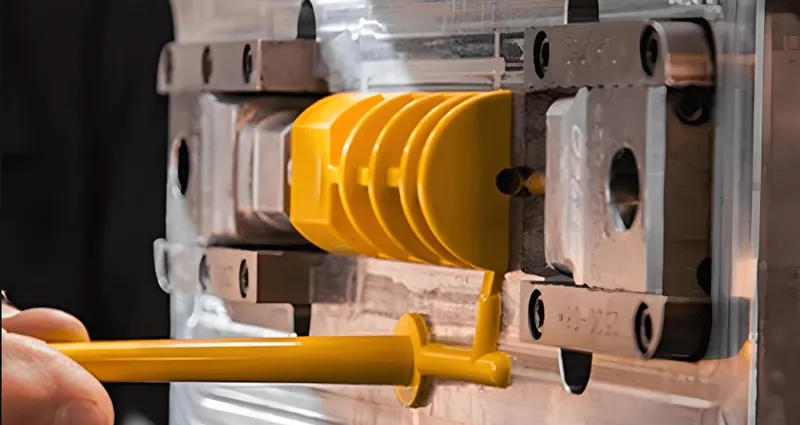

The injection molding process8 for button molds is a precise sequence of steps, each governed by critical parameters.
The workflow includes mold creation, material feeding, melting and injection, cooling and solidification, and ejection, with tight control over temperature, pressure, and timing.
| Stage | Description | Key Parameters/Considerations |
|---|---|---|
| Mold Creation9 | Design and machine a mold (usually steel) to match the button’s shape. | Steel for durability; aluminum for lower volumes. |
| Material Feeding | Feed plastic pellets (e.g., ABS, PP) into the hopper. | Material choice affects flow and shrinkage. |
| Melting and Injection | Melt the plastic and inject it into the mold under high pressure. | Temperature10 (e.g., ABS ~200–240°C); pressure ensures detail. |
| Cooling and Solidification11 | Cool the plastic inside the mold to harden it. | Cooling time (20–60 seconds) impacts quality and cycle time. |
| Ejection | Open the mold and eject the button with pins. | Draft angles (1–2°) ease ejection. |
Key Parameters
-
Temperature: Varies by material (e.g., PP ~160–180°C, PC ~280–320°C).
-
Pressure: Ensures the mold fills completely, critical for intricate designs.
-
Cooling Time: Balances speed and quality—too short, and defects arise.
The mold creation step is the most time-consuming part of the process.True
Designing and machining a precise mold takes significant time, especially for complex buttons.
Cooling time has no impact on button quality.False
Proper cooling prevents warping and ensures shape retention.

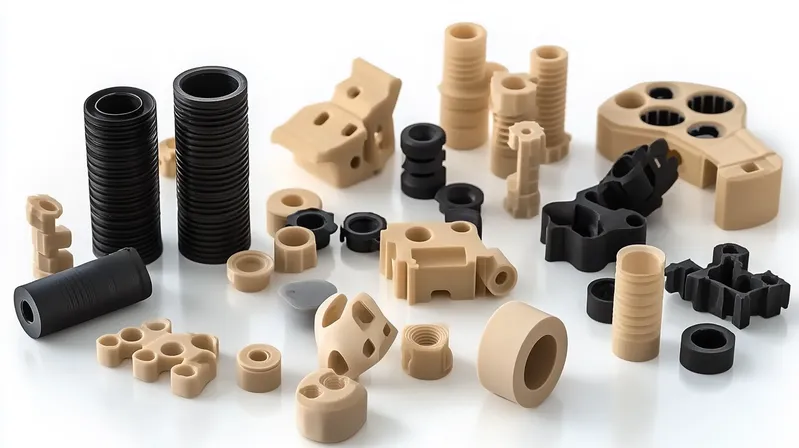

Material selection shapes the process and the final button’s properties.
Common materials like ABS, PP, and PC are chosen for durability, flexibility, and heat resistance, each requiring specific processing conditions.
| Material | Properties | Processing Considerations |
|---|---|---|
| ABS12 | High impact resistance, durable. | Melts at ~200–240°C, prone to shrinkage if not cooled properly. |
| PP13 | Flexible, ideal for clothing buttons. | Melts at ~160–180°C, higher shrinkage needs mold adjustment. |
| PC14 | Heat-resistant, strong, for electronics. | Melts at ~280–320°C, energy-intensive processing. |
Material Impact
-
ABS: Perfect for tough buttons but needs precise cooling.
-
PP: Flexible and cost-effective, though shrinkage must be managed.
-
PC: Strong and heat-resistant, but requires higher energy.
Material choice affects the cost and Én efficiency of the process.True
Materials with higher melting points or special needs increase energy and equipment demands.
All plastics can be used interchangeably in injection molding.False
Each plastic has unique processing needs, making selection critical.

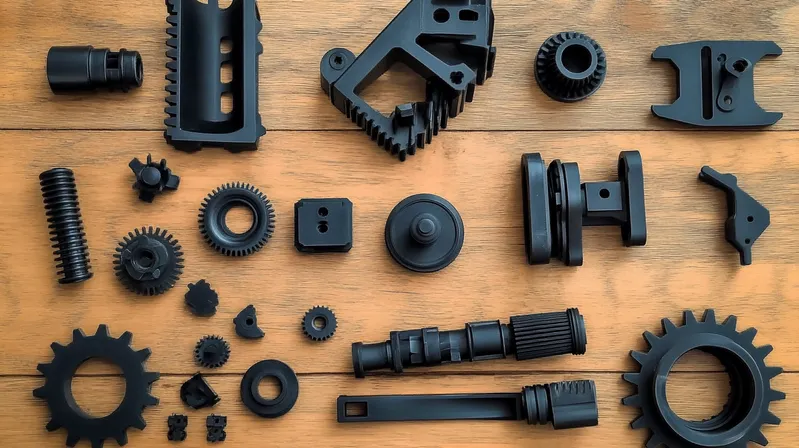

Effective mold design ensures quality and efficiency.
Key considerations include uniform wall thickness, draft angles, and gate/vent placement for smooth ejection and defect-free buttons.
Design Checklist
| Design Element | Recommendation | Notes |
|---|---|---|
| Wall Thickness | Keep uniform (1–2 mm). | Prevents warping and uneven cooling. |
| Draft Angles | Use 1–2° for easy ejection. | Reduces damage during removal. |
| Gate Placement | Position for even filling. | Avoids air traps and incomplete fills. |
| Vent Placement | Ensure venting to avoid air pockets. | Essential for detailed designs. |
| Shrinkage Allowance | Adjust mold for material shrinkage (e.g., PP ~1–2%). | Ensures accurate final dimensions. |
Process Selection Guide
-
High-volume need? Use injection molding.
-
Prototyping? Try 3D printing.
-
Intricate small runs? Consider casting.
Proper gate and vent placement reduces defects.True
It ensures smooth flow and prevents air traps, improving quality.
Uniform wall thickness isn’t important.False
It prevents defects like sink marks and warping.
Injection molding connects to a network of upstream and downstream technologies.
Related technologies include mold design and machining (upstream) and assembly or finishing (downstream), creating a seamless workflow.
| Technology | Role | Impact |
|---|---|---|
| Mold Design | Precision cavity design. | Ensures accurate button features. |
| CNC Machining | Machining molds from steel. | Provides durability for high volumes. |
| Assembly | Attaching buttons to products. | Completes the product. |
| Finishing | Painting or coating buttons. | Enhances appearance and function. |
Upstream and Downstream
-
Upstream: Mold design (via CAD) and CNC machining set the stage.
-
Downstream: Assembly and finishing polish the product.
Mold design is a critical upstream technology.True
It directly affects button precision and consistency.
Finishing processes are unnecessary.False
They enhance aesthetics and functionality, especially for premium products.
Conclusion
Injection molding transforms raw plastic into precise, durable button molds with unmatched efficiency. From material selection to mold design and process control, every step matters in delivering quality buttons for diverse applications.
-
