Texturing injection molded surfaces involves applying patterns or finishes to molds, which transfer to plastic parts during molding, enhancing aesthetics, functionality, and defect concealment.
Understanding how to texture injection molded surfaces effectively is crucial for industries seeking to improve product appearance, grip, or durability without additional post-processing. This guide explores the methods, benefits, and considerations for texturing, helping you make informed decisions for your manufacturing needs.
Texturing in the mold reduces post-processing costs.True
By incorporating textures directly into the mold, parts emerge with the desired finish, eliminating the need for secondary operations like painting or polishing.
Texturing is only used for aesthetic purposes.False
While aesthetics are a key benefit, texturing also improves functionality, such as enhancing grip or reducing glare, and can hide manufacturing defects.
- 1. What Are the Common Methods for Texturing Injection Molded Surfaces?
- 2. What Are the Steps in the Texturing Process for Injection Molding?
- 3. What Are the Key Factors to Consider When Texturing Injection Molded Surfaces?
- 4. What Are the Applications of Texturing in Injection Molding?
- 5. What Are the Differences Between Texturing Methods?
- 6. Conclusion
What Are the Common Methods for Texturing Injection Molded Surfaces?
Texturing methods vary in complexity and suitability, each offering unique advantages for different applications and materials.
Common methods for texturing injection molded surfaces1 include sanding, EDM spark erosion, media blasting, chemical photoetching, and laser etching, each suited to specific finishes and part geometries.
| Method | Finish Type | Best For |
|---|---|---|
| Sanding/Polishing | Smooth, glossy | Simple surfaces, accessible areas |
| EDM Spark Erosion2 | Fine, smooth | Deep slots, sharp corners |
| Media Blasting | Matte, satin | Uniform, fast finishes |
| Chemical Photoetching3 | Patterned (e.g., leather) | Cost-effective for patterns |
| Laser Etching | Complex 3D textures | Precise, detailed designs |
Sanding and Polishing
Sanding and polishing use tools like rotary devices and sandpapers to create smooth, glossy finishes. This method is ideal for simple, accessible surfaces but may struggle with deep or complex geometries.
EDM Spark Erosion
EDM (Electrical Discharge Machining) uses electrical discharges to erode the mold surface, creating fine, smooth finishes. It’s particularly effective for deep slots or sharp corners where other methods can’t reach.
Media Blasting
Media blasting involves propelling abrasive materials (e.g., glass beads) at high pressure to create matte or satin finishes. It’s fast, cost-effective, and ensures uniform coverage, making it popular for large surfaces.
Chemical Photoetching
Chemical photoetching applies a photoresist to the mold, exposes it to UV light with a pattern, and etches the design using acid. This method is excellent for replicating textures like leather or wood grain but cannot handle undercuts.
Laser Etching
Laser etching uses lasers to engrave detailed 3D textures directly onto the mold. It’s ideal for complex shapes and undercuts but requires significant setup time and cost.
Laser etching is the most versatile texturing method.True
Laser etching can create intricate 3D textures on complex geometries, including undercuts, making it highly versatile.
All texturing methods are equally cost-effective.False
Methods like media blasting are more affordable for simple finishes, while laser etching is costlier due to its precision and setup requirements.
What Are the Steps in the Texturing Process for Injection Molding?
The texturing process requires careful planning and execution to ensure the desired finish is achieved consistently across production runs.
The texturing process4 for injection molding involves selecting a method, preparing the mold, applying the texture, and verifying the finish, with each step tailored to the chosen technique.
Method Selection
Choose a texturing method based on the desired finish, part geometry, and budget. For example, media blasting5 is suitable for matte finishes, while laser etching6 is better for detailed patterns.

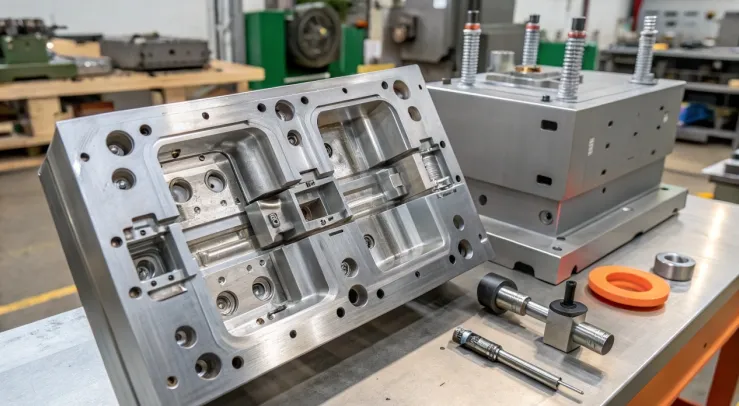

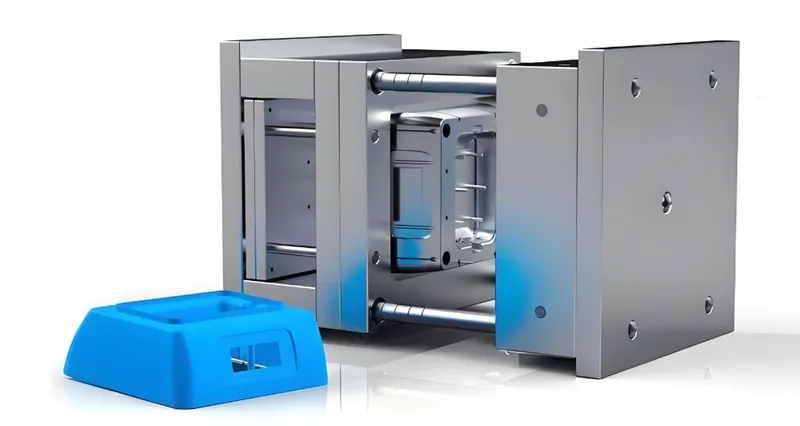

Mold Preparation
Prepare the mold surface by cleaning and, if necessary, rough machining to remove tool marks. This ensures the texture applies evenly.
Texture Application
Apply the texture using the selected method:
-
Sanding: Use progressively finer grits to achieve the desired smoothness.
-
EDM: Set up the electrode and control spark parameters for precision.
-
Blasting: Adjust media type and pressure for uniform coverage.
-
Etching: Apply photoresist, expose, and etch with acid.
-
Laser: Program the laser path and engrave the design.
Verification
Inspect the mold to ensure the texture meets specifications. Use tools like profilometers or gloss meters to measure surface roughness or gloss levels.
Texturing always requires specialized equipment.False
While methods like laser etching require advanced machinery, simpler techniques like sanding can be done with basic tools.
Proper mold preparation is crucial for texture consistency.True
Cleaning and prepping the mold ensures even texture application and prevents defects in the final part.
What Are the Key Factors to Consider When Texturing Injection Molded Surfaces?
Several factors influence the success of texturing, from material choice to mold design, impacting both the process and the final product.
Key factors in texturing injection molded surfaces include material compatibility7, texture depth8, draft angles, and mold accessibility9, which affect finish quality and production efficiency.
Material Compatibility
Not all plastics hold textures equally well. Rigid plastics like ABS or polypropylene are ideal, while soft materials like TPE may not retain fine details.
| Material | Texture Suitability |
|---|---|
| ABS | Excellent for most textures |
| Polypropylene | Good for matte and textured finishes |
| Polycarbonate | Limited to lighter textures |
| TPE | Poor for detailed textures |
Texture Depth and Draft Angles
Deeper textures require larger draft angles to ensure parts release from the mold without damage. For example, a D-3 texture may need a 3° draft angle.
Mold Accessibility
Complex geometries or deep cavities may limit texturing options. Methods like EDM or laser etching are better suited for hard-to-reach areas.
Production Volume
For high-volume production, durable textures like those created by EDM or chemical etching are preferable to ensure longevity.
All plastics can be textured equally well.False
Material properties like hardness and flow affect how well textures are replicated; rigid plastics perform better than soft ones.
Draft angles are critical for textured parts.True
Proper draft angles prevent parts from sticking in the mold, especially with deeper textures.
What Are the Applications of Texturing in Injection Molding?
Texturing10 enhances both the appearance and functionality of injection molded parts across various industries.
Texturing is used in automotive11, consumer goods, medical devices, and electronics to improve aesthetics, grip, durability, and defect concealment.
Automotive
Textures like faux leather or wood grain are applied to dashboards and trim for a premium look, while functional textures improve grip on handles.
Consumer Goods
Textured surfaces on appliances or tools enhance ergonomics and hide fingerprints or scratches.
Medical Devices
Matte finishes reduce glare on surgical tools, and textured grips improve handling in sterile environments.
Electronics
Tactile textures on buttons or casings improve user experience and durability.
Texturing is primarily used in high-end products.False
While common in premium goods, texturing is also used in everyday products to improve functionality and hide defects.
Texturing can enhance product durability.True
Certain textures improve scratch resistance or aid in paint adhesion, extending the product’s lifespan.
What Are the Differences Between Texturing Methods?
Each texturing method has unique characteristics, making them suitable for different applications and budgets.
Texturing methods differ in precision, cost, and suitability for complex geometries, with options ranging from simple sanding to advanced laser etching.
Precision and Detail
-
Laser Etching: Offers the highest precision for intricate designs.
-
Chemical Photoetching: Good for patterns but less detailed than laser.
-
Media Blasting: Provides uniform but less detailed finishes.
Cost and Time
-
Media Blasting: Low-cost and fast, ideal for large surfaces.
-
Laser Etching: High-cost due to setup and equipment.
- Sanding: Affordable but time-consuming for large areas.
Geometry Compatibility
-
EDM: Best for deep or complex geometries.
-
Sanding: Limited to accessible surfaces.
-
Laser Etching: Handles undercuts and complex shapes.
Laser etching is the most cost-effective method for small batches.False
Laser etching is expensive for small runs due to setup costs; simpler methods like media blasting are more economical.
EDM is ideal for texturing deep cavities.True
EDM can access and texture areas that other methods cannot, making it perfect for complex molds.
Conclusion
Texturing injection molded surfaces is a powerful technique to enhance both the aesthetics and functionality of plastic parts. By choosing the right method—whether it’s sanding, EDM, media blasting, chemical etching, or laser etching—you can achieve the desired finish while optimizing costs and production efficiency. Consider factors like material compatibility, texture depth, and mold design to ensure success.
-
