Ever wondered how the toothbrush you use every day is crafted? Behind its simple design lies a sophisticated manufacturing process that ensures durability, effectiveness, and safety. At the core of this process is injection molding, a technique that enables the mass production of toothbrush handles with precision and consistency. This article takes you through the journey of how toothbrushes are made using injection molding machines, exploring the materials, steps, and advantages of this method.
Injection molding is the primary technique for producing toothbrush handles, utilizing thermoplastics like polypropylene to create ergonomic designs, with nylon bristles attached separately to ensure effective oral care.
Understanding this process reveals the engineering marvel behind an everyday essential. Let’s dive into the details of how injection molding1 transforms raw materials into the toothbrushes we rely on.
Injection molding is the only method used to manufacture toothbrushes.False
While injection molding is the most common method for toothbrush handles, alternatives like extrusion or 3D printing are used for specific designs or prototypes.
Injection molding allows for the production of toothbrushes with ergonomic designs.True
The precision of injection molding enables the creation of complex, ergonomic shapes that enhance grip and user comfort.
- 1. What are the Common Materials Used in Toothbrush Manufacturing?
- 2. What are the Steps in the Injection Molding Process for Toothbrushes?
- 3. How are Bristles Attached to Toothbrush Handles?
- 4. Why is Injection Molding Preferred for Toothbrush Manufacturing?
- 5. What are the Applications of Injection Molding in Toothbrush Manufacturing?
- 6. What are the Differences Between Injection Molding and Other Methods for Toothbrushes?
- 7. Conclusion
What are the Common Materials Used in Toothbrush Manufacturing?
The choice of materials in toothbrush manufacturing is crucial, balancing durability, safety, and functionality. Toothbrushes consist of two main components—the handle and the bristles—each requiring distinct properties.
Toothbrush handles are commonly made from polypropylene (PP) due to its durability, chemical resistance, and FDA approval for oral care products, while nylon is the preferred material for bristles because of its flexibility and resistance to bacterial growth.
Handles: Polypropylene (PP)
Polypropylene is a thermoplastic widely used for toothbrush handles. Its strength, flexibility, and safety make it ideal for injection molding, ensuring handles can withstand daily use while remaining comfortable to hold.
Bristles: Nylon
Nylon is chosen for bristles due to its excellent flexibility, durability, and ability to resist bacteria. These properties ensure effective cleaning without damaging teeth or gums.
Component | Material | Properties |
---|---|---|
Handle | Polypropylene (PP)2 | Durable, chemical-resistant, FDA-approved |
Bristles | Nylon3 | Flexible, durable, bacteria-resistant |
These materials are carefully selected to meet the stringent requirements of oral care products, ensuring both performance and safety.
What are the Steps in the Injection Molding Process for Toothbrushes?
The production of toothbrush handles via injection molding is a precise, multi-step process that transforms plastic pellets4 into finished products ready for bristle attachment5.
The injection molding process6 for toothbrushes involves designing the mold, melting plastic, injecting it into the mold, cooling, ejecting the handle, and attaching bristles, ensuring high-quality, consistent output.
1. Design and Mold Making
The process starts with designing the toothbrush handle, factoring in ergonomics, aesthetics, and bristle placement. Molds, typically made from steel or aluminum, are precision-crafted to replicate these details accurately.
2. Plastic Preparation
Plastic pellets, usually polypropylene, are fed into the injection molding machine. They are heated to a molten state (around 200-250°C for PP), preparing them for injection.
3. Injection
The molten plastic is injected into the mold under high pressure (1000-1500 bar), filling the cavity and capturing every design detail.
4. Cooling
The mold is cooled, often with water at 10-20°C, solidifying the plastic in 10-30 seconds. This step ensures the handle retains its shape.
5. Ejection
Once solidified, the mold opens, and ejector pins release the handle from the mold, completing the molding phase.
6. Bristle Attachment
Nylon bristles are attached to the handle, typically by stapling them into pre-molded holes, securing them for use.
Each step is meticulously controlled—temperature, pressure, and timing—to produce handles that meet quality standards.
The injection molding process for toothbrushes is fully automated.True
Modern injection molding machines are highly automated, ensuring consistent production with minimal human intervention.
Bristles are always attached using metal staples.False
While stapling is common, alternatives like ultrasonic welding or injection-molded bristles are also used depending on design needs.
How are Bristles Attached to Toothbrush Handles?
Bristle attachment is a vital step that determines a toothbrush’s cleaning efficacy and durability. This process ensures the bristles are securely fixed to the handle.
The most common method for attaching bristles is stapling7, where nylon bristles are folded, inserted into pre-molded holes, and secured with metal staples, ensuring a firm hold for daily use.
Alternative methods include:
-
Ultrasonic Welding8: Bristles are fused to the handle using high-frequency vibrations, offering a strong, staple-free bond.
-
Injection-Molded Bristles9: In some designs, bristles are molded directly onto the handle, though this is less common due to flexibility challenges.
The attachment method is chosen based on cost, bristle density, and design specifications, ensuring the toothbrush performs reliably.
Why is Injection Molding Preferred for Toothbrush Manufacturing?
Injection molding stands out as the preferred method for toothbrush handle production due to its numerous advantages over other techniques.
Injection molding is favored for its ability to mass-produce complex, ergonomic toothbrush designs with high precision and cost-efficiency, making it ideal for the oral care industry.
Compared to alternatives like extrusion or 3D printing, injection molding excels in:
-
Design Complexity10: It creates intricate features like textured grips and precise bristle holes.
-
Production Speed: High output rates suit large-scale manufacturing.
-
Cost-Effectiveness11: Low per-unit costs for high-volume runs.
Manufacturing Method | Production Speed | Cost Efficiency | Design Complexity |
---|---|---|---|
Injection Molding | High | High for large runs | High |
Extrusion | Moderate | Lower for simple designs | Low |
3D Printing | Low | High for prototypes | High |
This table highlights why injection molding is the industry standard for toothbrush handles, balancing speed, cost, and design capabilities.
Injection molding is more expensive than other methods for small production runs.True
The high initial cost of mold creation makes injection molding less economical for small batches compared to 3D printing.
Injection molding produces toothbrushes with superior durability.True
The use of durable thermoplastics like polypropylene ensures resistance to wear and chemical degradation.
What are the Applications of Injection Molding in Toothbrush Manufacturing?
Injection molding’s versatility extends beyond standard toothbrushes, supporting a range of oral care products.
Injection molding is used to produce manual, electric, and specialty toothbrushes, leveraging its ability to create complex shapes and integrate multiple components efficiently.
-

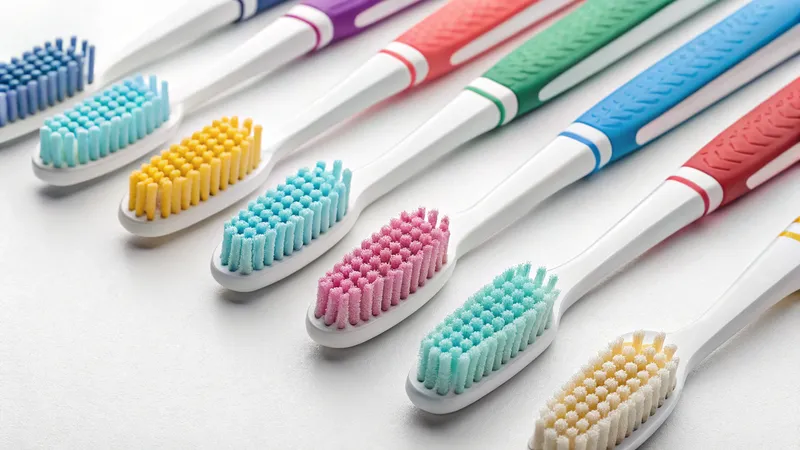

Manual Toothbrushes: The most widespread use, producing ergonomic handles with bristle holes.
-

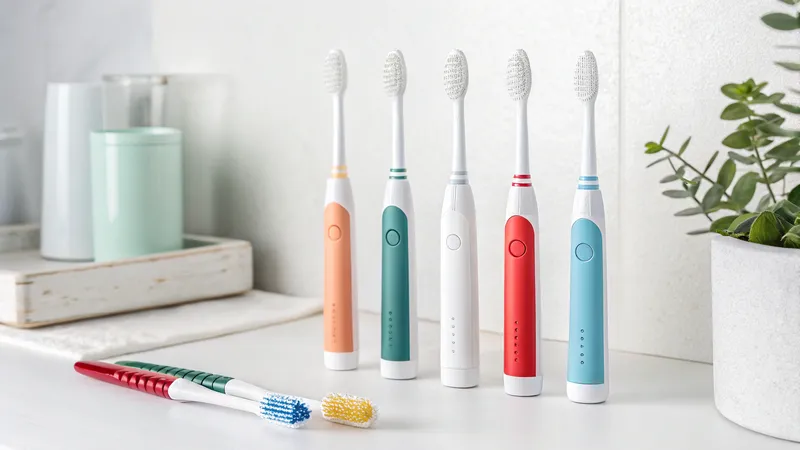

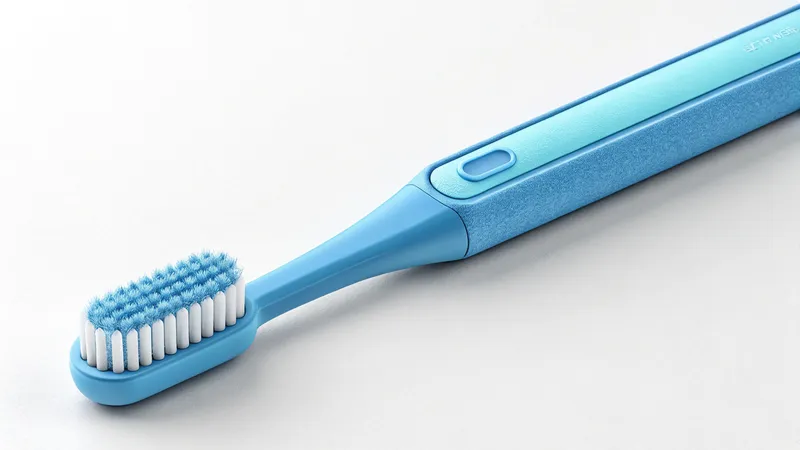

Electric Toothbrushes: Crafting casings and internal parts to house motors and batteries.
-
Specialty Toothbrushes: Including interdental or children’s brushes with unique designs.
This adaptability allows manufacturers to innovate and cater to diverse consumer needs.
What are the Differences Between Injection Molding and Other Methods for Toothbrushes?
While injection molding dominates, other methods like extrusion12 and 3D printing serve niche purposes. Here’s how they compare:
Injection Molding vs. Extrusion
-
Injection Molding: Excels in complex, detailed designs for high-volume production.
-
Extrusion: Suits simpler, continuous shapes but lacks the intricacy of injection molding.
Injection Molding vs. 3D Printing
-
Injection Molding: Optimized for mass production with low per-unit costs.
-
3D Printing: Ideal for prototypes or small runs, offering design flexibility but slower speeds.
Injection molding’s edge lies in its ability to deliver detailed, cost-effective production at scale.
Conclusion
Toothbrush manufacturing using injection molding machines is a blend of precision engineering and material science, producing a vital tool for oral hygiene. From polypropylene handles to nylon bristles, each element is crafted with care through a detailed process of molding and assembly. Injection molding’s ability to create ergonomic, durable designs at scale makes it indispensable. Looking ahead, innovations like biodegradable materials and advanced bristle technologies promise to enhance sustainability and performance, keeping toothbrushes at the forefront of oral care.
-
