Balancing Quality and Cost in Injection Molding: A Comprehensive Guide

Injection molding is a cornerstone of modern manufacturing, enabling the mass production of high-quality plastic parts with remarkable precision and efficiency. From automotive components to medical devices, this process is integral to industries that demand both consistency and cost-effectiveness. However, achieving the delicate balance between maintaining top-tier quality and managing production costs is a challenge that manufacturers must navigate carefully. This article explores how to strike that balance in injection molding, offering insights into material selection¹, design optimization, process control, and more.

Injection molding involves injecting molten plastic into a mold to create precise, consistent parts for industries like automotive and healthcare, where balancing quality and cost is critical for competitiveness.

What is Injection Molding and Why is Balancing Quality and Cost Important?

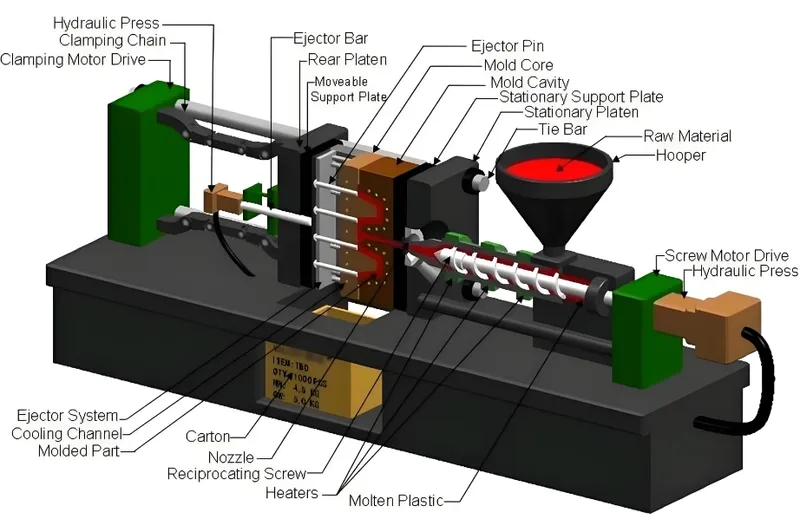

Injection molding is a manufacturing process where molten plastic is injected into a mold cavity under high pressure, then cooled to form solid parts with exceptional precision and repeatability. It’s widely adopted in industries such as automotive (e.g., dashboards), consumer goods (e.g., phone cases), and healthcare (e.g., syringes) due to its ability to produce complex geometries at scale. The challenge lies in balancing quality—measured by dimensional accuracy, surface finish, and durability—with production costs, which are influenced by materials, tooling, and process efficiency.

High-quality parts often require premium materials and stringent process control²s, increasing expenses. Conversely, excessive cost-cutting can lead to defects, compromising part integrity and customer satisfaction. Striking the right balance ensures manufacturers meet industry standards, maintain profitability, and deliver reliable products.

Injection molding produces precise plastic parts for diverse applications, and balancing quality and cost prevents defects while managing expenses effectively.

What are the Key Factors in Balancing Quality and Cost in Injection Molding?

Achieving harmony between quality and cost in injection molding hinges on optimizing several interconnected factors. Each decision impacts part performance and production economics.

Key factors include material selection, part design, mold complexity, process control, and production volume, all of which must be optimized for quality and cost efficiency.

Material Selection

The choice of material sets the foundation. Cost-effective options like polypropylene (PP) suit flexible parts, while pricier polycarbonate (PC) is ideal for impact-resistant applications. Matching material properties to functional needs avoids overspending.

Part Design

Simplified designs with uniform wall thickness and minimal undercuts reduce mold complexity and defects like warping, enhancing quality while cutting costs.

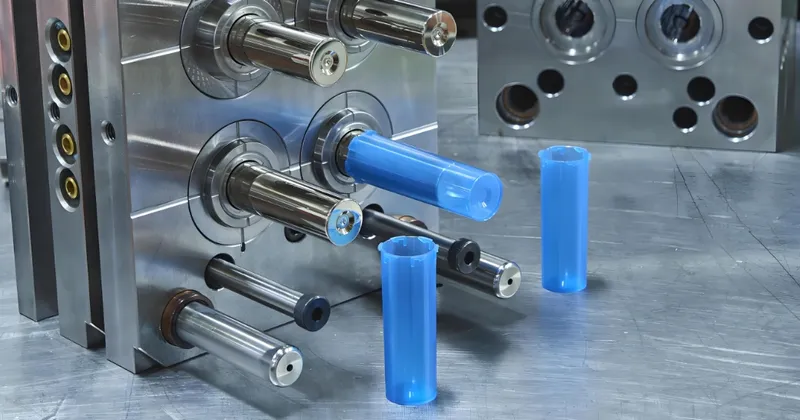

Mold Design and Complexity

Simpler molds lower initial costs, but for high-volume production, multi-cavity molds reduce per-part expenses despite higher upfront investment.

Process Control

Precise monitoring of temperature, pressure, and cooling ensures consistency, minimizing waste and rework costs while maintaining quality.

Production Volume

Injection molding³ shines in medium to high volumes, where high initial mold costs are offset by low per-part costs as production scales.

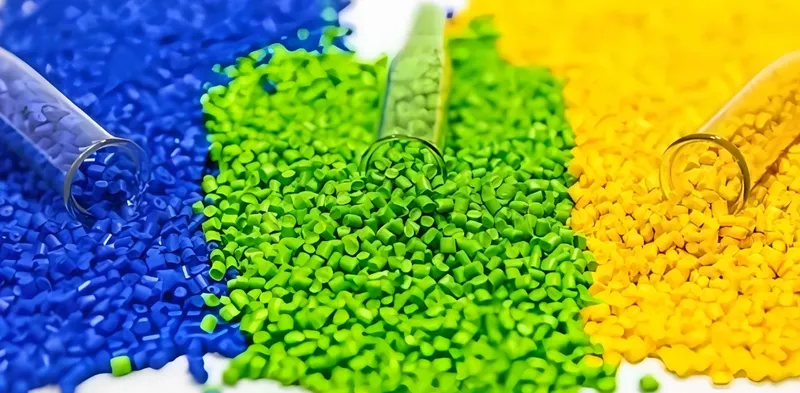

How Does Material Selection Affect Quality and Cost in Injection Molding?

Material selection is a pivotal decision that shapes both the quality and cost of injection-molded parts⁴. Each material offers unique properties and processing demands.

Materials influence quality through strength, flexibility, and durability, while cost varies with price and processing complexity.

Cost vs. Performance Trade-offs

• Low-cost materials like PP are great for non-critical, flexible parts but may lack strength for rigorous use.

• Mid-range materials like ABS balance cost and durability, fitting a wide range of applications.

• High-cost materials like PC or nylon are essential for demanding applications requiring superior performance.

Processing Considerations

Processing costs vary by material. PC demands higher temperatures (280–320°C), increasing energy use compared to PP (200–250°C), which affects cycle times and expenses. Choosing the right material aligns performance with budget constraints.

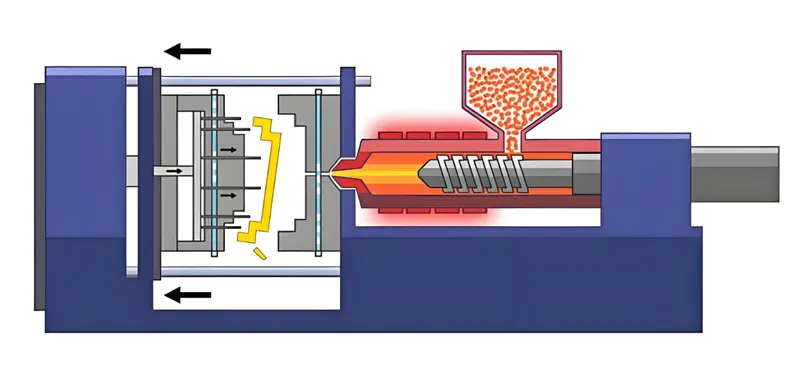

What are the Steps in the Injection Molding Process and How Do They Impact Quality and Cost?

The injection molding process comprises distinct steps, each affecting quality and cost. Mastery of these steps optimizes efficiency and output.

The process includes material preparation, melting, injection, packing, cooling, ejection, and post-processing, influencing quality and cost at every stage.

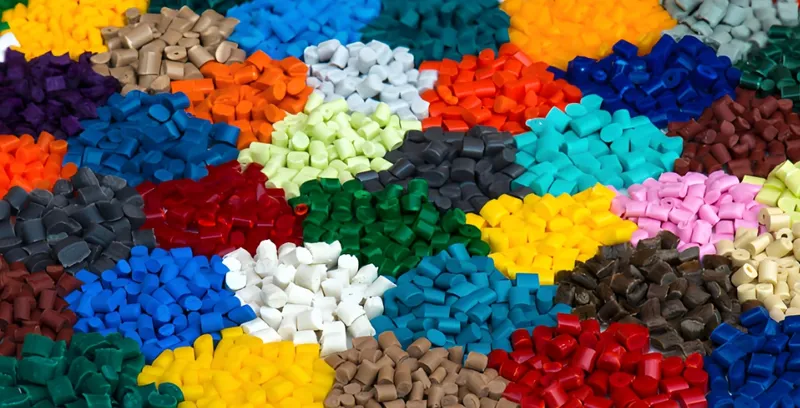

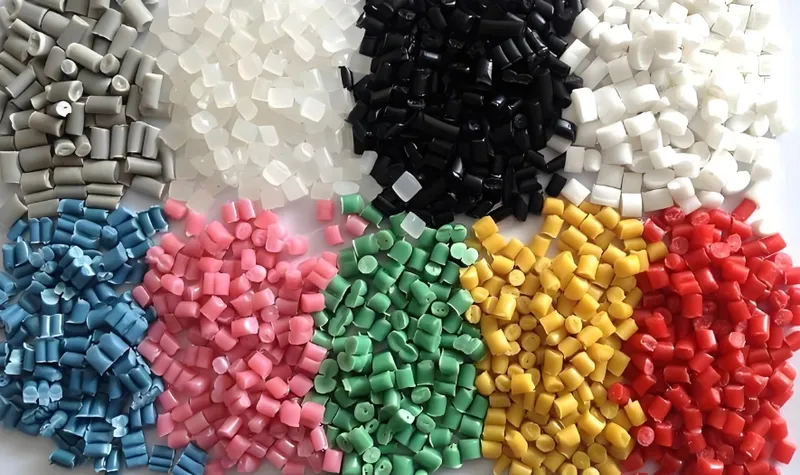

1. Material Preparation

Plastic pellets are dried to prevent moisture-related defects like voids, ensuring quality and reducing scrap.

2. Melting and Mixing

Pellets melt in a heated barrel. Precise temperature control avoids degradation, maintaining material integrity and minimizing waste.

3. Injection

Molten plastic is injected into the mold. Optimized speed and pressure prevent defects like short shots, balancing quality and efficiency.

4. Packing and Holding

Pressure compensates for shrinkage, ensuring dimensional accuracy and reducing post-processing costs⁵.

5. Cooling

The part solidifies in the mold. Efficient cooling (50% of cycle time) cuts production time and energy costs while preserving shape.

6. Ejection

Parts are removed without damage using proper force, avoiding scrap and maintaining quality.

7. Post-Processing

Trimming or finishing adds costs. Minimizing these needs through design and process control saves money.

How Can Design Optimization Help Balance Quality and Cost in Injection Molding?

Design optimization is a strategic approach to enhance quality and reduce costs by refining part and mold designs.

Optimization simplifies geometry, ensures uniform wall thickness, and adds draft angles, reducing defects and mold complexity.

Key Design Considerations

• Uniform Wall Thickness⁶: 0.5–5 mm prevents warping and sink marks.

• Draft Angles⁷: 1°–2° ease ejection, reducing wear and damage.

• Minimize Undercuts: Simplifies molds, cutting tooling costs.

• Gate Location: Optimizes filling, improving quality.

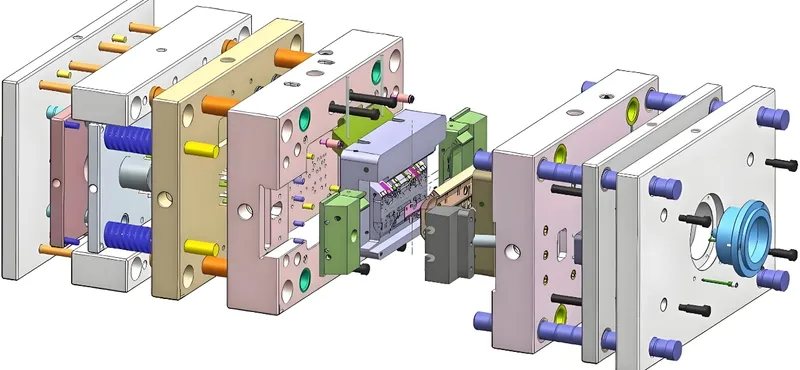

Mold Design Strategies

• Standardized Components: Lower costs with off-the-shelf parts.

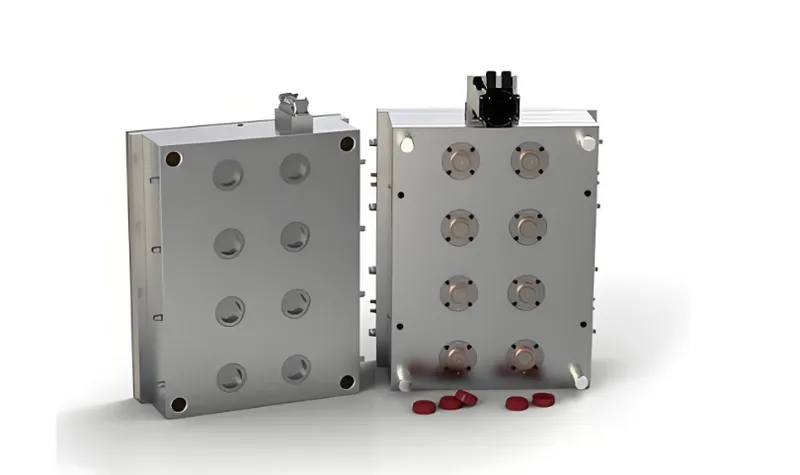

• Multi-Cavity Molds⁸: Boost output for high-volume runs, reducing per-part costs.

What are the Applications of Injection Molding and How Do They Influence Cost Considerations?

Injection molding serves diverse industries, each with unique quality and cost demands.

Applications include automotive⁹, consumer goods, medical devices¹⁰, and packaging, with cost considerations varying by quality needs and volume.

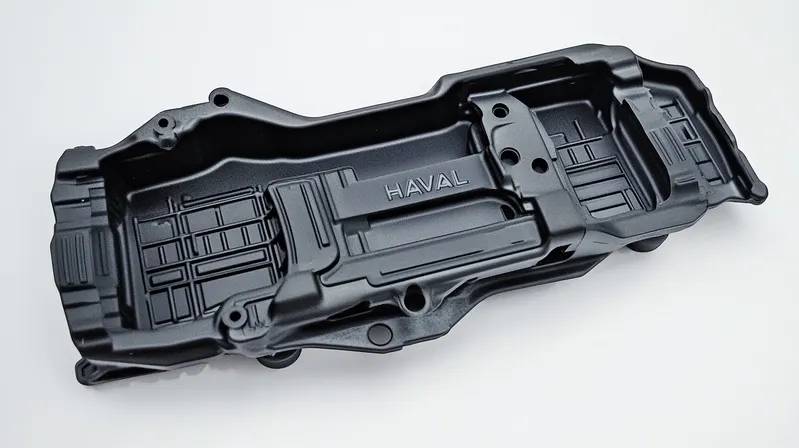

Automotive Industry

• Applications: Panels, under-hood parts.

• Cost Considerations: High volumes offset mold costs, but durability demands raise initial investments.

Consumer Goods

• Applications: Casings, toys.

• Cost Considerations: Aesthetic flexibility increases mold complexity, balanced by material choices.

Medical Devices

• Applications: Syringes, implants.

• Cost Considerations: Quality trumps cost due to strict standards, requiring premium materials.

Packaging

• Applications: Caps, containers.

• Cost Considerations: High-volume, simple designs prioritize low costs and fast cycles.

How Do You Choose Between Injection Molding and Other Manufacturing Processes?

Selecting injection molding versus alternatives like 3D printing¹¹ or extrusion depends on volume, complexity, and cost.

Injection molding suits medium to high-volume, complex plastic parts; alternatives like 3D printing fit low volumes or simpler shapes.

Comparison Table

Decision-Making Guide

1. Volume: <1000 parts? Consider 3D printing.

2. Complexity: Injection molding excels for intricate shapes.

3. Cost: High initial costs favor large runs.

What are the Best Practices for Balancing Quality and Cost in Injection Molding?

Strategic practices ensure quality and cost align effectively.

Best practices include cost-effective material selection, design simplification, robust process controls, and strong supplier ties.

1. Material Selection: Use PP for flexibility, PC for impact resistance, avoiding over-specification.

2. Design Simplification: Uniform thickness and draft angles cut costs and defects.

3. Process Optimization: Automate controls for consistency and waste reduction.

4. Supplier Relationships: Secure stable pricing and quality through partnerships.

Conclusion

Balancing quality and cost in injection molding requires a nuanced approach to material selection, design, process control, and production planning. By optimizing these elements, manufacturers can deliver high-quality parts efficiently, meeting industry demands while maintaining profitability. Explore more at Injection Molding Basics and Material Characteristics.
