Bakelite injection molding1 and other plastic injection molding are two widely used manufacturing processes, each with its unique characteristics and applications. In this blog post, we’ll explore the differences between these two processes, from their basic principles to their practical applications, to help you make informed decisions for your manufacturing needs.
Bakelite injection molding uses thermosetting plastics for heat-resistant, non-melting products, while other plastic injection molding2 uses thermoplastics3 for recyclable, flexible manufacturing.
Understanding these processes is essential for selecting the right method for your project. Let’s dive into the details, covering material properties, process workflows, applications, and more.
Bakelite injection molding is suitable for high-temperature applications.True
Bakelite's thermosetting nature provides excellent heat resistance, making it ideal for electrical insulators and automotive parts.
Thermoplastics used in injection molding cannot be recycled.False
Thermoplastics can be remelted and reshaped, allowing for recycling and reuse in manufacturing.
- 1. What is Bakelite Injection Molding and How Does it Differ from Other Plastic Injection Molding?
- 2. What are the Steps in the Bakelite Injection Molding Process?
- 3. What are the Steps in the Thermoplastic Injection Molding Process?
- 4. What are the Applications of Bakelite Injection Molding?
- 5. What are the Applications of Thermoplastic Injection Molding?
- 6. What are the Differences in Process Workflows?
- 7. What are the Design Considerations for Bakelite Injection Molding?
- 8. What are the Design Considerations for Thermoplastic Injection Molding?
- 9. How to Choose Between Bakelite and Thermoplastic Injection Molding?
- 10. What are the Related Technologies to Bakelite Injection Molding?
- 11. Conclusion
What is Bakelite Injection Molding and How Does it Differ from Other Plastic Injection Molding?
Bakelite Injection Molding
Bakelite injection molding involves the use of Bakelite, a thermosetting plastic (also known as phenolic resin), which is heated and injected into a mold to form a solid, heat-resistant product. Once cured, Bakelite cannot be remelted or reshaped, making it ideal for applications requiring high heat resistance and electrical insulation.
Other Plastic Injection Molding
In contrast, other plastic injection molding typically refers to the use of thermoplastics4, such as polyethylene (PE), polypropylene (PP), or nylon. These materials are melted, injected into a mold, and cooled to form a solid product. Unlike Bakelite, thermoplastics can be remelted and reshaped multiple times, offering greater flexibility in manufacturing.
Key Difference: The primary distinction lies in the material properties—thermosetting (Bakelite) vs. thermoplastic—impacting their behavior during molding and their suitability for different applications.
| Aspect | Bakelite Injection Molding | Other Plastic Injection Molding |
|---|---|---|
| Material Type | Thermosetting (e.g., Bakelite) | Thermoplastic (e.g., PE, PP, Nylon) |
| Heat Response | Hardens irreversibly | Can be remelted and reshaped |
| Primary Use | Heat-resistant, insulating parts | Flexible, recyclable products |
For more on thermosetting plastics, check out Plenco, and for thermoplastics, visit ScienceDirect.
Bakelite is a type of thermoplastic.False
Bakelite is a thermosetting plastic, not a thermoplastic, as it cannot be remelted after curing.
Thermoplastics offer greater design flexibility than Bakelite.True
Thermoplastics can be easily reshaped and recycled, allowing for more versatile manufacturing processes.
What are the Steps in the Bakelite Injection Molding Process?
The Bakelite injection molding process5 is tailored to its thermosetting nature, requiring precise control to ensure proper curing.
The Bakelite injection molding process includes preheating the mold, injecting the material, curing under heat and pressure6, and cooling to form a heat-resistant product.
-
Preheating the Mold: The mold is preheated (typically within ±5°F for oil or steam-heated molds) to ensure uniform curing.
-
Injecting the Material: Bakelite powder is fused and injected using a screw with a 1:1 compression ratio, lower than that for thermoplastics.
-
Curing Under Heat and Pressure: The material hardens irreversibly under controlled conditions, locking in its properties.
-
Cooling and Ejecting: The part cools and is ejected, with longer cycle times due to the curing step.
Key parameters include mold temperature7, injection pressure, and curing time.
Bakelite injection molding requires a higher screw compression ratio than thermoplastic molding.False
Bakelite uses a lower screw compression ratio of 1:1, compared to 1:3-1:4.5 for thermoplastics.
The curing step in Bakelite molding is essential for achieving heat resistance.True
Curing allows Bakelite to form a rigid, heat-resistant structure that cannot be remelted.
What are the Steps in the Thermoplastic Injection Molding Process?
Thermoplastic injection molding focuses on melting and cooling, offering faster cycles and greater automation.
The thermoplastic injection molding8 process involves melting the material, injecting it into a mold, cooling to solidify, and ejecting the part.
-
Melting the Material: Thermoplastic pellets are melted in a heated barrel using a screw with a 1:3-1:4.5 compression ratio.
-
Injecting into the Mold: Molten plastic is injected under high pressure to fill the mold.
-
Cooling to Solidify: The part cools and solidifies, with cooling time9 affecting cycle efficiency.
-
Ejecting the Part: The solidified part is ejected, often automated for high-volume production.
Key parameters include melt temperature, injection speed10, and cooling time.
Thermoplastic injection molding requires curing under heat and pressure.False
Thermoplastics do not require curing; they solidify upon cooling.
Faster cycle times are a key advantage of thermoplastic injection molding.True
The absence of a curing step allows for quicker production cycles compared to Bakelite molding.
What are the Applications of Bakelite Injection Molding?
Bakelite’s properties make it a go-to choice for specific high-performance applications.
Bakelite injection molding is used in electrical insulators, automotive components, and heat-resistant parts due to its thermosetting properties.
-

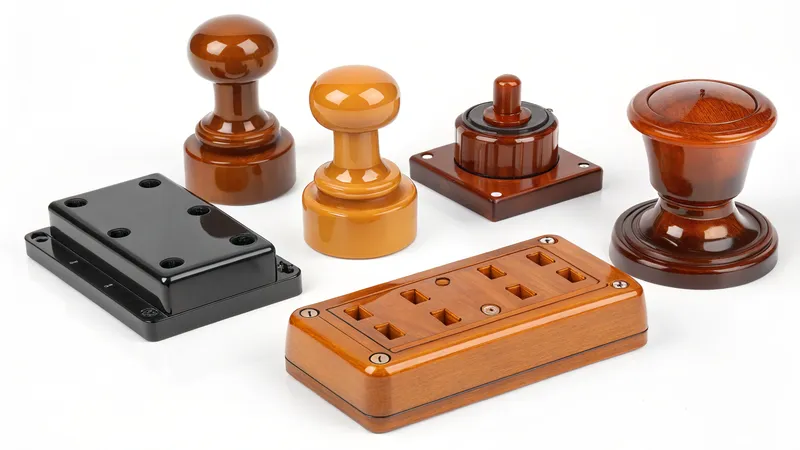

Electrical Insulators: Circuit breakers, switches, and connectors benefit from Bakelite’s insulation properties.
-
Automotive Parts: Distributor caps and brake pads leverage its heat resistance.
-
Consumer Goods: Pot handles and appliance housings use Bakelite for durability under heat.
Learn more about its industrial uses at ACO Mold.
Bakelite is commonly used in applications requiring high heat resistance.True
Its thermosetting nature provides superior heat resistance compared to many thermoplastics.
Bakelite is not suitable for electrical applications.False
Bakelite is widely used in electrical insulators due to its excellent insulating properties.
What are the Applications of Thermoplastic Injection Molding?
Thermoplastics shine in versatile, high-volume applications.
Thermoplastic injection molding is used in consumer goods, medical devices, packaging, and automotive interiors for its versatility and recyclability.
-
Consumer Goods: Bottle caps, toys, and casings are common thermoplastic products.
-
Medical Devices: Syringes and surgical tools benefit from precision and sterility.
-
Packaging: Containers and films use thermoplastics for lightweight durability.
Explore more applications at TWI Global.
Thermoplastics are not used in medical applications due to sterility concerns.False
Thermoplastics are widely used in medical devices for their ability to be sterilized and molded into precise shapes.
Thermoplastic injection molding is cost-effective for high-volume production.True
The fast cycle times and recyclability of thermoplastics reduce manufacturing costs.
What are the Differences in Process Workflows?
The workflows reflect the materials’ distinct behaviors.
Bakelite molding involves curing under heat and pressure, while thermoplastic molding focuses on melting and cooling, leading to different cycle times and equipment requirements.
| Step | Bakelite Injection Molding | Thermoplastic Injection Molding |
|---|---|---|
| Preparation | Preheating mold | Melting material |
| Injection | Low compression (1:1) | High compression (1:3-1:4.5) |
| Solidification | Curing under heat/pressure | Cooling to solidify |
| Cycle Time | Longer due to curing | Shorter due to cooling |
Bakelite molding requires a curing step, while thermoplastic molding does not.True
Curing is essential for thermosets like Bakelite to achieve their final properties.
Thermoplastic molding is less automated than Bakelite molding.False
Thermoplastic molding benefits from high automation, reducing manual intervention.
What are the Design Considerations for Bakelite Injection Molding?
Designing for Bakelite requires precision to avoid defects.
Design considerations for Bakelite injection molding include mold temperature control, venting, and material flow to prevent defects and ensure proper curing.
-
Mold Temperature Control: Uniform temperature (±5°F) ensures consistent curing.
-
Venting: 0.003"-0.0035" depth vents prevent gas buildup and burn marks.
-
Material Flow: Balanced fill from the sprue reduces defects.
See detailed guidelines at Plenco.
Proper venting is critical in Bakelite injection molding to prevent defects.True
Venting allows gases to escape, reducing the risk of burn marks and ensuring part quality.
Mold temperature control is less important in Bakelite molding than in thermoplastic molding.False
Precise temperature control is essential in Bakelite molding to ensure uniform curing.
What are the Design Considerations for Thermoplastic Injection Molding?
Thermoplastic design focuses on cooling and ejection.
Design considerations for thermoplastic injection molding include cooling channel design, draft angles, and material shrinkage to ensure part quality and efficiency.
-
Cooling Channel Design: Efficient channels reduce cycle times and warping.
-
Draft Angles: 1-2 degrees aid in easy ejection.
-
Material Shrinkage: Must be factored into dimensions for accuracy.
More details are available at ScienceDirect.
Draft angles are unnecessary in thermoplastic injection molding.False
Draft angles are essential for easy part ejection and to prevent damage to the mold.
Efficient cooling channel design can significantly reduce cycle times in thermoplastic molding.True
Proper cooling ensures faster solidification and shorter production cycles.
How to Choose Between Bakelite and Thermoplastic Injection Molding?
Choosing the right process depends on your project’s needs.
Choose Bakelite injection molding for high heat resistance and electrical insulation; opt for thermoplastic molding for flexibility, recyclability, and cost-effectiveness in high-volume production.
Decision-Making Guide
-
Heat Resistance Needs: Bakelite for >200°C environments.
-
Production Volume: Thermoplastics for high-volume efficiency.
-
Recyclability: Thermoplastics if sustainability matters.
-
Cost Constraints: Thermoplastics often cheaper for materials and processing.
| Factor | Bakelite Preference | Thermoplastic Preference |
|---|---|---|
| Heat Resistance | High (e.g., electrical parts) | Moderate (e.g., packaging) |
| Volume | Low to medium | High |
| Cost | Higher material cost | Lower material/processing cost |
Bakelite is the better choice for applications requiring high heat resistance.True
Its thermosetting properties provide superior heat resistance compared to most thermoplastics.
Thermoplastics are always more cost-effective than Bakelite.False
While thermoplastics can be cheaper for high-volume production, Bakelite may be more cost-effective for specific high-performance applications.
Related technologies expand manufacturing options.
Related technologies to Bakelite injection molding include compression molding for thermosets and additive manufacturing for prototyping and custom parts.
-
Compression Molding: Used for thermosets like Bakelite, ideal for larger parts with lower volumes.
-
Additive Manufacturing: 3D printing for prototyping, complementing injection molding.
Compression molding is only used for thermoplastics.False
Compression molding is commonly used for thermosetting plastics like Bakelite.
Additive manufacturing can be used for prototyping parts before injection molding.True
3D printing allows for rapid prototyping, helping to refine designs before committing to molds.
Conclusion
Bakelite injection molding excels in heat-resistant, insulating applications, while thermoplastic injection molding offers versatility and cost-effectiveness for high-volume production. By understanding their differences in materials, processes, and design considerations, you can choose the best method for your needs. For further insights, explore TWI Global and ScienceDirect.
-
