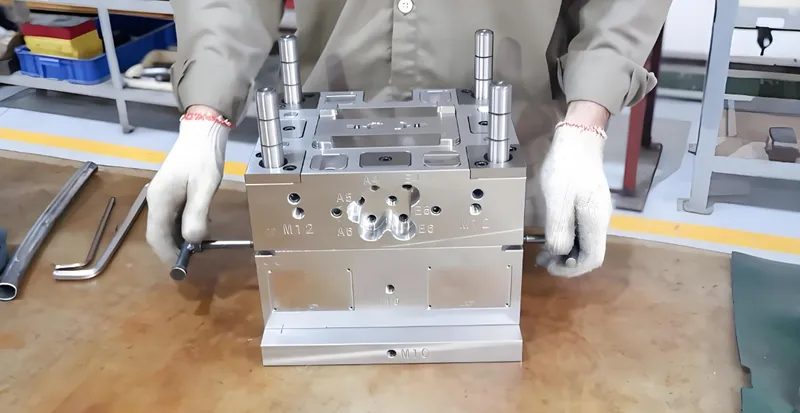

Injection molding is a vital manufacturing process used to create precise components for industries like automotive, electronics, and consumer goods. However, the molds at the heart of this process endure significant stress, leading to wear and tear over time. Recognizing the signs of this deterioration is essential to maintain part quality, minimize downtime, and optimize production efficiency. This comprehensive guide explores how to identify wear and tear in injection molds1, delving into common indicators, causes, detection methods, and preventive strategies.
Wear and tear in injection molds manifests as cracks, chips, dimensional inaccuracies2, and increased cycle time3s, detectable through regular inspections and performance monitoring.
By understanding these signs and their implications, manufacturers can take proactive steps to extend mold life and ensure consistent output. Let’s dive into the details of identifying and managing mold wear effectively.
Regular mold inspections can prevent unexpected downtime.True
Early detection allows maintenance to be scheduled during planned breaks, avoiding sudden production stops.
All molds wear out at the same rate regardless of material.False
Material choice, like steel versus aluminum, significantly impacts durability and wear rates.
- 1. What Are the Common Signs of Wear and Tear in Injection Molds?
- 2. What Causes Wear and Tear in Injection Molds?
- 3. How Can You Detect Wear and Tear in Injection Molds?
- 4. What Are the Best Practices for Maintaining Injection Molds?
- 5. How Do Different Mold Materials Affect Wear and Tear?
- 6. What Are the Steps to Repair Worn Injection Molds?
- 7. How Can You Prevent Wear and Tear in Injection Molds?
- 8. Conclusion
What Are the Common Signs of Wear and Tear in Injection Molds?
Spotting wear early can save costs and maintain production quality. Here’s what to look for:
Common signs include cracks, chips, dimensional inaccuracies, increased cycle times, flash formation, surface imperfections, and ejector pin issues, detectable through visual checks and performance tracking.
| Sign | Description |
|---|---|
| Cracks or Chips | Visible surface damage, often needing repair or smoothing. |
| Dimensional Inaccuracies4 | Parts deviating from size or thickness specs due to mold wear. |
| Increased Cycle Time | Longer production times signaling cooling or mechanical issues. |
| Flash Formation | Excess material escaping at parting lines, indicating wear or misalignment. |
| Surface Imperfections5 | Marks or uneven textures on parts from worn cavities. |
| Ejector Pin Issues | Sticking parts or marks from worn pins, affecting ejection. |
Cracks and Chips
Cracks and chips appear due to repeated stress or thermal fatigue6. Regular visual inspections can catch these early, preventing escalation.
Dimensional Inaccuracies
Worn cavities or cores can lead to parts that don’t meet tolerances. Routine measurement of part dimensions helps identify this issue.
Increased Cycle Time
A rise in cycle time may point to cooling system wear or mechanical friction. Monitoring cycle times7 provides an early alert.
Flash Formation
Flash—excess material at parting lines—suggests worn or misaligned components. This increases material waste and post-processing needs.
Surface Imperfections
Worn mold surfaces can imprint defects on parts, affecting quality. Inspecting part surfaces regularly flags this problem.
Ejector Pin Issues
Worn pins can cause parts to stick or show ejection marks, raising scrap rates. Checking pin condition is key.
Visual inspections alone can detect all mold wear.False
Surface issues are visible, but cycle time increases or internal wear need performance data.
Early wear detection can significantly extend mold life.True
Timely repairs prevent minor wear from becoming major damage.
What Causes Wear and Tear in Injection Molds?
Knowing the culprits behind mold wear8 helps in prevention and management.
Wear results from repeated use, high temperatures, pressures, abrasive materials, and poor maintenance, causing erosion, corrosion, mechanical damage, and thermal fatigue.
Repeated Use
Each cycle stresses the mold, wearing it down incrementally. High-volume runs amplify this effect.
High Temperatures and Pressures
Extreme conditions during molding cause thermal fatigue and stress, leading to cracks or deformation.
Abrasive Materials
Plastics with fillers like glass fibers erode mold surfaces faster. Material choice impacts wear rates.
Inadequate Maintenance
Skipping cleaning or lubrication lets small issues grow, shortening mold life.
All plastics wear molds equally.False
Abrasive plastics like glass-filled resins accelerate wear compared to standard polymers.
Proper maintenance reduces wear significantly.True
Routine care preserves mold condition and performance.
How Can You Detect Wear and Tear in Injection Molds?
Early detection keeps production on track and quality high.
Detect wear through visual inspections9, performance monitoring, and maintenance checks10, focusing on part quality, cycle times, and mold condition.
Visual Inspections
Check for cracks, chips, or surface wear with the naked eye or magnification tools, especially in critical areas.
Performance Monitoring
Track cycle times, scrap rates, and part dimensions. Changes signal potential wear issues.
Maintenance Checks
Schedule regular cleaning, lubrication, and functional tests of components like ejector pins.
Automated systems can predict mold wear accurately.True
Sensors and analytics spot subtle performance shifts, forecasting wear.
Visual checks suffice for mold health.False
They miss internal issues; performance and maintenance data are essential too.
What Are the Best Practices for Maintaining Injection Molds?
Proactive care extends mold life11 and ensures consistent results.
Best practices include regular cleaning, lubrication12, inspections, and choosing suitable materials and coatings based on application needs.
Regular Cleaning
Clear residues to prevent corrosion or damage, using mold-safe cleaning agents.
Lubrication
Lubricate moving parts like pins and slides with compatible products to reduce friction.
Inspections
Use checklists for thorough, routine checks, documenting trends for analysis.
Material and Coating Selection
Match mold materials (e.g., steel for high volume) and coatings (e.g., chrome for abrasion resistance) to production demands.
Wrong lubricants can harm molds.True
Incompatible lubricants may corrode materials or contaminate plastics.
All molds need the same maintenance schedule.False
Schedules vary by production volume, material abrasiveness, and mold complexity.

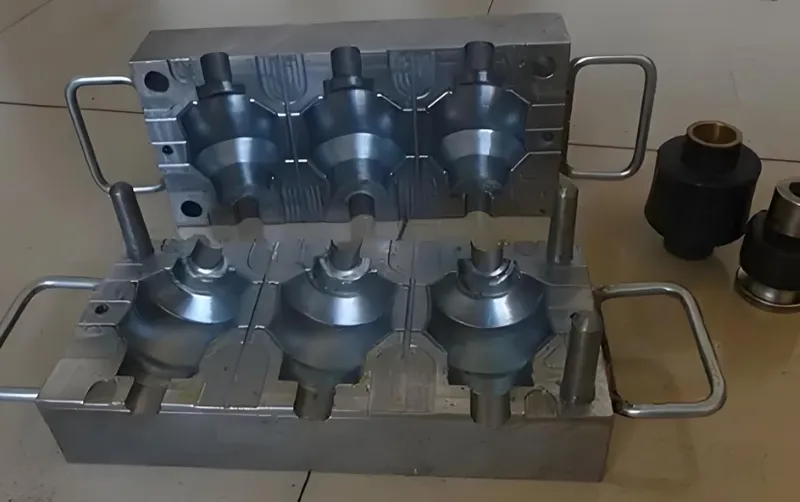

How Do Different Mold Materials Affect Wear and Tear?
Material choice shapes mold longevity and wear resistance.
Aluminum, steel, and coated molds vary in durability, cost, and suitability for production volumes and materials.
| Material Type | Durability | Cost | Suitable For |
|---|---|---|---|
| Aluminum | Low to Medium | Low | Prototypes, low-volume runs |
| Steel (e.g., H13) | High | High | High-volume production |
| Coated Molds | Variable | Medium to High | Abrasive or corrosive plastics |
Aluminum Molds
Affordable and great for prototypes, aluminum wears faster, especially with abrasive plastics.
Steel Molds
Durable and ideal for high-volume runs, steel (e.g., H13) costs more but lasts longer.
Coated Molds
Coatings like titanium nitride boost resistance to wear, enhancing life for both aluminum and steel molds.
Steel molds are always best.False
They’re durable but costly; aluminum works for low-volume needs.
Coatings extend mold life in abrasive uses.True
They reduce wear from harsh plastics, prolonging usability.
What Are the Steps to Repair Worn Injection Molds?
Timely repairs can restore molds and extend their service life.
Repair involves assessing damage, cleaning, welding or re-machining, and testing, requiring precision and expertise.
Damage Assessment
Inspect and disassemble to gauge wear extent and type.
Cleaning
Remove contaminants to prep for repairs, ensuring a clean work surface.
Welding or Re-machining
Weld cracks and re-machine to restore dimensions accurately.
Testing
Run trials post-repair to verify part quality and mold function.
Repairs fully restore mold performance.True
Done right, repairs can return molds to original condition, though repeated fixes may lose efficacy.
All wear is repairable.False
Severe damage may necessitate replacement over repair.
How Can You Prevent Wear and Tear in Injection Molds?
Prevention cuts costs and downtime more effectively than repairs.
Prevent wear with suitable materials, coatings, uniform cooling, and proper alignment and lubrication.
Material Selection
Pick durable materials like steel for high-volume or abrasive jobs.
Coatings
Use hard coatings on wear-prone areas to boost resistance.
Uniform Cooling
Design cooling systems for even temperature control, reducing stress.
Proper Alignment and Lubrication
Keep parts aligned and lubricated to minimize friction and wear.
Prevention eliminates all wear.False
Some wear is inevitable, but prevention reduces its impact.
High-quality molds lower long-term costs.True
Durable molds need fewer repairs, cutting expenses over time.
Conclusion
Identifying wear and tear in injection molds is critical for maintaining efficiency and quality in manufacturing. By recognizing signs like cracks, dimensional shifts, and cycle time increases, and understanding their causes—such as abrasive materials or poor maintenance—you can act swiftly. Regular inspections, performance tracking, and proactive maintenance, paired with smart material choices, keep molds in top shape.
-
