How Can Venting Enhance the Efficiency of Injection Mold Designs?

In the fast-paced world of injection molding¹, precision and efficiency are paramount. One often-overlooked but critical aspect of mold design is venting. Proper venting ensures that air and gases escape smoothly during the injection process, preventing defects like burn marks, short shots, and poor surface finishes. This not only enhances part quality but also optimizes production speed² and reduces costs. In this blog post, we’ll explore how venting improves the efficiency of injection mold designs, covering its principles, applications, technical details, and best practices.

Venting³ in injection molding allows air and gases to escape from the mold cavity during plastic injection, preventing defects and improving part quality, production speed, and mold longevity.

Understanding venting is crucial for industries like automotive, medical devices, and electronics, where precision and efficiency are non-negotiable. Let’s dive deeper into how venting works and why it’s essential for your injection molding projects.

What is Venting in Injection Molding?

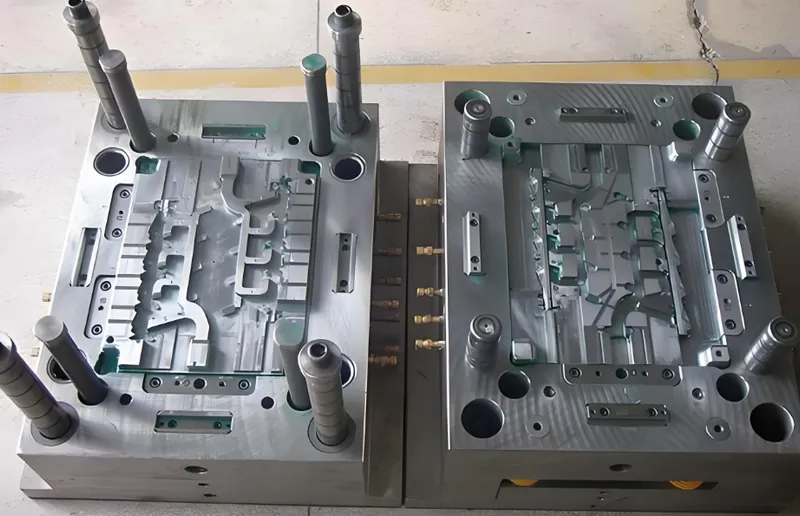

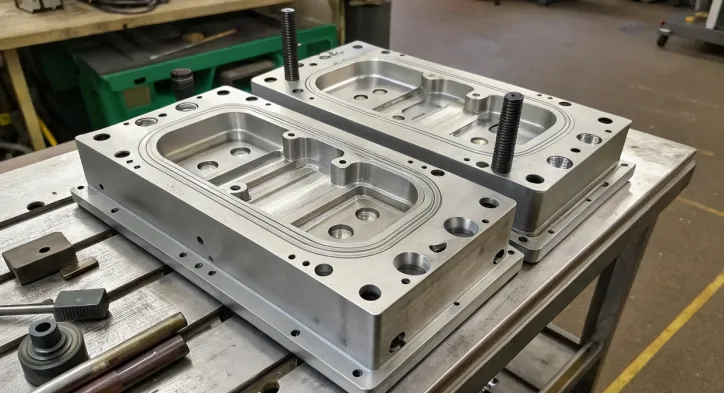

Venting is a critical process in injection molding that involves creating small channels or gaps in the mold to allow trapped air and gases to escape as molten plastic fills the cavity. Without proper venting, air can become trapped, leading to defects such as burn marks, incomplete filling (short shots), or poor surface finishes. Venting ensures that the plastic flows smoothly and fills the mold completely, resulting in high-quality parts.

Venting in injection molding is the process of allowing air and gases to escape from the mold cavity through small channels, preventing defects like burn marks and short shots.

Conventional Venting

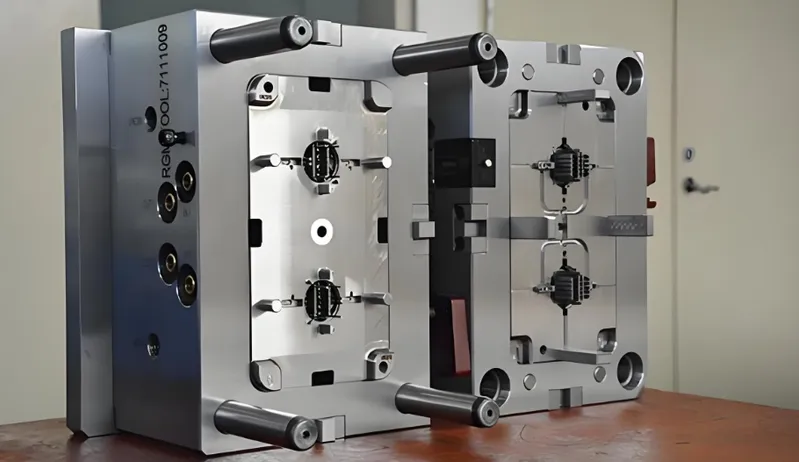

Conventional venting uses physical channels, typically along the parting line or around ejector pins, to allow air to escape. These vents are carefully sized to let air out while preventing plastic from leaking (flash). For example, in automotive part production, parting line vents are often sufficient for simpler geometries.

Vacuum Venting

Vacuum venting involves actively removing air from the mold cavity using a vacuum system. This method is particularly useful for high-precision parts, such as medical devices, where even minor defects are unacceptable. Vacuum venting ensures complete air removal, leading to superior part quality.

Porous Materials

Some molds incorporate porous materials, like sintered metals, that allow gases to pass through but block molten plastic. This method is ideal for complex molds where traditional venting might be challenging. It’s commonly used in electronics manufacturing for intricate components.

How Does Venting Improve Injection Molding Efficiency?

Venting enhances injection molding efficiency by improving part quality, reducing cycle times, and extending mold life⁴. Let’s explore these benefits in detail.

Venting improves injection molding efficiency⁵ by reducing defects⁶, enabling faster injection speeds, and minimizing mold maintenance, leading to higher productivity and lower costs.

Reducing Defects

Trapped air can cause a range of defects, including:

• Burn marks: Caused by compressed air heating up and scorching the plastic.

• Short shots: Incomplete filling of the mold due to air pockets.

• Poor surface finish: Air traps can lead to uneven surfaces or visible defects.

Proper venting eliminates these issues, ensuring consistent, high-quality parts. For example, in the production of medical syringes, even minor defects can compromise sterility, making venting critical.

Enabling Faster Injection Speeds

Without adequate venting, injection speeds must be slowed to allow air to escape naturally, increasing cycle times. Proper venting allows for faster injection rates, as air is quickly evacuated, reducing overall production time. This is particularly beneficial in high-volume industries like packaging or consumer goods.

Extending Mold Life

Trapped gases can cause corrosion or wear on mold surfaces, especially when molding materials that release aggressive gases, such as PVC. By allowing these gases to escape, venting reduces mold damage and extends its lifespan, lowering maintenance costs.

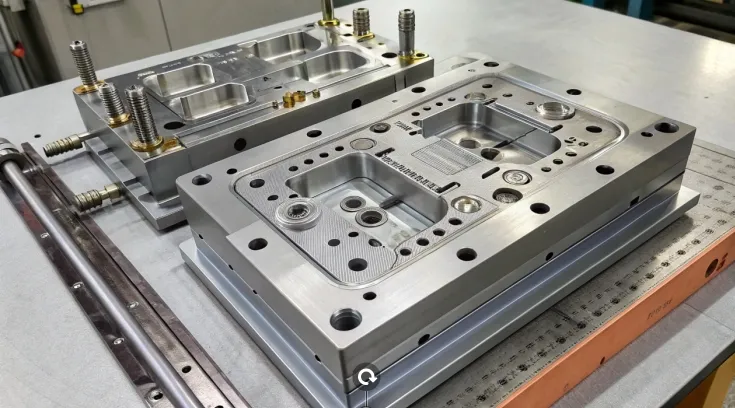

What are the Key Steps in Designing Vents for Injection Molds?

Designing effective vents requires careful planning and consideration of part geometry, material, and production conditions. Below are the key steps in the venting design process.

The key steps in designing vents for injection molds include identifying air trap locations⁷, selecting vent types, determining vent size, and ensuring proper maintenance⁸.

Identifying Air Trap Locations

Air traps typically occur in areas where plastic flow converges or in deep ribs and bosses. Designers can use flow simulation software, such as Moldflow, to predict these locations. For example, in a mold for an automotive dashboard, simulations can reveal where air is likely to be trapped, guiding vent placement.

Selecting Vent Types

Based on the part’s complexity, designers choose the appropriate venting method:

• Parting line vents: For simple geometries.

• Ejector pin vents: For parts with deep cavities.

• Vent pins or porous materials: For intricate designs or high-precision parts.

Determining Vent Size

Vent size is critical—too small, and air won’t escape quickly enough; too large, and plastic may leak out (flash). Vent depth typically ranges from 0.0005 to 0.002 inches, depending on the material. For instance, nylon requires smaller vents due to its low viscosity, while polycarbonate needs larger vents.

Ensuring Proper Maintenance

Vents can become clogged with plastic residue or debris over time, reducing their effectiveness. Regular cleaning and inspection are essential to maintain optimal venting performance. For example, in high-volume production, vents should be checked and cleaned at regular intervals to prevent defects.

What are the Three Key Factors in Venting Design?

Effective venting design hinges on three critical factors: vent placement⁹, vent size, and material compatibility. These factors ensure that air is efficiently removed without compromising part quality.

The three key factors in venting design are vent placement, vent size, and material compatibility¹⁰, which together ensure efficient air removal and defect-free parts.

Vent Placement

Vents must be strategically placed where air is most likely to be trapped, such as at the end of flow paths or in deep cavities. For example, in a mold for a smartphone case, vents are often placed around the edges and in areas with thin walls to prevent air pockets.

Vent Size

The size of the vent, particularly its depth, is crucial. A vent that’s too shallow won’t allow enough air to escape, while one that’s too deep can cause flash. The optimal vent depth varies by material:

• Low-viscosity materials (e.g., nylon): 0.0005 – 0.001 inches.

• High-viscosity materials (e.g., polycarbonate): 0.0015 – 0.002 inches.

Material Compatibility

Different plastics behave differently during molding. Materials like ABS or PVC release more gases, requiring additional venting capacity. Conversely, materials with low gas release, like polyethylene, may need less venting. Designers must account for these properties when planning vent design.

What are the Applications of Venting in Injection Molding?

Venting is essential across various industries, particularly where precision and quality are critical. Below are some key applications of venting in injection molding.

Venting is crucial in automotive, medical, electronics, and packaging industries for producing defect-free¹¹, high-quality parts¹² efficiently.

Automotive Industry

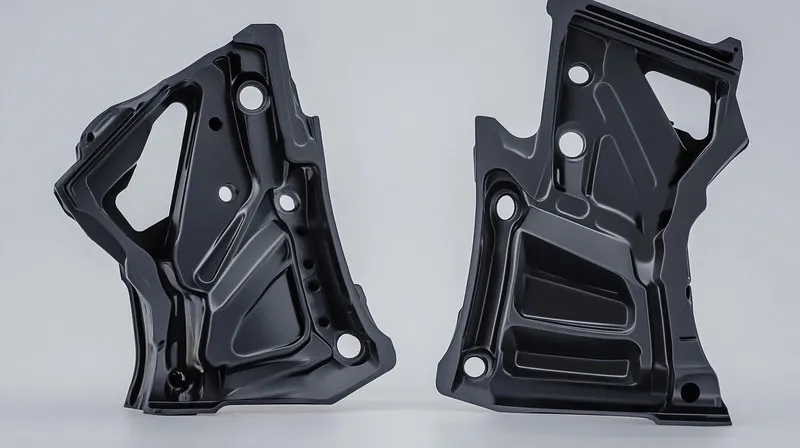

In automotive manufacturing, venting ensures the production of complex parts like dashboards, bumpers, and interior components without defects. For example, proper venting prevents burn marks on large, thin-walled parts, maintaining both aesthetics and structural integrity.

Medical Devices

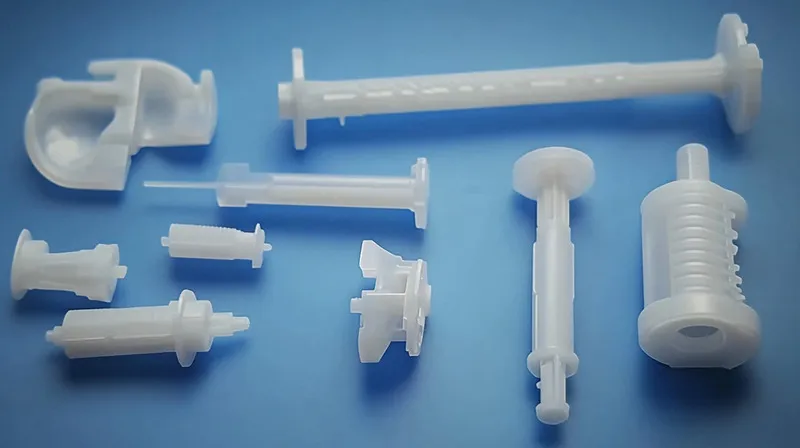

Medical devices, such as syringes, implants, and diagnostic equipment, require flawless molding to meet strict regulatory standards. Venting eliminates air traps that could compromise the functionality or sterility of these critical components.

Electronics

In electronics, venting is vital for producing intricate parts like connectors, housings, and circuit board components. These parts often have tight tolerances and complex geometries, making effective venting essential to avoid defects.

Packaging

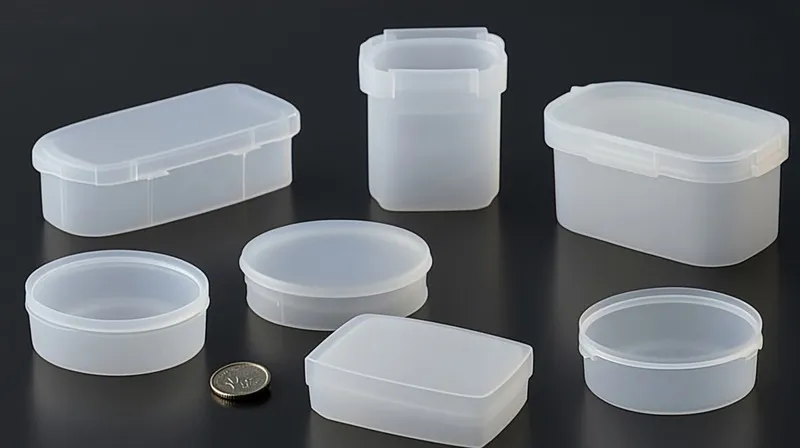

For packaging applications, especially in high-speed production lines, venting allows for faster injection speeds without sacrificing quality. This is particularly important for thin-walled containers, where air traps can lead to incomplete filling.

What are the Differences Between Conventional Venting and Vacuum Venting?

While both conventional and vacuum venting aim to remove air from the mold cavity, they differ in their approach and applications. Understanding these differences is key to selecting the right method for your project.

Conventional venting¹³ uses passive channels to allow air to escape, while vacuum venting actively removes air using a vacuum system, offering greater control for complex or high-precision parts¹⁴.

Conventional Venting

Conventional venting relies on passive channels, such as parting line vents or ejector pin clearances, to let air escape naturally as plastic fills the mold. This method is cost-effective and sufficient for most standard applications, such as automotive or consumer goods.

Vacuum Venting

Vacuum venting uses an external vacuum system to actively suck air out of the mold cavity before and during injection. This method provides superior air removal, making it ideal for high-precision parts or molds with deep cavities, such as those used in medical or aerospace industries.

When to Use Each Method

• Conventional Venting: Best for standard parts with simple geometries or when cost is a primary concern.

• Vacuum Venting: Ideal for complex, high-precision parts where defect prevention is critical, such as in medical or electronics manufacturing.

Conclusion

Venting is a critical yet often overlooked aspect of injection mold design that directly impacts part quality, production efficiency, and mold longevity. By allowing air and gases to escape during the injection process, venting prevents defects, enables faster production speeds, and reduces maintenance costs. Whether you’re in automotive, medical, electronics, or packaging, understanding and implementing proper venting strategies is essential for optimizing your injection molding operations.

Proper venting enhances injection molding efficiency by reducing defects, speeding up production, and extending mold life, making it indispensable for high-quality, cost-effective manufacturing.
