What Are the Challenges of Injection Molding Large-Scale Parts?

Large industrial injection molding machine in a manufacturing facility

Have you ever wondered why injection molding large-scale parts feels like solving a giant puzzle?

Injection molding large-scale parts faces challenges like handling large material volumes, maintaining consistent quality, addressing long cooling times, and ensuring precise mold design, affecting production efficiency and costs.

I remember the first time I faced these hurdles in my own workโ€”it felt like trying to juggle flaming torches while balancing on a tightrope. The complexity can be overwhelming, but breaking down each challenge makes it manageable. In this blog, Iโ€™ll guide you through each aspect, sharing expert tips and actionable strategies to enhance your molding processes, so you can tackle these challenges head-on.

Managing high material volumes is a major challenge.True

Handling large volumes requires advanced equipment and careful planning.

Increased cooling times do not affect production efficiency.False

Longer cooling times slow down production cycles, reducing efficiency.

How Does Material Selection Impact Large-Scale Injection Molding?

Ever wondered how choosing the right material can make or break your injection molding project? Let me share some insights from my own journey.

Selecting appropriate materials in large-scale injection molding is essential for optimizing cost, speed, and quality, ensuring efficient mold performance, reducing cycle times, and improving product durability.

Close-up view of colorful plastic granules
Colorful Plastic Granules

The Role of Material Properties

Iโ€™ve learned that the key to successful molding starts with understanding material properties like tensile strength1, flexibility, and thermal resistance. There was a project I worked on that demanded high heat resistanceโ€”it was a real game-changer when we switched to polycarbonate. Suddenly, everything clicked into place.

  • Tensile Strength: A while back, I chose a material with high tensile strength for a project needing durabilityโ€”it was like giving the product a backbone.
  • Flexibility: I remember when opting for a more flexible material saved me from redesigning a brittle product.
  • Thermal Resistance: Once, I worked on a project where products faced extreme temperatures, and choosing the right thermal-resistant material made all the difference.

Cost and Efficiency Considerations

Balancing cost without sacrificing quality has been like walking a tightrope. Iโ€™ve found that while some materials are cheaper upfront, they can end up costing more in tooling or cycle times. Take polypropylene, for instanceโ€”itโ€™s been my go-to for keeping costs low without compromising too much.

Material Cost Tooling Impact
Polypropylene Low Minimal
Polycarbonate Medium Moderate
PEEK High Significant

Environmental and Regulatory Factors

The shift towards sustainability has been a fascinating journey. Biodegradable plastics have become popular, and understanding regulatory requirements, especially in electronics, has been crucial. Ensuring compliance with standards like RoHS has become second nature.

Impact on Product Design

Material choice can dramatically influence design decisions. Once, I opted for glass-filled nylon2 because its strength-to-weight ratio was perfect for a lightweight structure I was designing. Plus, the color and texture of materials can make or break the aesthetic appeal.

Example: Consumer Electronics

In consumer electronics, aesthetics and performance are everything. Iโ€™ve had to choose materials like ABS to meet consumer expectations without breaking the bank. Understanding how materials behave during molding helps me ensure that my designs are not only functional but also visually appealing.

Polycarbonate offers high thermal resistance.True

Polycarbonate is known for its ability to withstand high temperatures.

PEEK is a low-cost material in injection molding.False

PEEK is considered a high-cost material due to its superior properties.

How Does Mold Design Impact Manufacturing Large Parts?

Ever wonder what goes into creating those massive, perfectly shaped parts we see every day?

Mold design is essential for manufacturing large parts, focusing on precision, defect reduction, and efficiency. Important aspects include material selection, cooling system design, and part geometry comprehension.

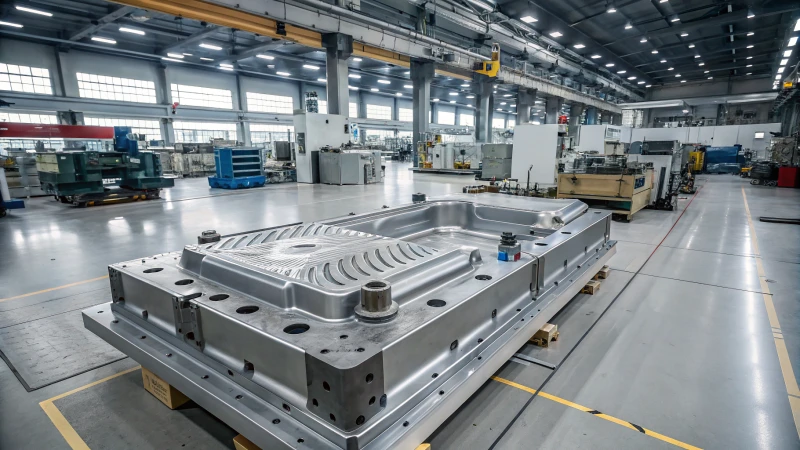

A large industrial mold on a factory floor
Industrial Mold in Factory

Importance of Material Selection

I remember the first time I faced a material selection challenge. It was during a project where we needed to manufacture a large, intricate component for an electronics device. Choosing the right material was like solving a puzzle. You need something that can withstand the high temperatures and pressures of the injection process. Materials like steel and aluminum often come to mind because of their durability and heat conduction.

Material Durability Heat Conductivity
Steel High Medium
Aluminum Medium High

Cooling Systems in Mold Design

I canโ€™t stress enough how vital efficient cooling systems are. I learned this lesson firsthand when a project of mine experienced warping issues due to improper cooling. It was a nightmare! With well-designed cooling channels, you can cut down cycle times and enhance part quality. Itโ€™s about balancing speed and precision to prevent those unwanted defects. Leveraging advanced cooling technologies3 has been a game-changer in my projects.

Part Geometry Considerations

The shape of the parts we create can turn into quite the adventure. Iโ€™ve worked on designs that required multiple mold components because of their complexity. Thatโ€™s when understanding elements like draft angles and wall thickness becomes critical. They help in minimizing material waste and preventing defects, ensuring that the finished product4 meets the highest standards.

Integration of CAD in Mold Design

Using CAD software feels like having a superpower. It allows me to create precise molds tailored to specific needs, and making adjustments is a breeze. Once, I faced a design hiccup, but thanks to CAD, I could simulate different scenarios and fix the issue before it became a costly mistake. With my proficiency in CAD, optimizing designs to improve production outcomes5 has become second nature.

By delving into these aspects, Iโ€™ve found that manufacturers can achieve efficient and effective production processes for large parts. Itโ€™s about combining technical knowledge with practical insights to create something remarkable.

Steel molds have higher heat conductivity than aluminum.False

Steel has medium heat conductivity compared to aluminum's high.

CAD tools help predict potential mold design issues.True

CAD tools allow simulations to foresee and adjust design flaws.

Why is cooling time a significant factor in large-scale molding?

Ever wondered how a tiny detail like cooling time can make or break a project in large-scale molding?

Cooling time in large-scale molding is vital for ensuring part quality, maintaining material properties, and optimizing production efficiency, crucial for dimensional accuracy and production speed management.

A large industrial molding machine operating in a factory
Industrial Molding Machine

The Role of Cooling Time in Mold Quality

In large-scale molding, cooling time plays a pivotal role in determining the final quality of molded products. Iโ€™ve seen firsthand how improper cooling can lead to defects such as warping or internal stresses, which was a real nightmare on one project. I had to go back to the drawing board to ensure everything met the high standards expected in our industry. This is particularly important for designers like Jacky, who are tasked with creating aesthetic and functional6 components that meet stringent industry standards.

Impact on Material Properties

The cooling phase affects the crystallinity of plastic materials, influencing mechanical properties. In my journey through mold design, Iโ€™ve learned that a rapid cooling rate can result in high residual stresses, leading to potential failure during useโ€”literally cracking under pressure! Therefore, understanding the relationship between cooling time and material behavior is essential for optimizing mold design.

Dimensional Accuracy and Shrinkage

Dimensional accuracy can make or break a design, especially in precision-dependent industries like electronics. Plastics tend to shrink as they cool, and uneven cooling can cause differential shrinkage, affecting the final dimensions of the product. Implementing a uniform cooling strategy is crucial to achieving precise tolerances; itโ€™s not just a technical requirement but also a testament to my commitment to quality.

Production Efficiency and Costs

Cooling time also impacts production efficiency and costs. One thing I often juggle is the trade-off between reducing cycle times and maintaining quality. Shorter cooling times can significantly reduce cycle times, thereby increasing throughput and reducing costs. However, this must be balanced with maintaining quality to avoid rework or rejectionโ€”a challenge I faced when tempted by tight deadlines. Itโ€™s all about finding that sweet spot where efficiency meets excellence, often using advanced CAD7 software tools that simulate different cooling scenarios.

Tools and Techniques for Optimizing Cooling Time

To manage cooling effectively, designers can utilize various tools and techniques such as mold flow analysis or thermal imaging. These tools provide insights into how heat dissipates throughout the mold and help identify areas where cooling might be optimized. Trying out techniques like conformal cooling channels has proven beneficial in enhancing efficiency.

Cooling Technique Benefits
Conformal Cooling Improved heat transfer
Baffle Inserts Targeted cooling areas
Turbulent Water Flow Faster heat dissipation

Incorporating these strategies not only boosts quality control but also ramps up production rates in large-scale molding setups.

Cooling time affects the crystallinity of plastics.True

Cooling time influences crystallinity, impacting mechanical properties.

Shorter cooling times always improve product quality.False

Shorter cooling can cause defects, needing a balance with quality.

How Can You Maintain Quality and Precision in Big Part Production?

Ever tried to get that perfect cup of coffee only to mess it up? Imagine that on a massive scale with big parts in manufacturing!

To ensure quality and precision in big part production, employ robust quality control, advanced technologies, skilled training, and continuous improvement. Regular equipment calibration and production monitoring are key for consistent accuracy.

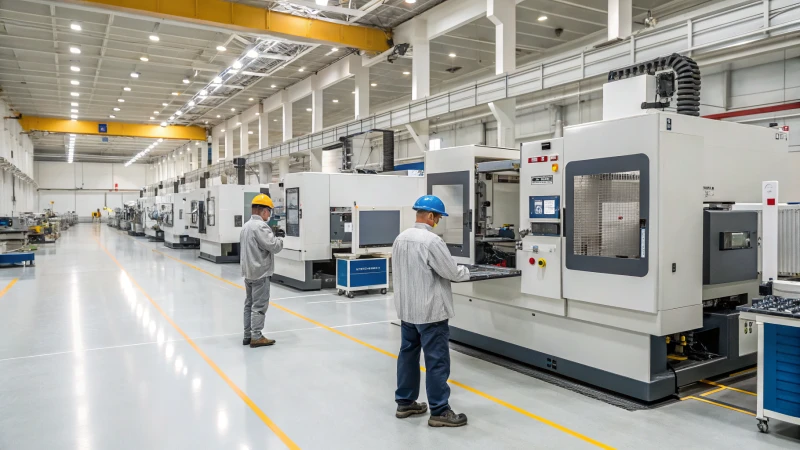

Workers in a high-tech industrial facility
Industrial Manufacturing Facility

Quality Control Measures

Iโ€™ve always believed that a strong foundation leads to a sturdy building, and the same goes for manufacturing. Implementing rigorous quality control measures is fundamental. In my experience, establishing comprehensive protocols such as regular inspections, testing, and statistical process control8 can make all the difference. Iโ€™ve seen the impact of using inspection tools like CMMs firsthandโ€”they ensure parts meet specifications without a hitch.

Advanced Manufacturing Technologies

Remember when 3D printers seemed like something out of a sci-fi movie? Now, theyโ€™re an essential part of my toolkit. By leveraging cutting-edge technologies like CNC machining and 3D printing, Iโ€™ve been able to achieve high precision and flexibility, enabling accurate production of complex parts. Incorporating automation systems9 has also enhanced productivity and precision by reducing human errorโ€”think of it as having an extra pair of super-steady hands.

Skilled Workforce

Investing in my teamโ€™s skills has always paid off. Just like how an orchestra needs its musicians to be in sync, my workforce needs top-notch training programs to efficiently manage machinery and processes. A knowledgeable team consistently ensures high standards are met, like when we organized workshops focusing on precision machining techniquesโ€”itโ€™s amazing what a little extra training can do.

Continuous Improvement Methodologies

Adopting methodologies like Six Sigma or Lean Manufacturing has been a game-changer for me. These approaches focus on reducing waste and improving efficiencyโ€”ensuring a high level of quality feels like hitting a home run every time. Hosting Kaizen10 events has fostered a culture of continuous improvement within my team, encouraging innovation and excellence.

Strategy Benefit
Quality Control Ensures product consistency
Advanced Tech Increases precision
Skilled Workforce Reduces errors
Continuous Improvement Enhances efficiency

Equipment Calibration and Monitoring

Regular calibration of machinery is like tuning a guitarโ€”essential for maintaining accuracy. I always implement a schedule for equipment checks to prevent deviations, just like how I set reminders for important tasks. Monitoring systems track performance in real-time, allowing for swift corrective actions if neededโ€”itโ€™s like having a safety net.

By focusing on these areas, manufacturers can effectively maintain quality and precision in large-scale production. Ensuring each part meets the desired standards not only improves customer satisfaction but also boosts competitiveness in the market. Itโ€™s all about hitting that perfect note every time.

CNC machining increases production precision.True

CNC machining offers high precision by automating complex part production.

Six Sigma reduces waste in manufacturing.True

Six Sigma focuses on reducing defects and waste, enhancing efficiency.

What Are the Cost Implications of Injection Molding Large Parts?

Ever found yourself deep in thought, wondering how to bring your design dreams to life without breaking the bank? Letโ€™s dive into the world of injection molding large parts and uncover what it really takes to make it happen.

The cost of injection molding large parts depends on tooling expenses, material selection, machine size, and cycle time, which designers must assess for cost-effective production.

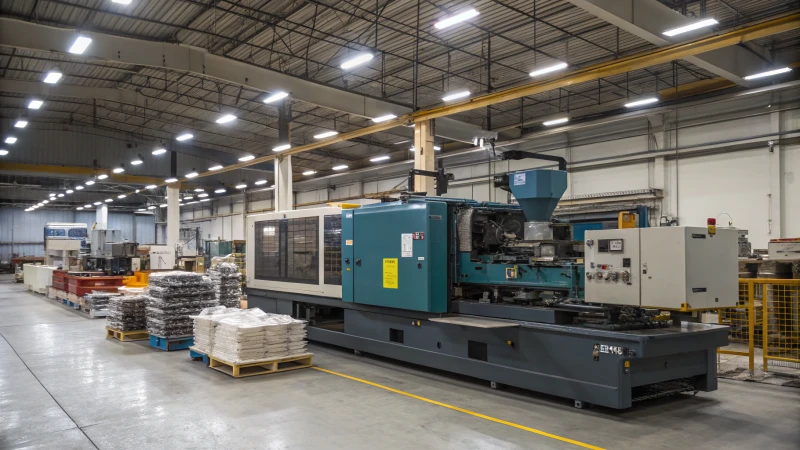

Large injection molding machines in an industrial setting
Industrial Injection Molding Machines

Tooling Expenses: A Major Investment

Picture this: youโ€™re sitting in a meeting, and the big topic on the table is tooling costs. I remember my first project where I had to justify spending tens of thousands on a mold. It was daunting, but essential. For large parts, the molds are beastsโ€”complex and costly. The tooling costs11 can range from tens of thousands to hundreds of thousands of dollars, influenced by the partโ€™s complexity and the quality requirements.

Hereโ€™s a glimpse of what the breakdown might look like:

Cost Component Estimated Range
Mold Design $5,000 โ€“ $15,000
Mold Fabrication $20,000 โ€“ $100,000+
Maintenance $1,000 โ€“ $5,000 annually

Material Selection and Costs

Choosing the right material feels like selecting the perfect wine for dinner. It must complement and enhance the experience. For us in design, it affects the performance and price of the final product. Thermoplastics are our go-to, but each projectโ€™s demands can lead us to pricier materials based on application requirements12.

Machine Size and Cycle Time

Larger parts need larger machinesโ€”those big, impressive ones that make you feel like youโ€™re part of something monumental. Theyโ€™re more expensive to run and impact cycle times. I remember tweaking designs late into the night, trying to shave off seconds per cycle. Every bit counts when youโ€™re trying to minimize expenses.

Economies of Scale: Is Bigger Better?

In my experience, scaling up production can be a double-edged sword. Yes, larger runs cut down per-unit costs, but they also demand hefty initial investments. We always have to weigh these benefits against the initial investment13 required for large parts.

To sum it up, knowing these cost structures helps meโ€”and anyone in my shoesโ€”make smarter choices. Itโ€™s all about ensuring our designs remain high-quality yet affordable. Tools like cost calculators and insights from seasoned manufacturers are lifesavers when optimizing these processes.

Tooling costs for large parts can exceed $100,000.True

Complex molds for large parts often cost over $100,000 due to design and fabrication.

Thermoplastics are rarely used in injection molding.False

Thermoplastics are commonly used in injection molding due to their versatility and performance.

How do advanced technologies enhance large-scale injection molding?

Imagine walking through a bustling factory where machines hum in harmony, seamlessly crafting products with a precision that feels almost magical.

Advanced technologies like AI, IoT, and 3D printing enhance large-scale injection molding by boosting efficiency, precision, and sustainability, transforming traditional processes into agile, intelligent systems, reducing waste, and improving product quality.

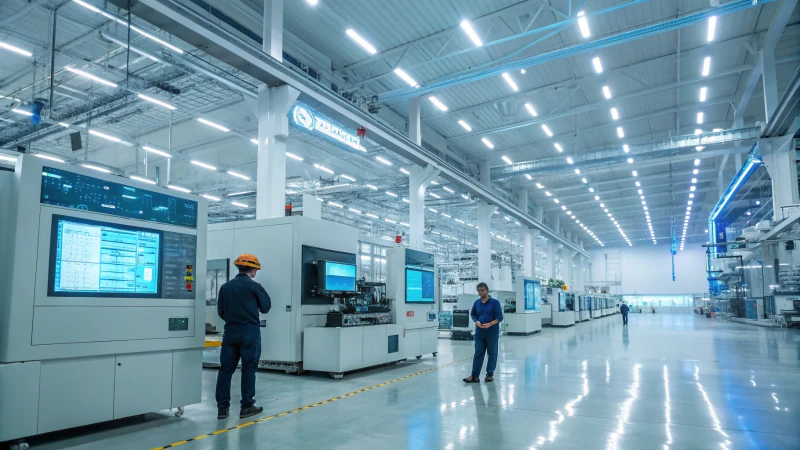

A modern injection molding factory with advanced technology and bright lighting
Modern Injection Molding Factory

Leveraging Artificial Intelligence (AI)

Iโ€™ve always been fascinated by how Artificial Intelligence can predict potential issues before they even occur. In injection molding, AI algorithms help me foresee defects and tweak mold designs on the fly. This ability not only improves the final productโ€™s quality but also significantly cuts down waste.

AI also helps in real-time monitoring of production parameters14, ensuring consistency and precision in each batch. Fewer hiccups meant more efficiency and less downtime, which was a game-changer for us.

The Role of Internet of Things (IoT)

Integrating IoT into our operations felt like unlocking a new level of efficiency. Imagine being able to monitor the temperature, pressure, and cycle times from anywhereโ€”itโ€™s like having an assistant who never sleeps! IoT devices collect this data and help us anticipate preventative maintenance15, keeping our machines running smoothly and extending their lifespan.

Moreover, IoT facilitates remote monitoring, enabling operators to manage production lines from anywhere. This flexibility is particularly valuable in large-scale operations.

Benefits of IoT Description
Data Collection Monitors production parameters in real-time
Remote Access Allows control from any location
Maintenance Predicts equipment needs to reduce downtime

I remember once accessing our production line remotely while on a weekend getaway. The ability to oversee things without being on-site was liberating. For someone managing large-scale operations, this flexibility is invaluable.

3D Printingโ€™s Impact

3D printing has opened up a world of possibilities for prototyping and mold making. I love how it lets me quickly iterate designs, speeding up the time-to-market for new products. Producing complex geometries that were previously unthinkable becomes simple, which is a huge win for creativity.

This technology also enables the creation of customized molds16 for small batches, perfect for testing without hefty production costs. This not only enhances flexibility but also fuels innovation in mold design.

Sustainability Through Technology

Sustainability has become a crucial part of our manufacturing process. Technologies like AI and IoT help reduce waste and energy consumption by automatically optimizing resource use. Smart sensors adjust production settings on-the-fly, saving materials and energy.

Additionally, integrating recycled materials into our processes not only lowers costs but also appeals to eco-conscious consumers. Embracing these technologies is essential for staying ahead in the evolving injection molding landscape.

As technology continues to advance, its role in streamlining production and boosting product quality is undeniable. For me, keeping pace with these innovations isnโ€™t just about staying competitiveโ€”itโ€™s about pushing boundaries and creating something extraordinary.

AI reduces waste in injection molding.True

AI predicts defects and optimizes mold design, enhancing product quality.

IoT increases downtime in production lines.False

IoT minimizes machine failures through real-time monitoring and maintenance.

Conclusion

Injection molding large-scale parts presents challenges like material management, cooling times, and precision. Understanding these factors is crucial for optimizing production efficiency and maintaining quality.


  1. Explore detailed mechanical properties to understand how they affect product design and performance in molding applications.ย โ†ฉ

  2. Discover why glass-filled nylon is preferred in applications requiring strength without adding weight.ย โ†ฉ

  3. Learn about modern cooling technologies that enhance efficiency and part quality in injection molding processes.ย โ†ฉ

  4. Understand how part geometry affects mold design choices, impacting overall product quality and efficiency.ย โ†ฉ

  5. Discover how CAD software aids in precise mold design, allowing for modifications and simulations to optimize production.ย โ†ฉ

  6. Exploring this link provides insights into balancing aesthetics with functionality in product design, enhancing both appeal and usability.ย โ†ฉ

  7. Discovering advanced CAD tools aids in simulating and optimizing molding processes, leading to improved efficiency and precision.ย โ†ฉ

  8. Learn about statistical process control to enhance your manufacturing quality control methods.ย โ†ฉ

  9. Discover how automation can increase precision and reduce errors in manufacturing.ย โ†ฉ

  10. Understand how Kaizen events foster continuous improvement and boost efficiency.ย โ†ฉ

  11. Explore this link for a deeper understanding of how tooling expenses affect large part production.ย โ†ฉ

  12. This link provides insight into how material choices impact cost and performance in injection molding.ย โ†ฉ

  13. Learn how economies of scale can influence the cost-effectiveness of injection molding large parts.ย โ†ฉ

  14. Discover how AI enhances real-time monitoring for improved efficiency and quality control in injection molding.ย โ†ฉ

  15. Explore how IoT technology aids in predictive maintenance, reducing downtime and prolonging machine life.ย โ†ฉ

  16. Learn about the benefits of using 3D printing for creating customized molds efficiently.ย โ†ฉ

Weโ€™ve also created a quiz to challenge: Challenges of Injection Molding Large-Scale Parts
